QILI SMN-R full intelligent reflectance instrument/hiding power instrument

SE
QILI SMN-R full intelligent reflectance instrument/hiding power instrument measurement range 0~100%, resolution 0.1, repeability 0.2%, reproducibility 0.5%, projection angle 45 °, measurement aperture 12 * 17mm ellipse, measurement area 10 * 20mm
$623.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con

QiLi SMN-R ReflectanceSPEC

QiLi SMN-R ReflectanceDetails

QiLi SMN-R ReflectancePacking list

SKU
NB027931
Indication interval
0~100
Resolution
0.1
Repeatability
0.2%
Reproducibility
0.5%
irradiation conditions
45°
Measurement aperture
12 * 17Mm Ellipse
Measurement aperture
10*20mm
statistical function
Up to 10 sets of data
Power
1 AA battery for measurement 50,000 sets of data
Dimensions
114*32*64mm
Net Weight
180g
SMN-R
Reflectance

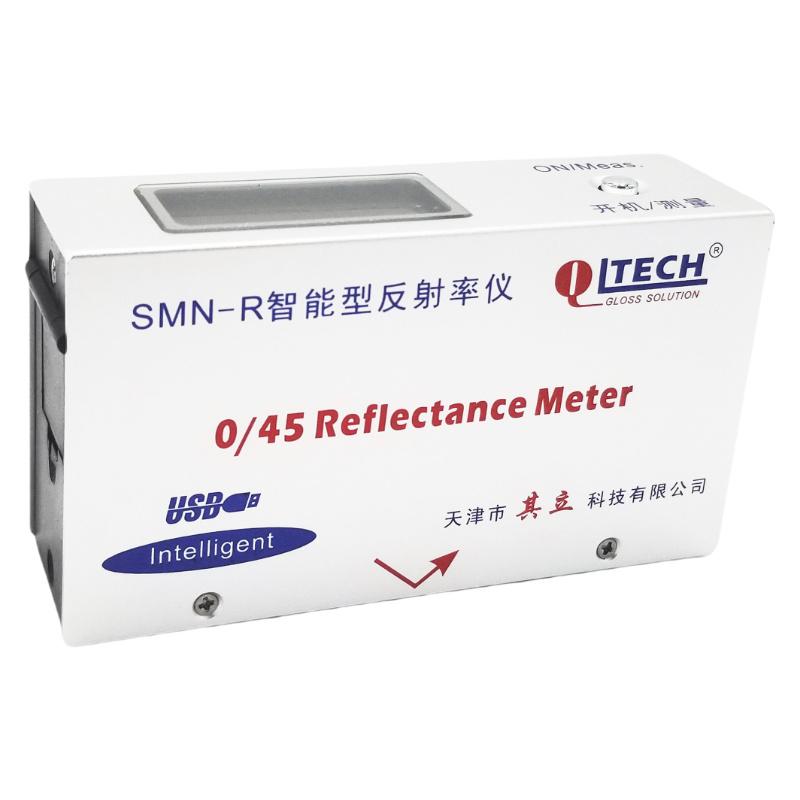

QILI SMN-R full intelligent reflectance instrument/hiding power instrument Picture

The MN-R fully intelligent reflectance meter is a product developed by our company. It can perform 45/0 reflectivity and hiding power tests, and complies with standard international standards: ISO 2814, 6504; BS 3900-D4, D7; ASTM E97 , E1347, D4214; ASTM D2805, D589 and national standards GB/T13452.3-92, GB9270-88, GB5211.17-88

use

Reflectance measurement: the color depth of paint, ink, and coating

• Degree of fading of textiles and plastics

• Chalking of paint

• Effectiveness of detergents and bleaches

• Whiteness of recycled paper

• Cleanliness and degree of oxidation of metal surfaces

   Hide Power Measurement: Hide Power of Paints, Inks and Coatings

• Transparency of plastic film

• Opacity of paper

Features

•  Automatic calibration; automatically determine zero point and whiteboard standard

• Ready to test, one-button startup/measurement

• Equipped with simple measurement mode and statistical measurement mode

• Automatic calculation of reflectance values

• Foolish measurement, automatically correcting black and white work plate values

• USB interface, data transmission software technical parameters:

FAQ
QI want to measure the reflectance and hiding power of paints, what instrument should I use?
A SMN-R reflectance instrument is specially used for reflectance and hiding power testing of paints, inks, coatings, in line with ISO, ASTM and other international standards, simple operation, one-click measurement, automatic calculation of values, very suitable for quality control in paints industry.
QSpinning & weaving fading and paper whiteness, does this instrument work?
A Yes. The QILI SMN-R reflectance meter is widely used in Spinning & Weaving product fading degree, recycled paper whiteness and other scenarios. It uses a 45/0 Optical inspection structure to accurately measure surface reflection characteristics, help you evaluate material Color change and whiteness indicators. Repeatability.
QDo you have the reflectance required by the ASTMD2805 standard?
A This SMN-R reflectance instrument will do.
