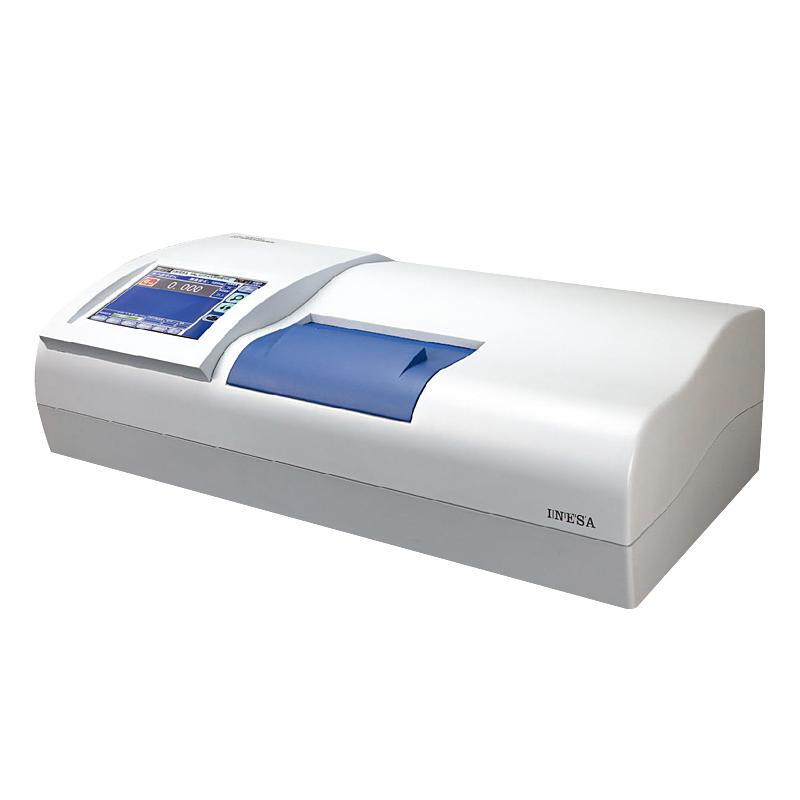

INESA INESA SGW-532 Automatic High Speed Polarimeter

It has all the functions of SGW-531, built-in temperature control device, supports heating and chilling down, adopts LED light source, avoids frequent replacement of bulbs, has high accuracy measurement (repeability ≤ 0.002 °) and fast detection function (average 26 seconds can complete 6 measurements).

$5294.00/set

PromotionLoading...

Coupon

Model：

SGW-532

Certificate

INESA

Contact

Details SPEC Con CAT

INESA SGW-532 Automatic (High Speed) PolarimeterSPEC

INESA SGW-532 Automatic (High Speed) PolarimeterDetails

INESA SGW-532 Automatic (High Speed) PolarimeterPacking list

SKU: NB027934

Measurement project: Optical rotation, specific rotation, concentration, sugar content

Measuring method: 30 kinds

Light source: Light Emitting Diode (LED) + Interference filter

Working Wavelength: 589Nm (Sodium D Light spectrum)

Measurement range: +/- 90 ° (optical rotation) +/- 259 ° Z (sugar content)

minimum reading: 0.001°

Precision: Level 0.01

relative error: ±0.004°

Repeatability: ≤0.002°

Zero Repeatability: 0.001°

minimum transmittance of sample: 0.1%

Response speed (full scale): 8 °/sec

Measurement time: It can be measured 6 times in an average of 26 seconds

temperature control: Temperature controlled Peltier (built-in)

Display range: 0-100℃

Temperature control range: 10-50℃

Temperature Precision: ±0.2℃

monitor: 8-Inch color dot matrix touch LCD display

Calibration method: Automatic calibration

Data storage: 10000 groups

Communication interface: USB/dedicated printer/U disk

Standard testtube: Ordinary type 100/200mm100mm temperature control type

Testtube size: 50Mm micro type, 200mm temperature control type (optional)

Precision: Level 0.01

Power Supply: 220V±22V，50Hz±1Hz

Dimension: 702*376*240mm

Net Weight of instrument: 21kg

SGW-532

Automatic (High Speed) Polarimeter

Features

The SGW-531 automatic (high-speed) polarimeter uses a light-emitting diode as the light source, which avoids the trouble of frequent replacement of sodium lamps. The large-screen LCD display of the instrument operation interface is fast, stable and reliable. It can measure optical rotation and sugar content at a large angle. The number of measurements can be set, the average value is calculated, and the instrument is silent.

In addition to the above functions, the SGW-532 automatic polarimeter has a built-in temperature control device, which has heating and cooling functions, and can use a temperature-controlled test tube to control the temperature of the sample. Equipped with a variety of communication interfaces, data can be stored, printed, multi-point calibration, in line with GMP requirements.
