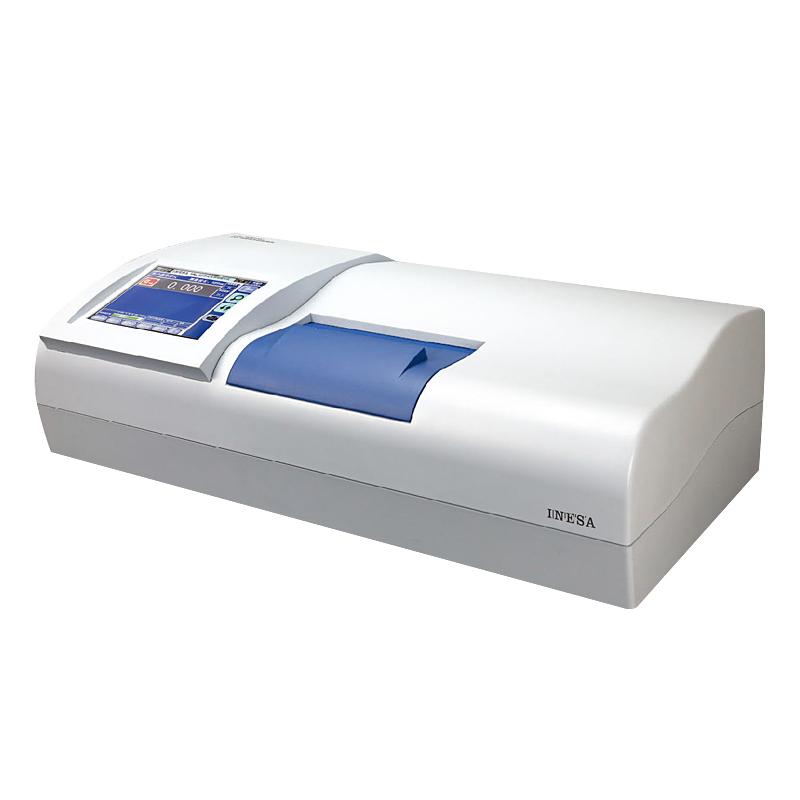

INESA INESA SGW-531 Automatic High Speed Polarimeter

Adopt LED light source, large LCD display, support optical rotation, sugar content and other measurements. With fast measurement and high accuracy (repeability ≤ 0.002 °). Silent design, can store 10000 sets of data, support multi-point auto calibration, and provide USB and other communication interfaces

$3279.00/set

PromotionLoading...

Coupon

Model：

SGW-531

Certificate

INESA

Contact

Details SPEC Con CAT

INESA SGW-531 Automatic (High Speed) PolarimeterSPEC

INESA SGW-531 Automatic (High Speed) PolarimeterDetails

INESA SGW-531 Automatic (High Speed) PolarimeterPacking list

SKU: NB027935

Measurement project: Optical rotation, specific rotation, concentration, sugar content

Measuring method: 30 kinds

Light source: Light Emitting Diode (LED) + Interference filter

Working Wavelength: 589Nm (Sodium D Light spectrum)

Measurement range: +/- 90 ° (optical rotation) +/- 259 ° Z (sugar content)

minimum reading: 0.001°

Precision: Level 0.01

relative error: ±0.006°

Repeatability: ≤0.002°

Zero Repeatability: 0.001°

minimum transmittance of sample: 0.1%

Response speed (full scale): 8 °/sec

Measurement time: It can be measured 6 times in an average of 26 seconds

temperature control: -

Display range: 0-100℃

Temperature control range: -

Temperature Precision: -

monitor: 8-Inch color dot matrix touch LCD display

Calibration method: Automatic calibration

Data storage: 10000 groups

Communication interface: USB/dedicated printer/U disk

Standard testtube: Ordinary type 100/200mm

Testtube size: 50Mm micro type (optional)

Precision: Level 0.01

Power Supply: 220V±22V，50Hz±1Hz

Dimension: 702*376*240mm

Net Weight of instrument: 21kg

SGW-531

Automatic (High Speed) Polarimeter

Features

The SGW-531 automatic (high-speed) polarimeter uses a light-emitting diode as the light source, which avoids the trouble of frequent replacement of sodium lamps. The large-screen LCD display of the instrument operation interface is fast, stable and reliable. It can measure optical rotation and sugar content at a large angle. The number of measurements can be set, the average value is calculated, and the instrument is silent.

In addition to the above functions, the SGW-532 automatic polarimeter has a built-in temperature control device, which has heating and cooling functions, and can use a temperature-controlled test tube to control the temperature of the sample. Equipped with a variety of communication interfaces, data can be stored, printed, multi-point calibration, in line with GMP requirements.

FAQ

QIs the price listed on the website the final cost for overseas purchases?

ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

QWhat is the specific process for purchasing the product?

AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

QWhat should I do if the instrument I purchase needs repair?

AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
