INESA WRS-2C Melting point meter 360 ℃
SE
WRS-2C
INESA WRS-2C Melting point MeterSPEC
INESA WRS-2C Melting point MeterDetails
INESA WRS-2C Melting point MeterPacking list
- SKU
- NB027948
- Temperature range
- RT+~360℃
- Measuring method
- automatic
- Temperature Resolution
- 0.1℃
- Heating rate
- Optional continuously between 0.1 and 20 ℃/min
- error of indication
- ±0.4℃(≤200℃)；±0.7℃(>200℃)
- Repeatability
- ±0.3℃(1℃/min)
- linear Heating rate error
- ±10％
- Experimental method storage Capacity
- 8 kinds
- processing power
- 3 sticks
- Capillary tubing size
- Outer diameter is 1.4mm; Inner diameter is 1.0mm; Length is 90mm.
- Sample height
- 3mm
- Data storage
- 1000 sets
- Printer model
- RD-TH32-SC (standard)
- Display mode
- 7-Inch color LCD touch screen
- Calibration method
- Multipoint calibrated
- Interface
- RS232/USB
- Power Supply
- 220V±22V 50Hz
- Dimension
- 360*290*170mm
- Net Weight of instrument
- 9kg
Features

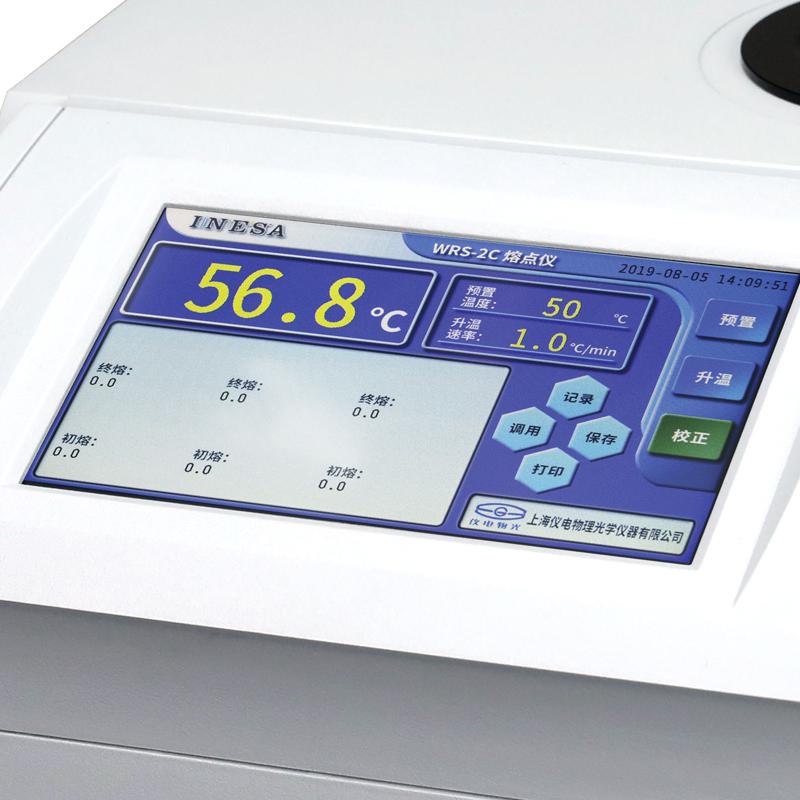

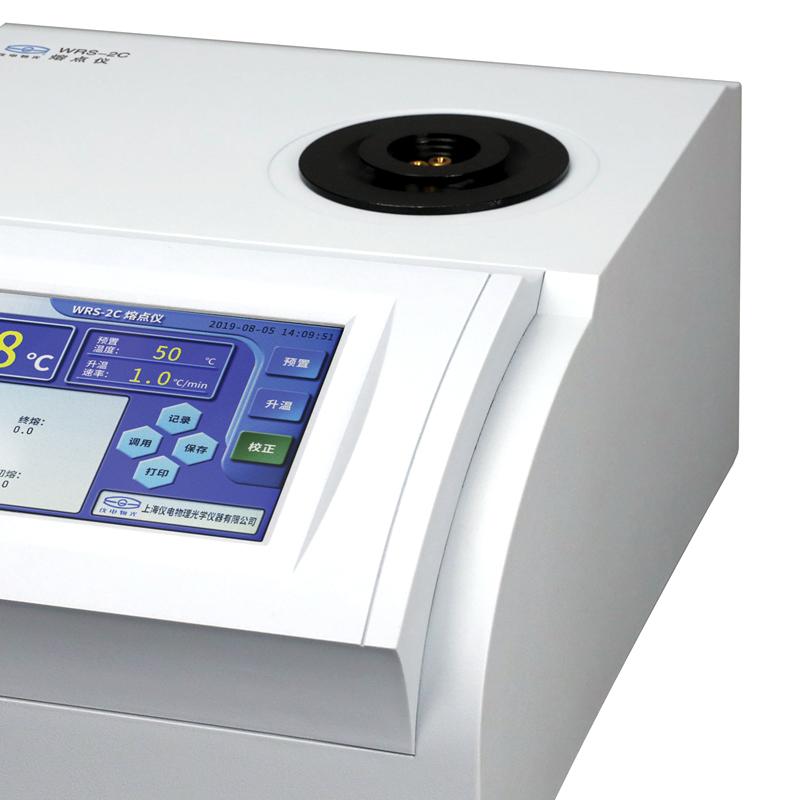

It adopts photoelectric automatic detection and color LCD touch screen display.
During the test process, the results of initial and final melting are automatically recorded, and the initial and final melting curves of the sample can be displayed at the same time.
The temperature control system adopts precision platinum resistance as the temperature detection element, and the PID adjustment and PWM temperature control technology are applied to improve the accuracy and reliability of melting point measurement.
The instrument has the function of automatically saving working parameters and storing measurement results, and can also be connected to the PC through the USB interface or RS232 interface, and can be connected to the printer.
The instrument uses a capillary tube specified by the pharmacopoeia as the sample tube.
