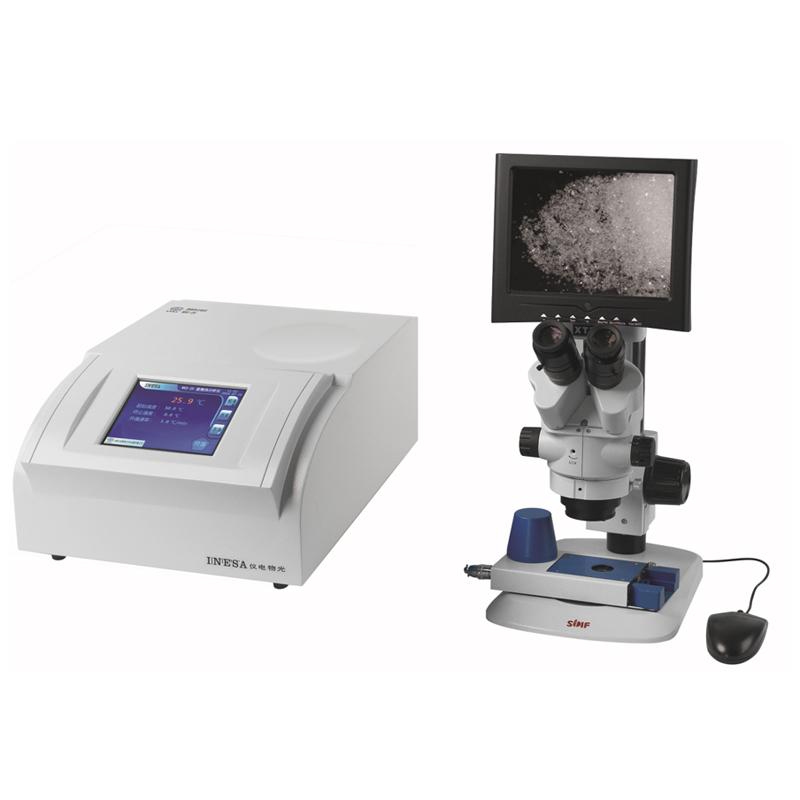

INESA WRX-2S Thermal Analyzer
SE
WRX-2S host
INESA WRX-2S host Thermal Microscope AnalyzerSPEC
INESA WRX-2S host Thermal Microscope AnalyzerDetails
INESA WRX-2S host Thermal Microscope AnalyzerPacking list
- SKU
- NB027955
- Temperature range
- RT+~300℃
- Measuring method
- Hot stage method, visual
- Temperature Resolution
- 0.1℃
- Heating rate
- Optional continuously between 0.1 and 20 ℃/min
- error of indication
- ±0.5℃(≤200℃)；±0.7℃(>200℃)
- Repeatability
- ±0.3℃(1.0℃/min)
- linear Heating rate error
- ±10%
- Data storage
- 3000 sets
- Printer model
- RD-TH32-SC (optional)
- Display mode
- 7-Inch color LCD touch screen
- Interface
- RS232/USB
- Slide thickness
- 0.8~1.2mm
- Slide thickness
- 0.17mm
- magnification
- ≥ 40X (depending on the configured Microscope)
- Power Supply
- 220V±22V 50Hz±1Hz
- Hot mirror table size
- 195mm×28mm×85mm
- Digital display unit size
- 290mm×170mm×360mm
- Net Weight of instrument
- 9Kg (without Microscope)
- XSP-8CA Trinocular Biological Microscope (Set 1)
- Electronic eyepiece with 1.30 million pixels
- XTZ-TV Video Continuous Diploidy Microscope (Set 2)
- With Display, continuous zoom
- 59XC Trinocular Polarizing Microscope (Set 3)
- Electronic eyepiece with 1.30 million pixels for polarized viewing
- 69XCL reflection Polarizing Microscope (Set 4)
- Electronic eyepiece with 1.30 million pixels for polarized viewing
Features
THE MICROTHERMAL ANALYZER IS SUITABLE FOR STUDYING AND MEASURING THE THERMAL PROPERTIES OF THE MEASURED SUBSTANCE UNDER THE MICROSCOPE, WHICH IS CALLED TOA ANALYSIS (THERMO-OPTICAL ANALYSIS). It can be used as a melting point determination for trace samples, the melting point of sectioned samples, and for bioengineering thermodynamic research. It has a wide range of uses in synthetic fibers, chemical industry, biology, mineralogy, criminology and other fields.
The instrument adopts PWM pulse program temperature control and color LCD touch screen display technology, and has 3000 sets of test data storage function.
The instrument is equipped with a USB interface to transmit data to a PC, and an RS232 interface can be connected to a micro printer (optional) for printing.
