RDS 34 #3/8 "Mayer Rods WFT 77.7μm Length 400mm

SE
Wire-wound, wet film thickness 77.7μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, hand width 50 + 50mm, material stainless steel, Wire diameter 0.86mm.
$161.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 34# 3/8" Applicator rod 3/8 "SPEC

RDS 34# 3/8" Applicator rod 3/8 "Details

RDS 34# 3/8" Applicator rod 3/8 "Packing list

SKU
NB000028
Production process
wire-wound
WFT
77.7μm
diameter
9.52mm
Total length
400mm
application width
300mm
Grip Width
50+50mm
material
stainless steel
Wire diameter
0.86mm
34# 3/8"
Applicator rod 3/8 "
Wire-wound, wet film thickness 77.7μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, hand width 50 + 50mm, material stainless steel, Wire diameter 0.86mm.

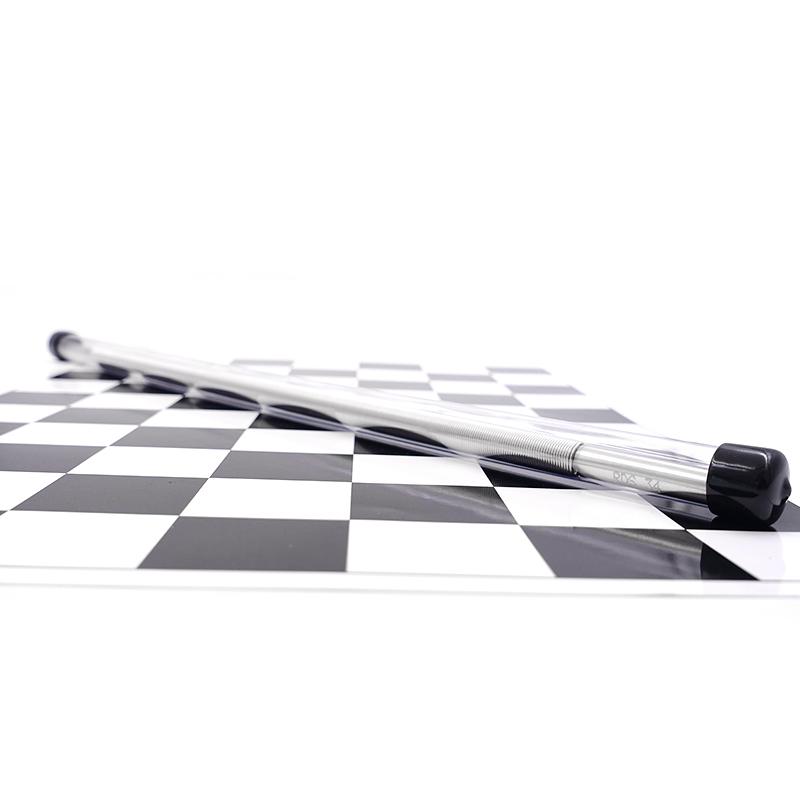

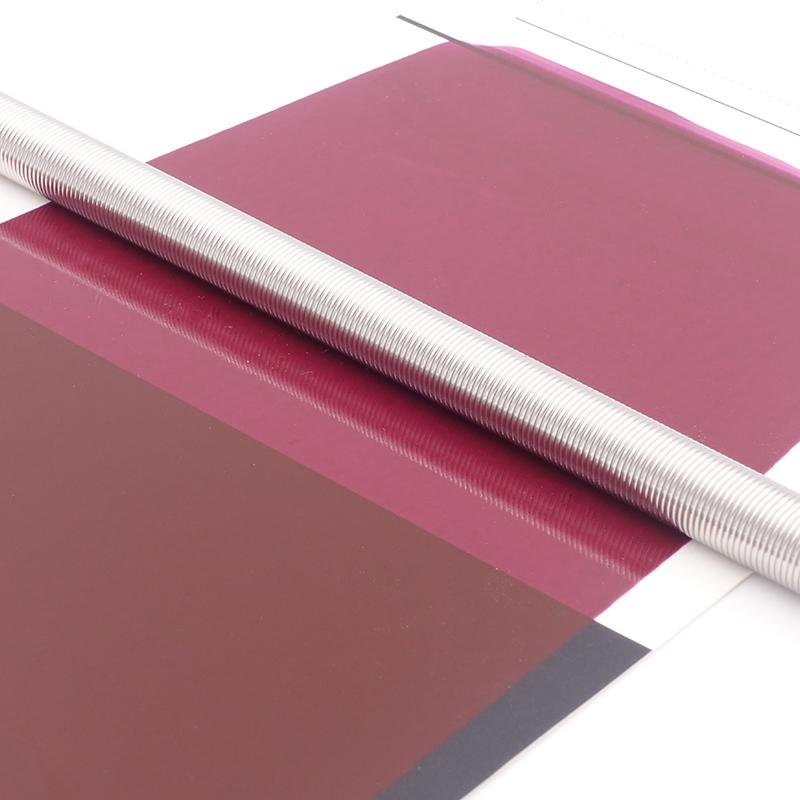

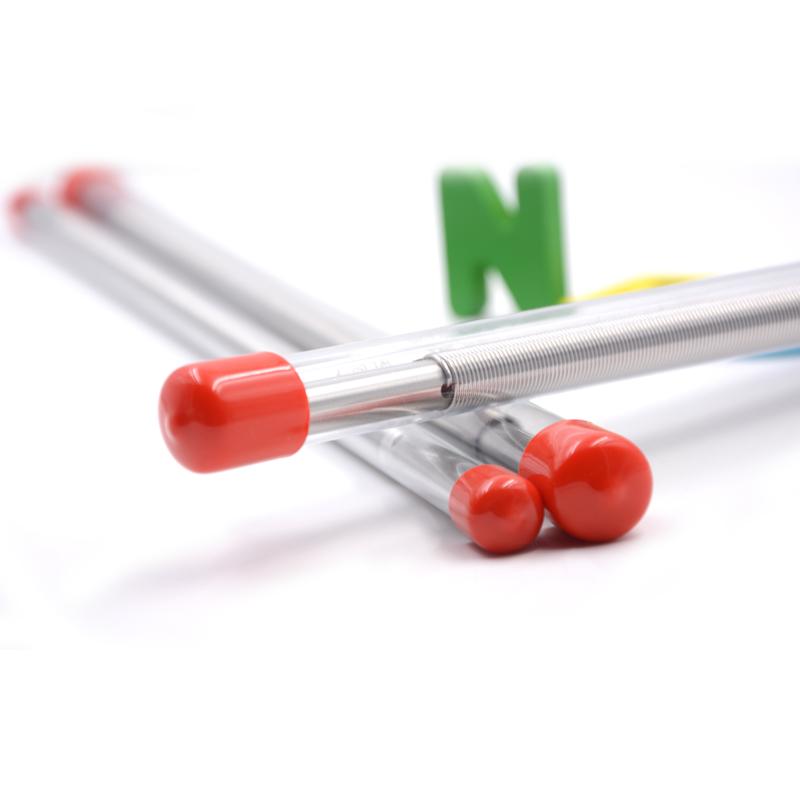

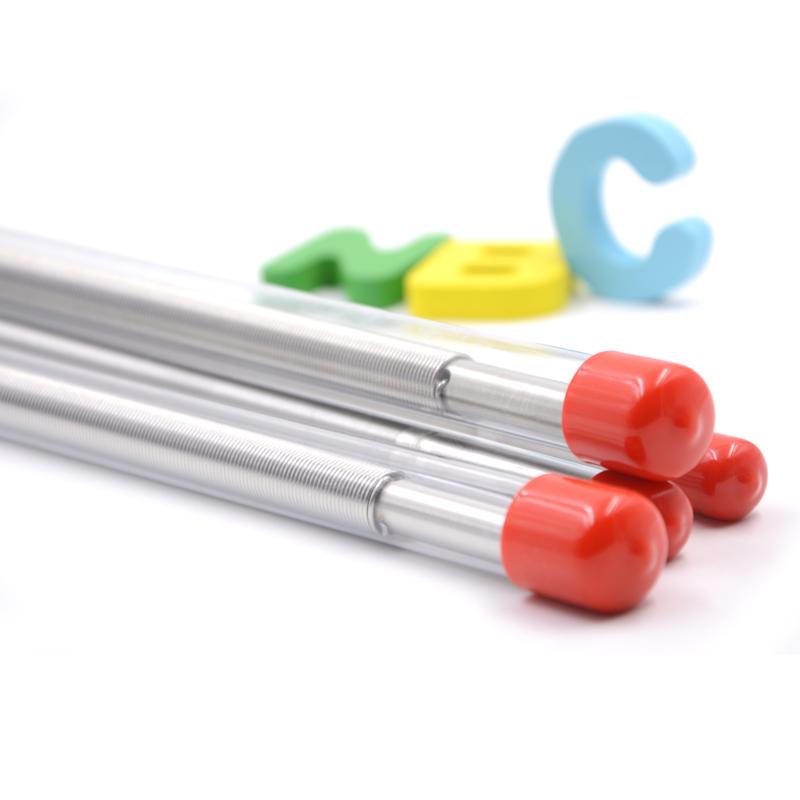

RDS 34 #3/8 "Mayer Rods WFT 77.7μm Length 400mm Picture

RDS coating Rods Figure 1

RDS coating Rods Figure 2

RDS coating Rods Figure 3

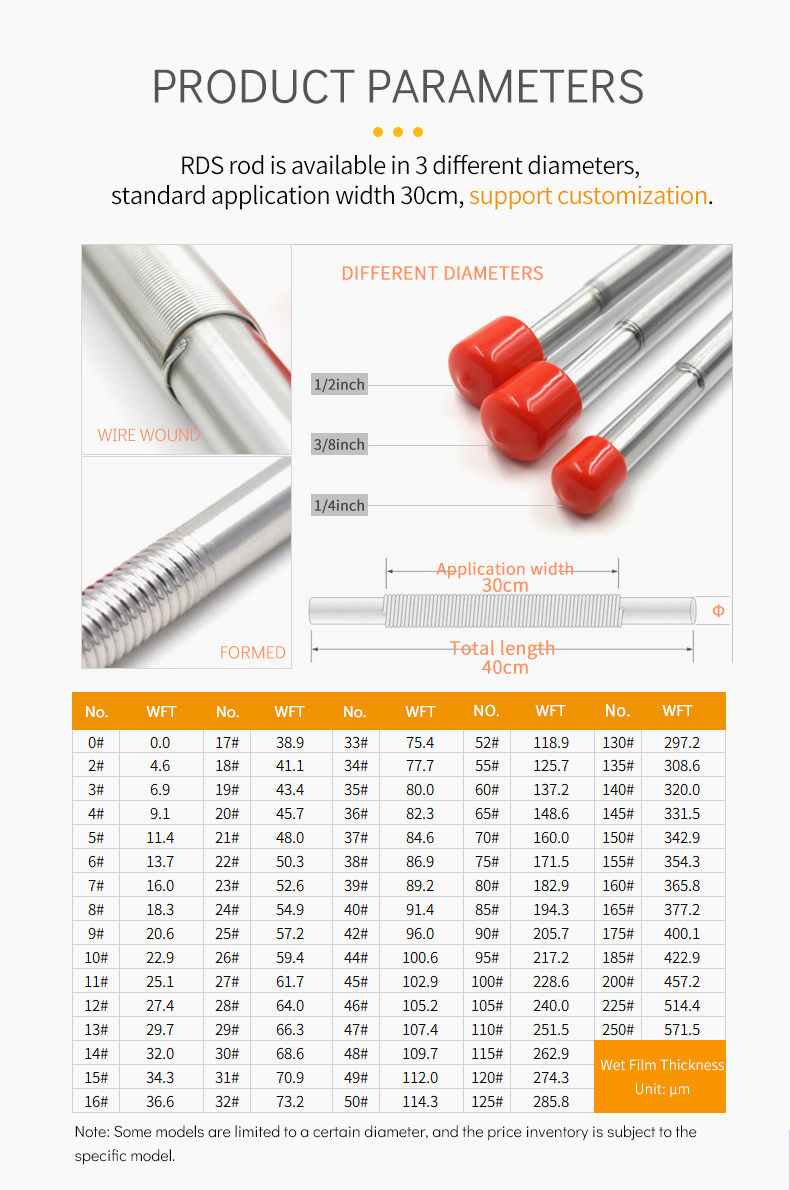

RDS coating Rods Figure 4

RDS coating Rods Figure 5

RDS coating Rods Figure 6

RDS coating Rods Figure 7

RDS coating Rods Figure 8

RDS coating Rods Figure 9

RDS coating Rods Figure 10



FAQ
QDoes RDS 34 #have a Spreader width of 35cm?
A Hello, the width of the RDS laboratory scraper Spreader is 30cm, and it needs to be customized if it exceeds 30cm.
QFor scraping Printing ink, is this 77.7μm RDS rod with a Spreader width of 30cm?
A Hello, yes, the total length of the rds bar is 40c, and the effective Spreader width is 30cm.
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
QCan this RDS Applicator rod correspond to GB/T13217.1?
A Yes, please refer to the NBchao standards page for specific standards.
