PERFECT PT-GD 200 Micrometer Applicator, effective application width 200mm

Baoda PT-GD adjustable fabricator is a Moulding device with adjustable film thickness, the effective application width is 200mm, and the thickness range of PT-GD film is 10-3000um.
Model：
Certificate
Contact
Details SPEC CAT
Similar products

Perfect PT-GD 200 Adjustable generatorSPEC

Perfect PT-GD 200 Adjustable generatorDetails

Perfect PT-GD 200 Adjustable generatorPacking list

SKU
NB028012
type
Adjustable
WFT
10~3000um
Application width
200mm
Accuracy
±2 μm
material
stainless steel
size
112*78*100mm
Drawdown blade unit spacing
10um
PT-GD 200
Adjustable generator

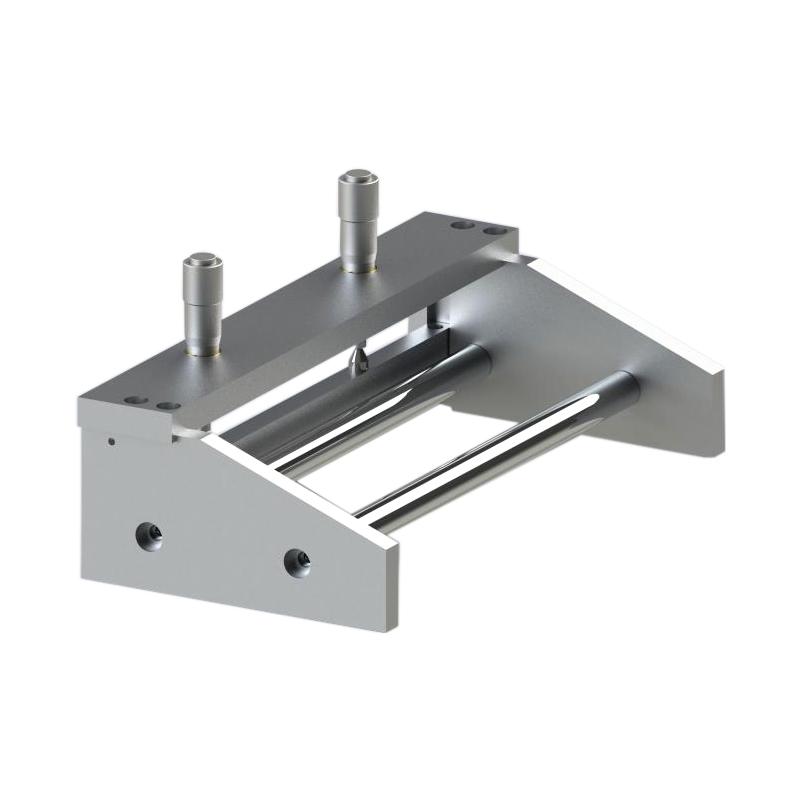

PERFECT PT-GD 200 Micrometer Applicator, effective application width 200mm Picture

Introduction

The PT-GD adjustable preparer, also known as the adjustable Film Applicator, is by adjusting the two differentiators above the Film Applicator, the lower scraper can be adjusted up and down to control the gap, that is, the thickness of the final coating. Suitable for research projects that accurately evaluate the nuances of film thickness.The PT-GD adjustable preparer is an optional accessory for the coater.

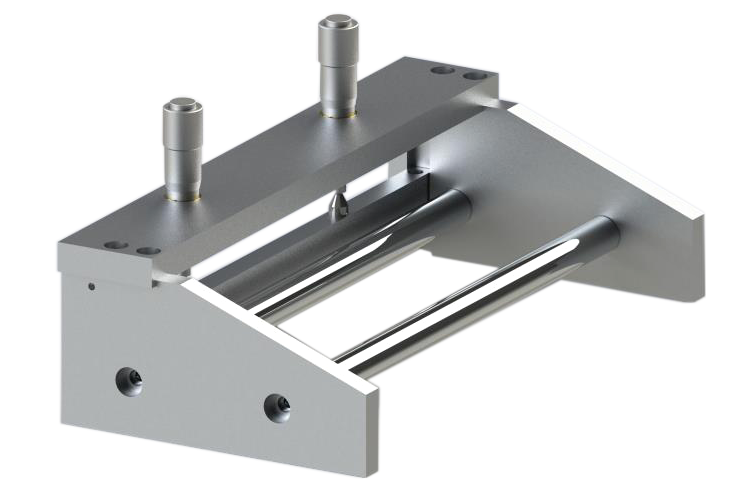

Baoda Instrument PT-GD 200 Adjustable Preparer Details Figure 1

Comparison of PT-GD series model parameters

Product modelPT-GD 55PT-GD 100PT-GD 150PT-GD 200PT-GD 250PT-GD 300
Effective Scraping Width (mm)55100150200250300
Scraper materialMade of stainless steel, the scraper can be lifted
Coating film thickness10-3000um adjustable
precision±2 μm
Size (W*D*H)mm 112*78*100112*123*100170*115*105 220*115*105270*115*105320*115*105
Scraper unit spacing10um


FAQ
QWhat material is this adjustable processor made of?
A Hello, it is made of stainless steel.
QDo you have the adjustable fabricator required by the JB/T7663.2 standard?
A This PT-GD 200 adjustable fabricator will do.
