PERFECT PT-GD 100 Adjustable Preparation, Effective application width 100mm

The effective application width of the PT-GD 100 adjustable processor is 100mm, the adjustable film thickness range is 10-3000um, and the film accuracy of the PT-GD 100 is +/- 2μm.
Model：
Certificate
Contact
Details SPEC CAT
Similar products

Perfect PT-GD 100 Adjustable generatorSPEC

Perfect PT-GD 100 Adjustable generatorDetails

Perfect PT-GD 100 Adjustable generatorPacking list

SKU
NB028014
type
Adjustable
WFT
10~3000um
Application width
100mm
Accuracy
±2 μm
material
stainless steel
size
112*78*100mm
Drawdown blade unit spacing
10um
PT-GD 100
Adjustable generator

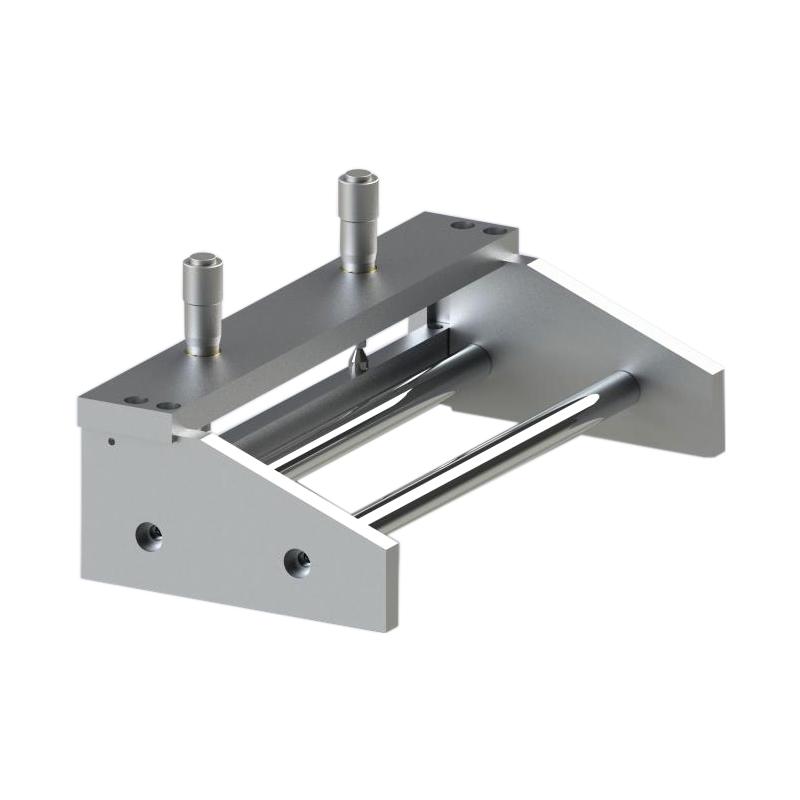

PERFECT PT-GD 100 Adjustable Preparation, Effective application width 100mm Picture

Introduction

The PT-GD adjustable preparer, also known as the adjustable Film Applicator, is by adjusting the two differentiators above the Film Applicator, the lower scraper can be adjusted up and down to control the gap, that is, the thickness of the final coating. Suitable for research projects that accurately evaluate the nuances of film thickness.The PT-GD adjustable preparer is an optional accessory for the coater.

Baoda Instrument PT-GD 100 Adjustable Preparer Details Figure 1

Comparison of PT-GD series model parameters

Product modelPT-GD 55PT-GD 100PT-GD 150PT-GD 200PT-GD 250PT-GD 300
Effective Scraping Width (mm)55100150200250300
Scraper materialMade of stainless steel, the scraper can be lifted
Coating film thickness10-3000um adjustable
precision±2 μm
Size (W*D*H)mm 112*78*100112*123*100170*115*105 220*115*105270*115*105320*115*105
Scraper unit spacing10um
