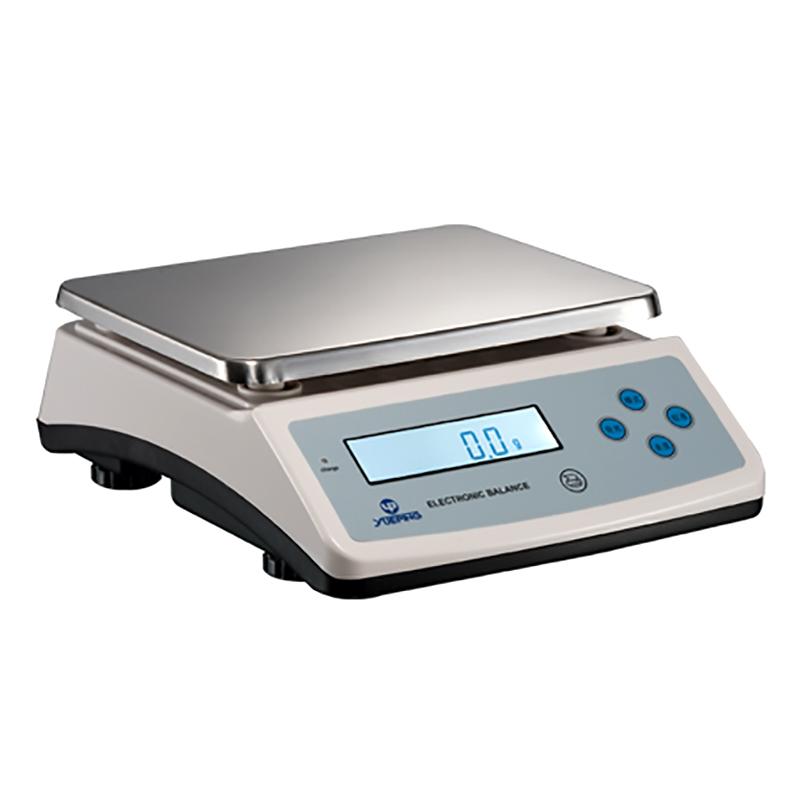

YUEPING YP-200001 Experimental Electronic Balance 20000g/100mg
SE
YP-200001
YuePing YP-200001 Electronic BalanceSPEC
YuePing YP-200001 Electronic BalanceDetails
YuePing YP-200001 Electronic BalancePacking list
- SKU
- NB028025
- Weighing range
- 0~20000g
- Readability
- 100mg
- Adjustment
- Internal calibrated
- Pan Size
- 255*190mm
- Power
- AC 220V 50Hz ， DC 6V~9V
- Net Weight
- 3.2k
- Dimensions
- 300*120*160mm
- Packaging Dimensions
- 356*310*165mm
- Interface
- RS232C output interface
- monitor
- LCD backlit display
- Operating temperature
- 5℃~35℃
- Relative Humidity
- 50~85%
Introduction

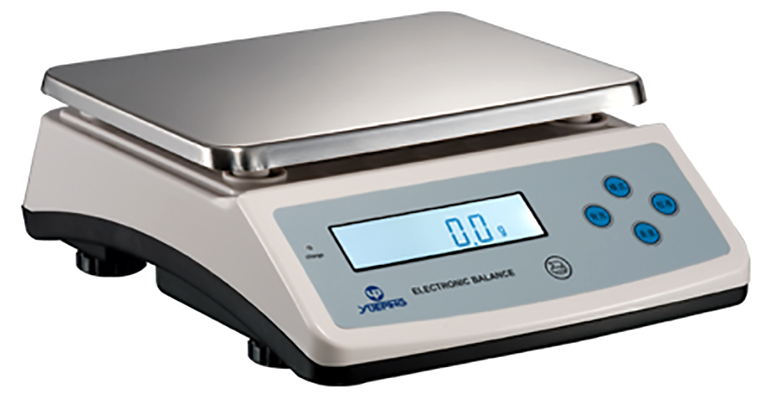

YP series electronic balance has a smooth and novel shape design, reflecting the pursuit of modern concepts. The new design makes the weighing response faster and the setting point more rapid. High stability and anti-interference.
The YP series electronic balance developed by Yueping can also be produced according to the requirements of users. With strong flexibility, it is a good choice for field operations.
Features
● AC and DC dual-purpose, with level gauge, LCD backlight display, fast weighing response, high stability.
● The sensor adopts a unique locking device to ensure that the balance plays a protective role during transportation.
Features
● System operations include: counting function, percentage, automatic calibration, multi-point calibration selection, and calibration weight (optional).
● It has multiple functions such as unit conversion (metric carat, gold ounce, etc.), stability, memory function, animal weighing, and full-scale peeling, making the operation easier and more reliable.
● Built-in RS232C output interface, which can be directly connected to external devices such as computers and printers.
YP series electronic balance
| model | Weighing range | Readability Accuracy | Dimensions | Package size | power supply | Pan size | net weight |
| YP 100001 | 0-10000g | 100mg | 300×120×160mm | 356×310×165mm | AC and DC dual-purpose | 255×190mm | 3.2kg |
| YP 150001 | 0-15000g | 100mg | 300×120×160mm | 356×310×165mm | AC and DC dual-purpose | 255×190mm | 3.2kg |
| YP 200001 | 0-20000g | 100mg | 300×120×160mm | 356×310×165mm | AC and DC dual-purpose | 255×190mm | 3.2kg |
| YP 300001 | 0-30000g | 100mg | 300×120×160mm | 356×310×165mm | AC and DC dual-purpose | 255×190mm | 3.2kg |
| YP 10000 | 0-10000g | 1g | 300×120×160mm | 356×310×165mm | AC and DC dual-purpose | 255×190mm | 3.2kg |
| YP 15000 | 0-15000g | 1g | 300×120×160mm | 356×310×165mm | AC and DC dual-purpose | 255×190mm | 3.2kg |
| YP 20000 | 0-20000g | 1g | 300×120×160mm | 356×310×165mm | AC and DC dual-purpose | 255×190mm | 3.2kg |
| YP 30000 | 0-30000g | 1g | 300×120×160mm | 356×310×165mm | AC and DC dual-purpose | 255×190mm | 3.2kg |
- 1JJF 1847-2020《Calibration Specification for Electronic Balances》
- 2JJF 1940-2021《Calibration Specification for Electromagnetic Balances》
- 3JJF 1036-2022《Electronic Balance》
- 4JB/T 7443-1994《Electronic Balance Product Type Preparation Method》
- 5JB/T 5374-1991《Electronic Balance》
- 6GB/T 26497-2011《Electronic Balance》
