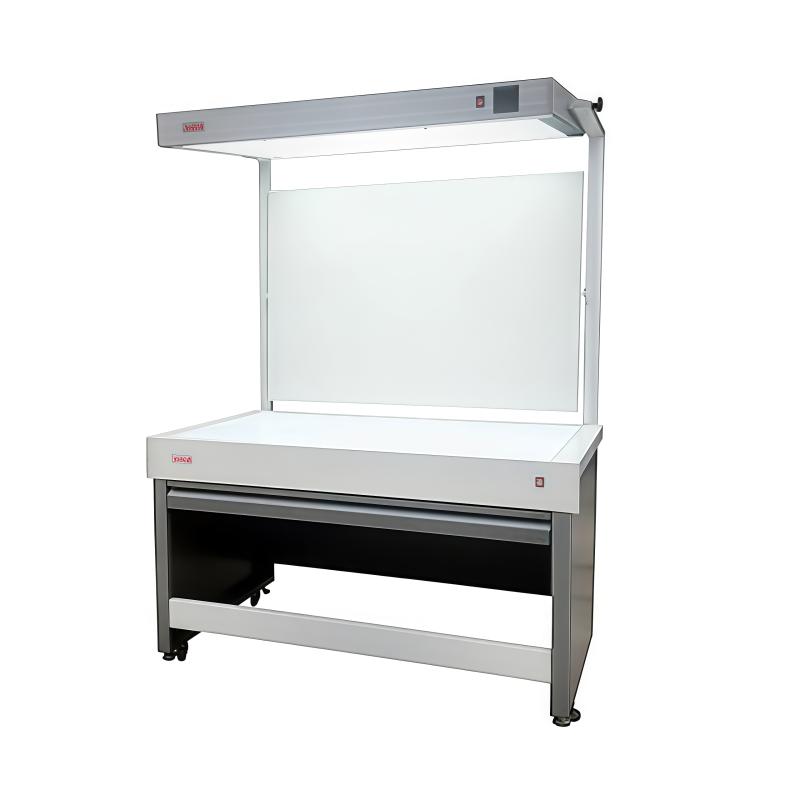

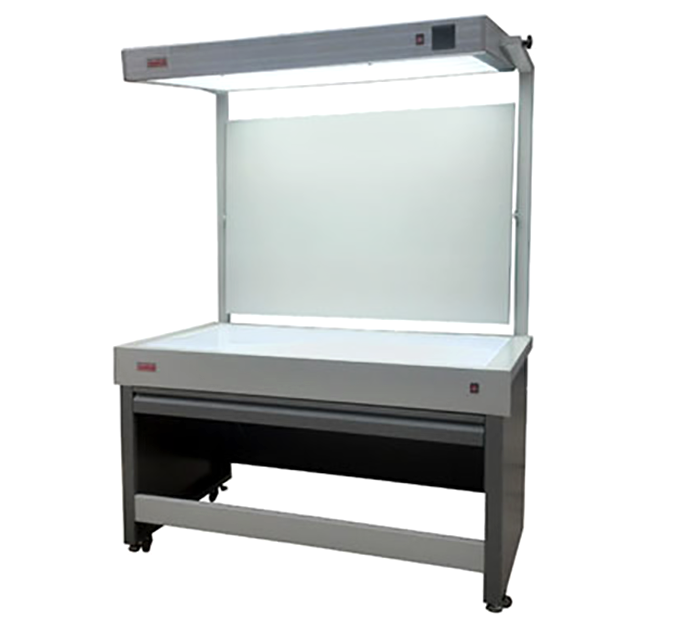

JINPUTE reflection economy standard illuminant table 1 drawer

Economic reflection

Standard illuminant

In line with ISO3664 international standards, color temperature type D65 (6500K) or D50 (5000K), lamp series for Graphica imported printing press.

Features

1) Material: All metal material, real materials

Workbench cabinet: Monolithic sheet metal bracket structure, four large drawers, vertical reflector can be rotated for easy adjustment of Viewing Angle

Transmitted light source: tempered glass and acrylic homogenizer, the light is uniform and not dazzling

Foot design: easy to move with rollers, adjustable and fixed with support feet

Hanging light source: aluminum alloy profile, streamlined design, beautiful and generous, imported reflector, uniform light cover, uniform illumination

2）Light source: Complies with ISO3664 international standards

Color temperature type: D65 (6500K) or D50 (5000K)

Lamp series: Graphica imported printing press

Color rendering index: CRI ≥ 95 with a high color rendering index

Number of lamps: 4 for reflective 36W × with light source timer, 4 for transmitted 36W ×

Packing list：Host x1, number of lamps (reflection 36Wx4--Timer with light source, transmission 36Wx4), manual x1, certificate of conformity x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
