LANDTEK HT6510A Shore Durometer for on-site Hardness measurement of finished rubber and plastic products

SE
HT6510A precision Hardness Tester measurement materials are: soft rubber, soft vulcanized rubber, natural rubber, NBR, thermal plasticity, plastic, thermal plasticity resilience, wax, felt products, leather products, etc.
$239.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

LANDTEK HT6510A Shore Shore DurometerSPEC

LANDTEK HT6510A Shore Shore DurometerDetails

LANDTEK HT6510A Shore Shore DurometerPacking list

SKU
NB000281
measurement unit
HA
Crimping head size
0.79 Truncated cone
application field
Soft rubber, soft vulcanized rubber, natural rubber, nitrile rubber, thermal plasticity, plastics, thermal plasticity resilience, waxes, felt products, leather products
Measurement Range
20~90A
Display parameters
Hardness/Average/MAX Maximum
measurement error
≤±1H
resolution
0.1H
Low Voltage prompt
√
Operating Environment
Temperature: 0~50 ℃; Humidity: < 80% RH
Power Supply
4 AA batteries
Dimensions
162*65*28mm
Weight
173g
Optional accessories
Shore hardness Tester test bracket, rubber hardness testing block (type A/D), RS-232 cable and software, Bluetooth adapter and software
HT6510A
Shore Shore Durometer
LANDTEK HT6510A Shore Durometer for on-site Hardness measurement of finished rubber and plastic products Picture

Overview of HT-6510A Shore Hardness Tester

The Shore Hardness Tester is used to measure the indentation hardness of materials. ThisHT6510AShore Hardness Tester is a hand-held portable Shore Hardness Tester with a small LCD display showing the hardness value reading. The indentation of different types of Shore Hardness Testers Different needles measure different types of materials.

Among them, the measurement materials of HT6510A are: soft rubber, soft vulcanized rubber, natural rubber, nitrile rubber, thermoplastic, plastic, thermoplastic elastomer, wax, felt products, leather products, etc.;

Features of HT-6510 A Shore Hardness Tester

LANDTEK Shore Hardness Tester HT-6510A complies with the following standards: "Rubber Pocket Hardness Test Method for Indentation Hardness" GB/T 531-1999; "Plastic Shore Hardness Test Method" GB/T 2411-80; DIN 53505; ISO 868; ISO 7619; ASTMD 2240; JISK7215.

* Average calculation function.

* Maximum value latch function.

* UnderVoltage alarm indication function.

* LANDTEK Shore Hardness Tester HT6510A uses "USB data line output" and "RS-232 data line output" to communicate with PC.

* LANDTEK Shore Hardness Tester HT6510A provides Bluetooth data output option.

* Using computer technology, digital filtering technology and many other professional technologies to accurately measure the hardness value of materials.

* Digital display, no parallax.

plan

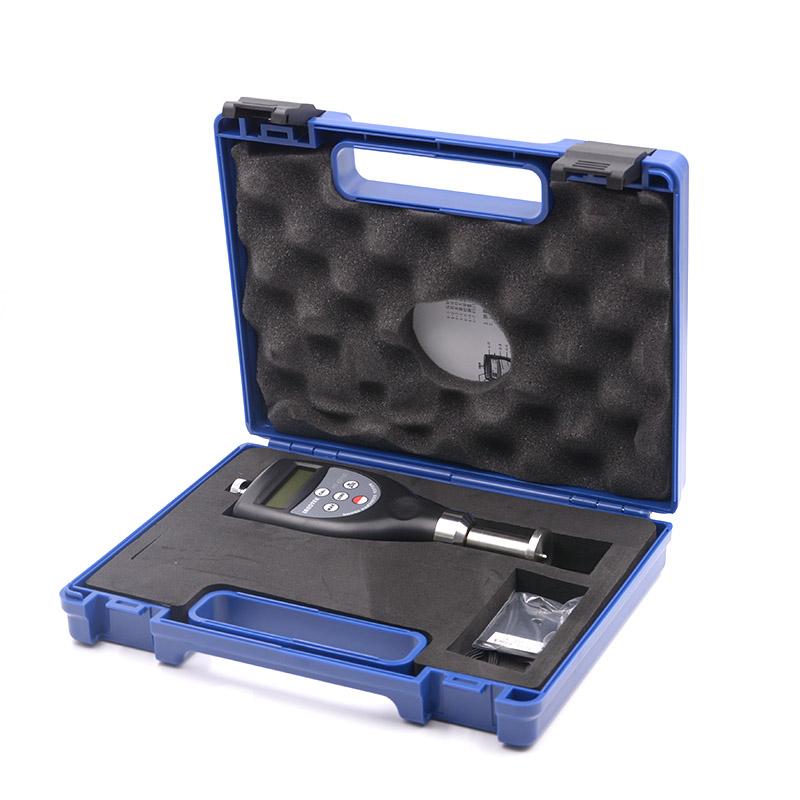

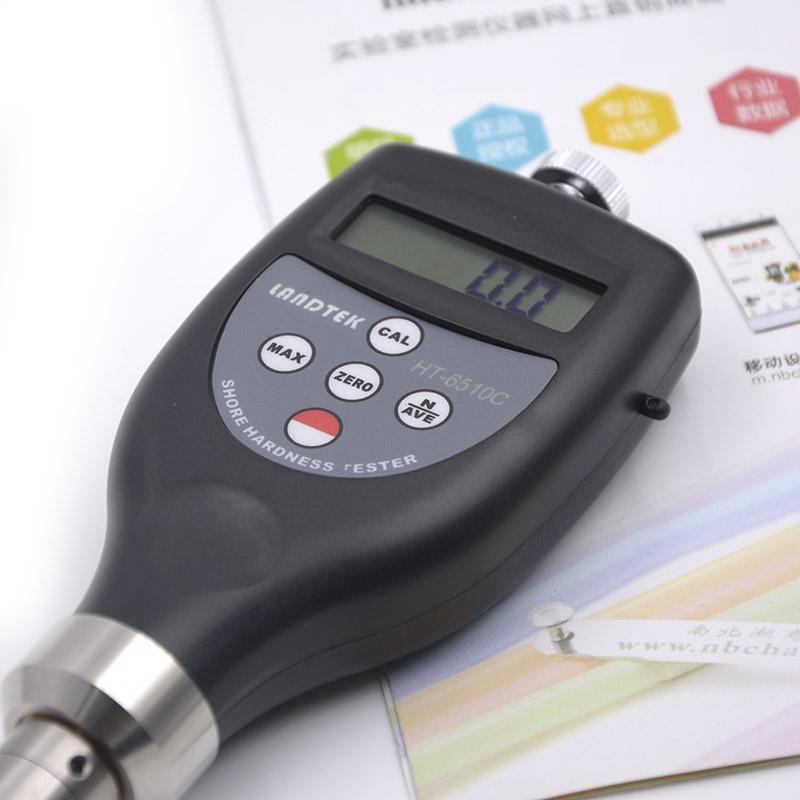

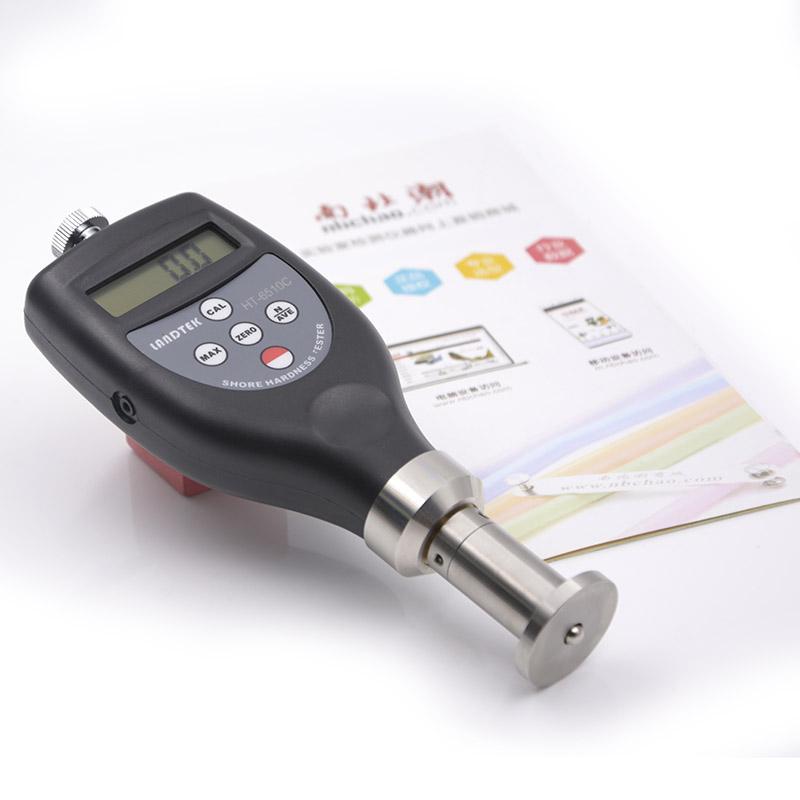

LANDTEK HT6510A/C/D Shore Hardness Tester image

LANDTEK HT6510A/C/D Shore Hardness Tester Details


Shutdown method of HT-6510 Shore Hardness Tester

1. Manual shutdown; 2. Automatic shutdown. At any time, as long as you press the multi-function button until the display shows OFF, you can manually turn off the power of the whole machine when you release the button; in addition, if you do not operate or press any button within 60s, it will automatically turn off.

Shore Hardness Tester application

LANDTEK HT6510A Shore Hardness Tester is suitable for on-site hardness measurement of rubber and plastic products.

HT-6510 model comparison table

modelStylusApplications of material hardness testingHardness value
A0.79 truncated coneSoft rubber, soft vulcanized rubber, natural rubber, Nitrile rubber, thermoplastics, plastics, thermoplastic elastomers, waxes, felt products, leather products20~90A
BR0.1 coneModerately hard rubber, thermoplastics, thermoplastic elastomers, paper products, fiber materialsMore than 90A, less than 20D
C0.79 truncated coneMedium hardness rubber, medium hardness plastics and thermoplastics, thermoplastic elastomersGreater than 90B, less than 20D
D.R0.1 coneHard plastics, hard rubbers, hard thermoplastics, thermoplastic elastomersMore than 90A
doR1.2 hemisphericalModerately hard rubber, thermoplastics, thermoplastic elastomers, high density textile spindlesGreater than 90C, less than 20D
oR1.2 hemisphericalSoft rubber, thermoplastics, thermoplastic elastomers, very soft plastics and thermoplastics, medium density textile spindlesless than 20DO
OOR1.2 hemisphericalVery soft rubber, plastics and thermoplastics, sponges, foams, low density textile spindles, human and animal tissuesless than 20O
E.R2.5 hemisphericalHard sponge, EVAGreater than 90DO, less than 20D


FAQ
QDoes the Shore Shore Durometer A have a small steel plate for calibrating?
A Yes.
QExcuse me, can Shore Shore Durometer replace the needle? For example, for the A-type host, replace the D-type needle.
A No, different force measurements and machine debugging are also different.
QCan 6510a Hardness Tester communicate with PLC?
A Communication protocols can be provided, customers need to program themselves
QCan this one measure the Hardness of soft capsules?
A This one shouldn't work, use the 6510O one.
QIs this instrument suitable for testing PVC soft plastic film?
A suitable
QI want to do a test on GB/T2411 standard, is this Shore hardness tester okay?
A Sure
