NIRUN CAP-07 Cone Plate Rheometer Rotor 32-63000mPa · s

SE
The NIRUN CAP-07 Cone Plate Rheometer is an optional CAP rotor for the NTV-CAP3H Cone Plate Rheometer with a shear rate of 2.0N and a sample size of 1700μL for a viscosity range of 32-63000mPa · s.
$658.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT

NiRun CAP-07 rotorSPEC

NiRun CAP-07 rotorDetails

NiRun CAP-07 rotorPacking list

SKU
NB028163
Measuring range
32-63000mPa·s
Rotor speed
5~1000rpm
shear rate
2.0N
Measurement Accuracy
±2%F.S
sample size
1700μL
CAP-07
rotor

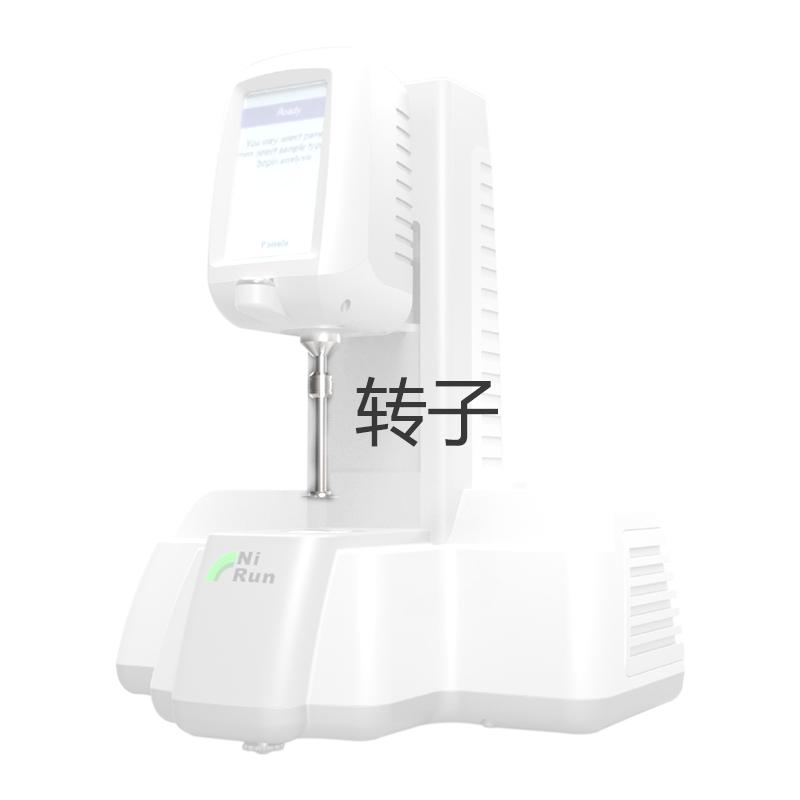

NIRUN CAP-07 Cone Plate Rheometer Rotor 32-63000mPa · s Picture

Introduction

NIRUN CAP-07 cone-plate rheometer is an optional CAP rotor for NTV-CAP3H cone-plate rheometer. The shear rate is 2.0N, the sample volume is 1700μL, and the applicable viscosity range is 32-63000mPa·s.

Applications

Medium viscosity fluid: hot melt adhesive, coating, resin, starch, screen printing ink, surface treatment, organic solvent, cream, food, gel, chewing gum, plastisol, etc.

High viscosity fluids: adhesives, gels, sealants, asphalt, printing inks, chocolate, tar, molasses, pastes, synthetic polymers, epoxy polymers, vinyl esters, roofing materials

Parameter comparison table

Rotor numbershear ratesample sizeRotating speed
CAP-0113.3N67μL20-37500
CAP-0213.3N38μL37-75000
CAP-0313.3N24 μL75-150000
CAP-043.3N134μL150-300000
CAP-053.3N67μL300-600000
CAP-063.3N30μL750-1500000
CAP-072.0N1700μL32-63000
CAP-082.0N400μL125-250000
CAP-092.0N100μL500-1000000
CAP-105.0N170μL50-100000


FAQ
QWhat is the size of the rotor of the CAP-07?
A CAP-07 cone rotor, diameter 47.98 cone angle 3.0 degrees
