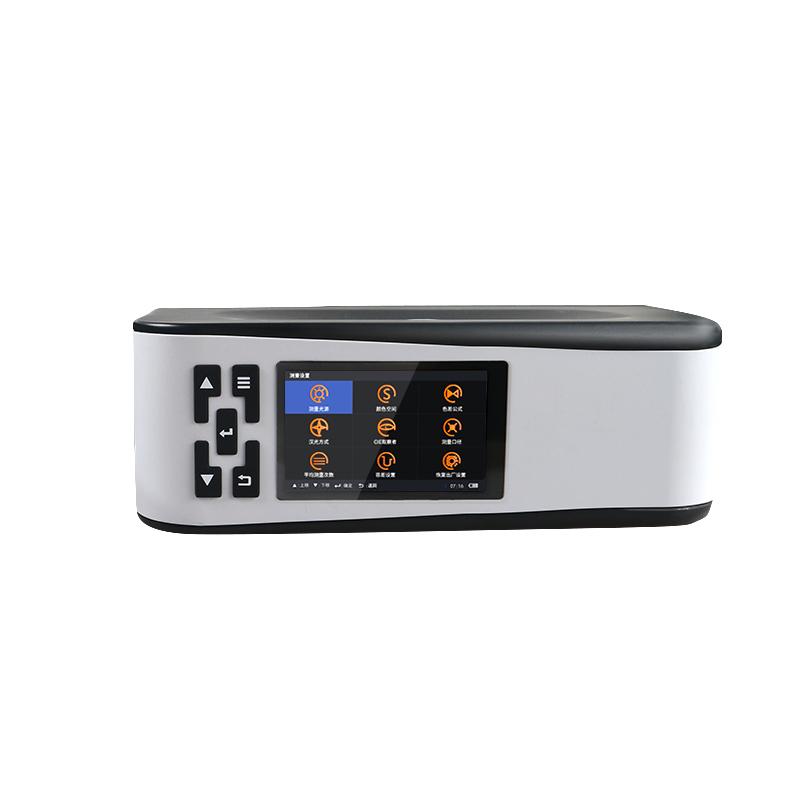

IWAVE WS2600 Colorimeter

WS2600

Colorimeter

φ 11mm/φ 6mm dual diameter can be switched, concave Diffraction grating spectroscopic mode, repeability accuracy Delta E < 0.05, SCI/SCE light-containing mode.

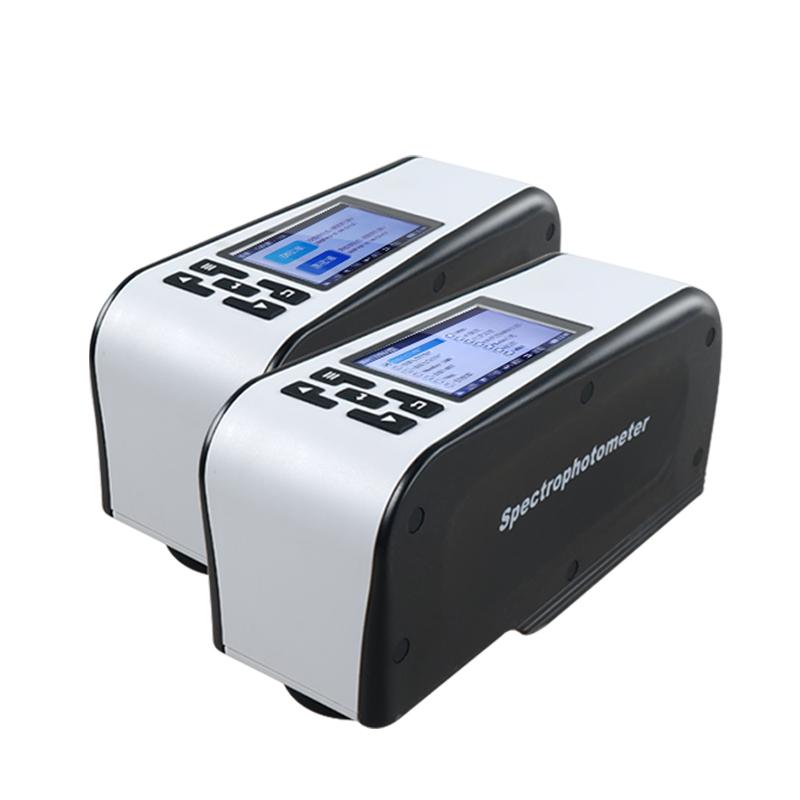

WS series Spectrophotometer is a cost-effective Spectrophotometer carefully designed by IWave Optoelectronics . It provides great reliability and convenience for color quality control in all walks of life .

Stability (ΔE<0.05)

The electronic circuit system and optical system of the entire instrument are intelligently monitored by independent innovation patents to ensure that the instrument is not affected by the external environment during each measurement, thereby achieving high stability (ΔE<0.05).

Inter-station difference (ΔE<0.3) Inter-station difference refers to the difference between the measurement data of each instrument.

During product processing and production, the quality of each instrument is strictly controlled; when the product is out of the warehouse, the quality inspection of each instrument is strictly controlled; to ensure that the difference between each instrument is minimized, thereby creating a reliable environment for instrument users. A data-based communication environment for businessmen.

Professional power management system, stable and safe

WS series spectrometer has three power supply modes: 3200mAH rechargeable lithium battery; external 5V DC power supply; lithium battery and external 5V DC power supply simultaneously;

Lithium battery can be measured more than 10,000 times after charging once, which is 8-10 times that of the same industry. This instrument is equipped with an overVoltage protection system. When the customer connects the wrong power supply, the overVoltage system inside the instrument will start to protect the instrument from being burned.

Accurate spectral data and Lab values

Sampling High-precision spectral spectroscopic system and stable optical system can accurately separate light waves of different wavelengths, so as to obtain accurate spectral data and Lab values.

Average measurement function

The WS series Spectrophotometer has an average measurement function, and the average measurement times can be set from 1 to 99 times.

A variety of measurement light sources and color rendering parameters

Seventeen kinds of light sources are built in the instrument: A, C, D50, D65, D75, F1, F2 (CWF), F3, F4, F5, F6, F7, F8, F9, F10, F11 (TL84), F12 (U30) and F12(U30) and thirteen color rendering parameters (CIEL*a*b*, CIEL*C*h, CIEL*u*v*, CIEXYZ, Yxy, reflectance, CMYK, YI yellowness, Ganz whiteness, ISO brightness (R457 whiteness), Taube whiteness, z whiteness, sRGB), can meet different color measurement needs of users.

In addition, there are two CIE observer angles (10° and 2°) and eleven color difference formulas (△E*ab, △E*Ch, △E*uv, △E*Hunter, △E* CMC ( 2:1), △E* CMC (1:1), △E*94, △E*00, △E*sRGB, △E*BFD, △E*FMCII) are available for users to choose.

Humanized appearance design, small body, large purpose

Ergonomically designed body brings you a more comfortable measurement experience;

It adopts 2.8-inch TFF color display screen and graphical user interface to realize easier operation for you;

Small body, big purpose. Small size, light weight, easy to carry;

Extended functions, comprehensive and practical

The WS series Spectrophotometer can communicate with the host computer software (optional) on the computer side, and use the computer side software to expand the functions of the instrument, which can realize data analysis, uploading, downloading, printing and manual input of LAB values. ; It can also be connected with a micro-printer (optional), which can realize real-time printing of measurement data.

Packing list：Host X1, White Calibration plate X1, Data cable X1, Manual X1, Warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
