LANDTEK HT6510F Sponge Hardness Gauge specializes in the measurement of the Hardness of soft materials such as sponges

HT6510F

Sponge Hardness Gauge

Soft material testing such as sponge, 100HF range, < 1HF accuracy; Automatic calibration; Average calculation and MAX Maximum latch, meeting GB531, 2411 and other standards; USB and Bluetooth data output can be purchased separately.

Brief Introduction of HT6510F Sponge Hardness Tester

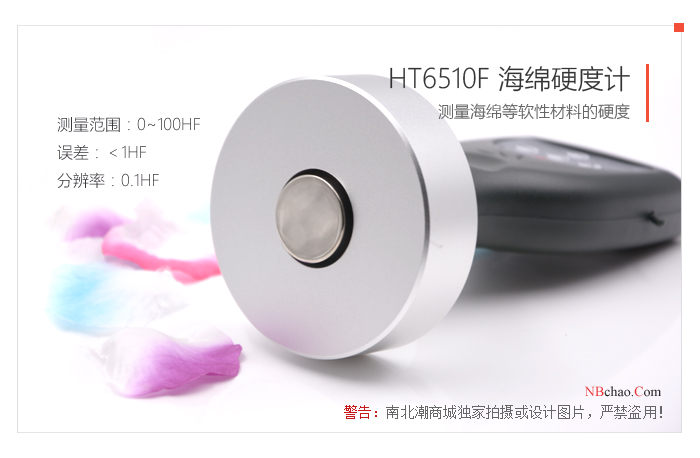

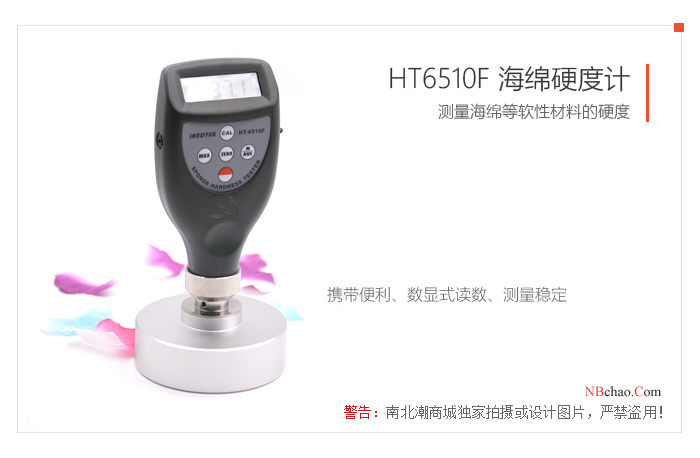

LANDTEK HT6510F sponge Hardness Tester is a portable sponge Hardness Tester, which has the characteristics of convenient portability, digital display reading and stable measurement. The measuring hardness range of HT6510F sponge Hardness Tester is 0~100HF, the measuring resolution is 0.1HF, and the pressure foot with a diameter of 80mm has good measurement stability. The Shore Hardness Tester HT-6510F has an automatic calibration function, which is specially used to measure the hardness value of soft materials, and the measurement results are directly displayed on the LCD.

LANDTEK HT6510F Sponge Hardness Tester is specially used to measure the hardness of soft materials such as sponges. When in use, the presser foot directly touches the sample, and uses its own weight as the force measurement load.

Shore Hardness Tester HT-6510F Application

Shore Hardness Tester HT-6510F is used to measure soft materials such as sponges. It is specially used to determine the hardness of soft foam materials, rag dolls, pillows and polyurethane foam rubber products.

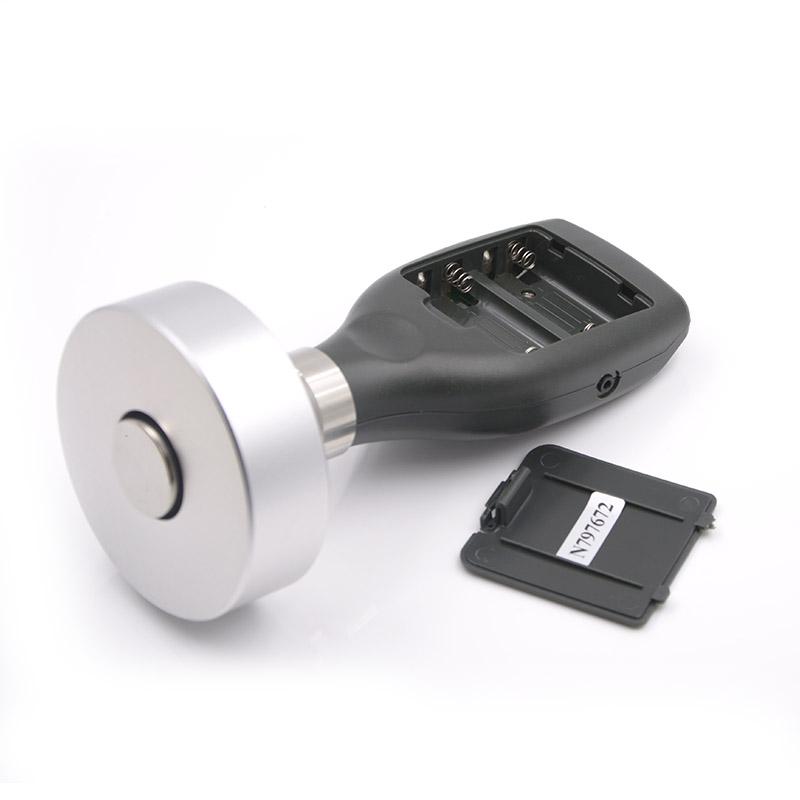

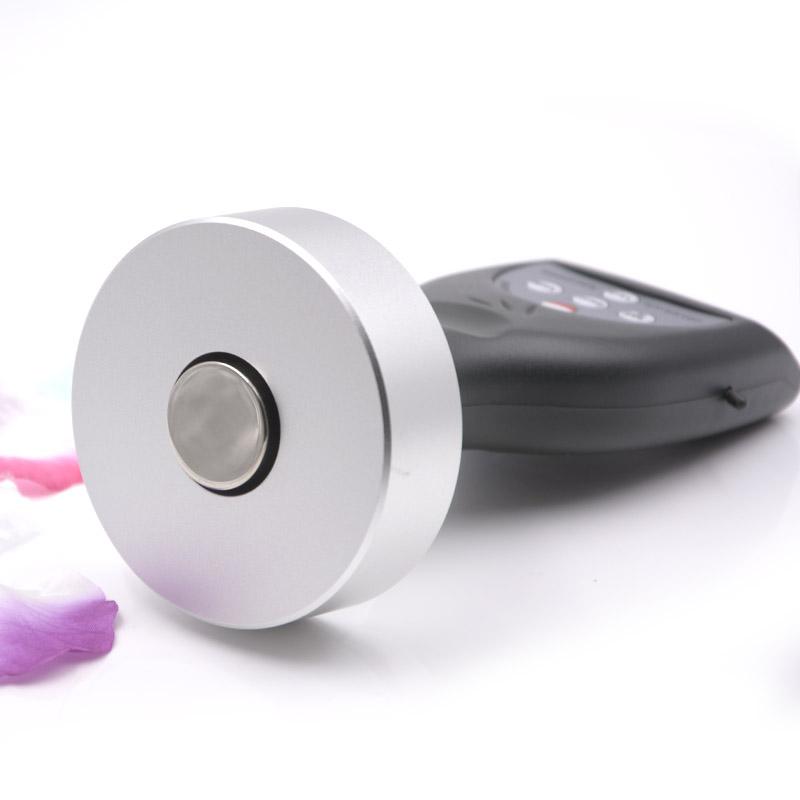

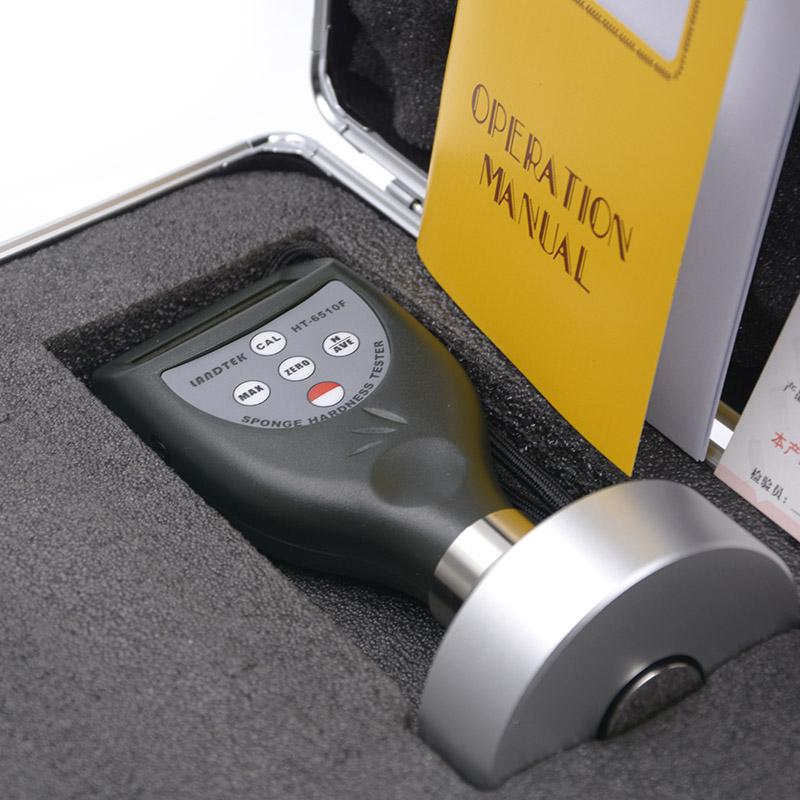

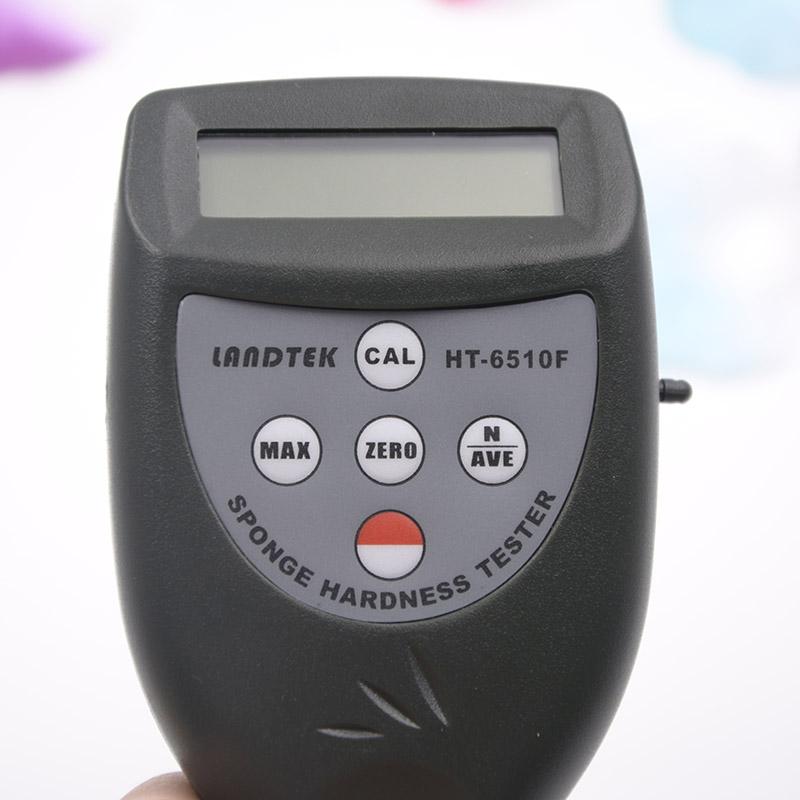

Shore Hardness Tester HT-6510F real shot

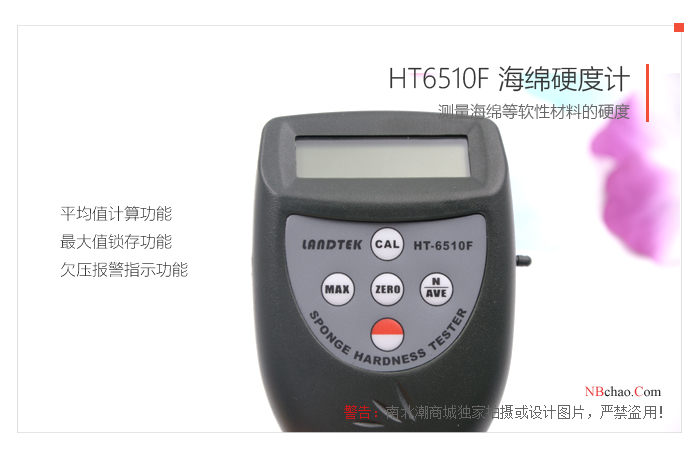

Features

* Average calculation function.

* Maximum value latch function.

* UnderVoltage alarm indication function.

* Shore Hardness Tester HT-6510F uses "USB data line output" and "RS-232 data line output" to communicate with PC.

* Shore Hardness Tester HT-6510F provides Bluetooth data output option.

application standard

Shore Hardness Tester HT-6510F complies with the following standards: "Rubber Pocket Durometer Indentation Hardness Test Method" GB/T 531-1999; "Plastic Shore Hardness Test Method" GB/T 2411-80; DIN 53505; ISO 868; ISO 7619; ASTMD 2240; JIS K7215.

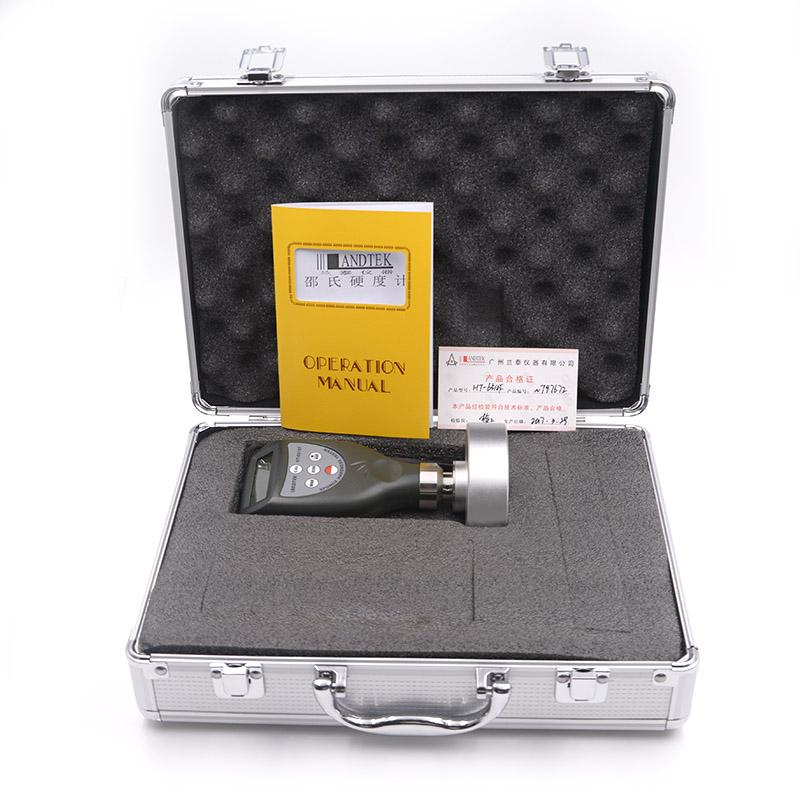

Packing list：host x1, portable box x1, manual x1, Shore stylus length test card x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
