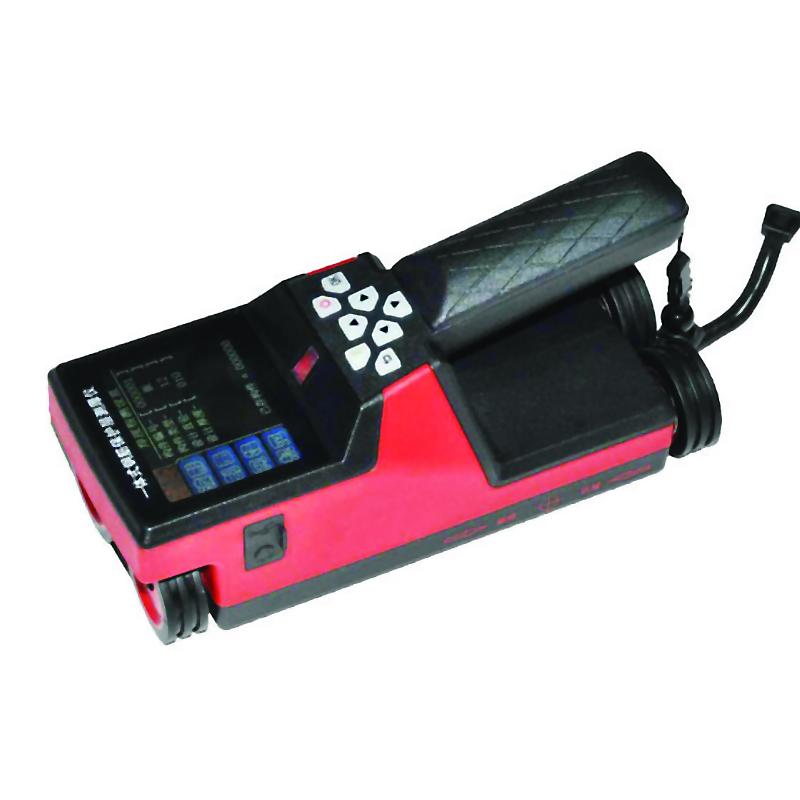

KOSON KS-72 Steel Bar Position Tester (Laser Type)

KS-72

Steel bar position Tester

The reinforcement Detector is mainly used to detect the construction quality of reinforced concrete, such as the detection of the position of the reinforcement, the thickness of the protective layer, the distribution and direction of the reinforcement, and the diameter of the reinforcement in the concrete structure such as housing engineering, bridges, tunnels, dams, pavement, etc.; The detection of steel bars in water conservancy and civil air defense projects and the detection of magnetic materials in various non-magnetic materials (such as wires and cables, magnetic pipelines), etc.

According to the standard

GB 50204-2015 Code for Acceptance of Construction Quality of Concrete Structure Engineering

GB 50010-2010 Code for Design of Concrete Structures

GB/T50344-2004

JGJ/T152-2008

DB11/T365-2006

Features

The JGJ procedure measurement mode is specially set up, and each steel bar detects three parts, and each part is tested twice, and the average value is calculated to evaluate the pass rate;

The 3.6-inch large color LCD screen shows the content more clearly and makes it more convenient to view on site

Thickness, waveform, profile, grid, specification measurement, five scanning modes to detect the internal reinforcement of concrete, adapt to different sizes of components, the results are more intuitive, and the application is more extensive;

Dense reinforcement waveform recognition, ultra-small reinforcement spacing can still be judged clearly, and the judgment of the number of reinforcement is intuitive and accurate without leakage;

Laser, sight, sound, indicator four ways to indicate the position of the reinforcement, the thickness of the protective layer and the central axis of the adjacent reinforcement

A more user-friendly handle grip design, plus a comfortable grip lag.

The LCD screen can be adjusted brightly and darkly according to the current luminosity, which is more suitable for various detection environments.

Using a variety of combined measurement methods of multiple coils, the positioning calculation is more accurate and the accuracy is higher

Manual correction of reinforcement function, in the detection process due to the operation of the leakage, multi-judgment situation, can be manually corrected according to the waveform, and can automatically calculate the spacing and thickness of the protective layer;

With automatic shutdown setting, you can set the automatic shutdown time according to your own usage;

Accurately identify the position of the reinforcement and the intermediate position of the adjacent reinforcement, the thickness of the protective layer and the spacing of the reinforcement are displayed at the same time, and it is more convenient to drill and cor.

One-key clearing during the detection process, which makes calibration more convenient;

There are two ways of data transmission: wired transmission and wireless transmission;

Automatic data storage, built-in large storage space, can store data, pictures and other types of data.

Built-in high-capacity safety lithium battery, low-power consumption design, can work for a long time without charging;

Professional data analysis software, closely linked to national norms and standards, seven report formats can be selected arbitrarily, and test reports can be automatically generated and printed;

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
