Specifications
| Measurement principle | Eddy Current |
| Measurement range | 0~3000μm |
| margin of error | ±2~3% |
| Minimum measurement surface | Φ14.5mm |
| Minimum radius of curvature | R70mm |
| thinnest substrate | 0.05mm |
| probe | Line probe |
| Probe size | Φ14.5*34.5mm |
| Probe material | Shell top stainless steel (1.4305); Shell bottom Trogramid ® (CX7323) |
| Probe Weight | 11.9g |
| Unit display | μm |
| statistical function | MAX Maximum, MIN Minimum, Average, Standard deviation |
| Power Supply | 2 * 1.5V (AA) alkaline battery |
| Standards | DIN EN ISO 2808，DIN 50981，DIN 50984，ISO 2178， BS 5411（3＆11），BS 3900-C5，ASTM B 499，ISO 2360， ASTM D 1400，ASTM D 1186，ASTM D 7091 |
| Display screen | IPS-LCD, 2-inch, color, 350cd/m2, with a Viewing Angle of 70 ° in all directions. |
| Operating temperature | -20℃-70℃ |
| Battery life | 1 year (1 measurement per second) |
| Protection level | IP65 |
| Shell material | Hard fiberglass * PA12 GF30 |
| Machine Weight | 132g |
| Machine size | 136* 63*42mm |
| Storage temperature | -20~70℃ |
| Maximum workpiece surface temperature for continuous measurement | 80℃ |
| Battery life | > 2 years |
Packing list

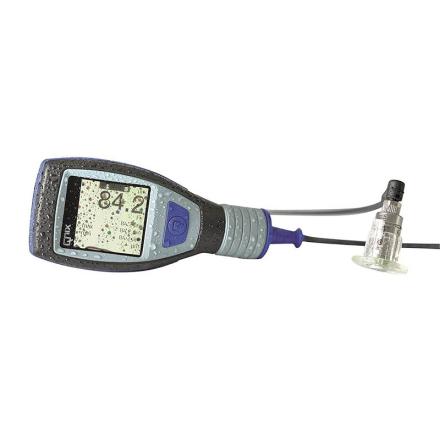

QNix5500 host, 1 NFe zero adjustment board, 1 standard piece, factory test report, instruction manual, 2 1.5V AA alkaline batteries, plastic instrument case
After-sales instructions
Warranty days: 365 days
