Specifications
| Measurement principle | Magnetic Induction |
| Measurement range | 0~1250μm |
| margin of error | ±2~3% |
| Minimum measurement surface | Φ20mm |
| Minimum radius of curvature | Radius 20mm |
| thinnest substrate | 0.2mm |
| probe | Integrated probe |
| Probe material | Ruby (Al203) |
| Calibrated mode | Zero calibrated, 1 point calibrated, 2 point calibrated |
| Measurement mode | Manual matrix selection, automatic matrix selection, double matrix combined measurement, continuous measurement |
| Unit display | µm/mil conversion |
| Interface | USB port |
| Data storage | 10,000 measurement readings |
| Power Supply | 2xAA alkaline dry battery/rechargeable battery/USB |
| Standards | DIN EN ISO 2808, DIN 50981, DIN 50984, ISO 2178, BS 5411 (3 & 11), BS 3900-C5, ASTM B 499, ISO 2360, ASTM D 1400, ASTM D 1186, ASTM D 7091 |
| Display screen | 2.4-Inch IPS-LCD color liquid crystal, 600 lumens, 70 ° Viewing Angle |
| Operating temperature | -20 ℃ -70 ℃ |
| Battery life | When the battery is not in use, 50% Capacity > 1 year, 60,000 times |
| Protection level | IP64 |
| Machine Weight | 175 g |
| Machine size | 155*65*44 mm |
| Storage temperature | -20~70℃ |
| Probe support | Trogramid® |
| Body hard material | PA12 GF30 |
| Body soft material | TPE |
| system clock | CR1220 |
| Battery life | > 2 years |
| Measurement speed | ≥ 120 per minute |
Packing list

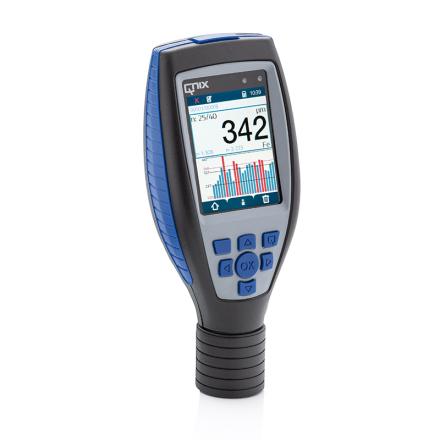

QNix9500 host, 1 Fe zero adjustment board, 1 standard piece, factory test report, instruction manual, 2 1.5V AA alkaline batteries, plastic instrument case
After-sales instructions
Warranty days: 365 days
