Qnix Fe3mm magnetic thickness probe 5000 μm

SE
The Nix Qnix Fe5mm magnetic thickness probe uses the principle of magnetic Induction thickness measurement, the thickness measurement range is 0~5000 μm, and the Measurement accuracy is +/- (1 µm + 2% of the reading) at < 2.0mm; +/- 3% of the reading at > 2.0mm. It is an optional probe for the Qnix5500 and Qnix9500 series Thickness Gauges.
$982.00/piece
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con VIDEO
Similar products

Qnix Fe5mm probeSPEC

Qnix Fe5mm probeDetails

Qnix Fe5mm probePacking list

SKU
NB028250
Measurement principle
Magnetic Induction
Measurement range
0~5000μm
margin of error
±2~3%
Minimum measurement surface
Φ20mm
Minimum radius of curvature
Radius 20mm
thinnest substrate
0.2mm
Probe size
Φ14.5*34.5mm
Probe material
Ruby (Al203)
Probe Weight
11.9 g
Calibrated Certificate
Electronic calibrated Certificate
Standards
DIN EN ISO 2808, DIN 50981, DIN 50984, ISO 2178, BS 5411 (3 & 11), BS 3900-C5, ASTM B 499, ISO 2360, ASTM D 1400, ASTM D 1186, ASTM D 7091
Operating temperature
-20 ℃-70 ℃
Protection level
IP65
Probe housing material (top)
Stainless steel (1.4305)
Probe housing material (bottom)
Trogramid®
Storage temperature
-20~70℃
Maximum workpiece surface temperature for continuous measurement
80 ℃
LED probe status display
Yes.
LED over-limit display
Yes.
Fe5mm
probe

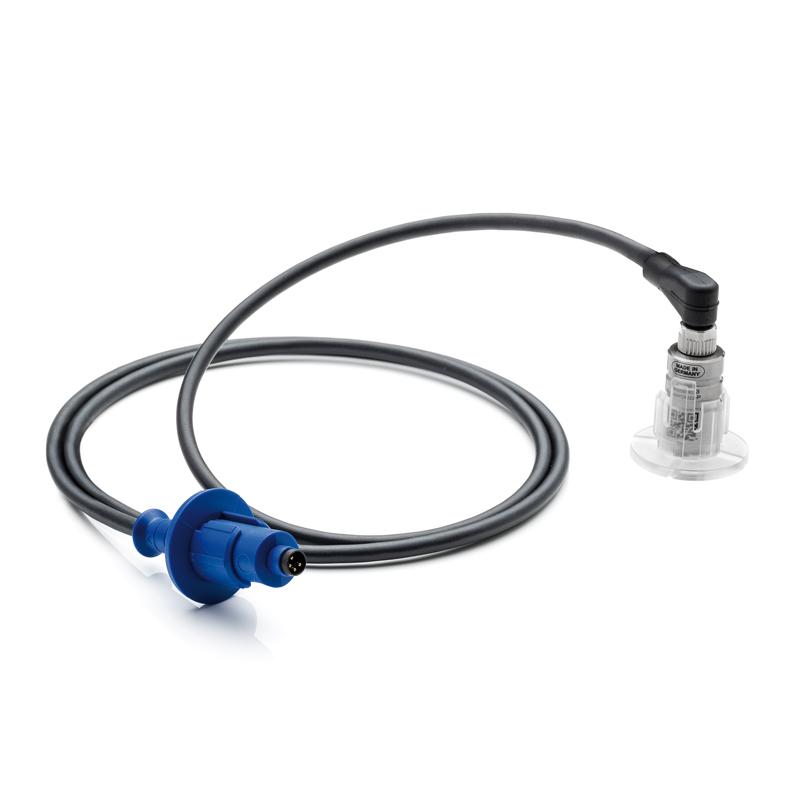

Qnix Fe3mm magnetic thickness probe 5000 μm Picture

The QNix®9500 probe is a new design. Its standard probe is small and sturdy, and can be used for Fe, NFe, or Fe/NFe dual purposes.

The LED light built into the probe is used to prompt whether the measured value exceeds the limit without checking the host display.

The QNix®9500 integrated design has built-in probes, and you can also choose interchangeable external probes with modular design.

Features

• Stainless steel probe with protective film inside, IP65 dustproof and waterproof

• Wear-resistant ruby ​​probe

• Chemical-resistant material, suitable for chemical cleaning (acetone, nitro dilution, ethanol)

• LED indicator light on probe

• The probe wire is drag chain type and can be bent at will

Each probe has an electronic calibration certificate stored in it, which can be loaded into the test report through a PC.


Qnix Fe5mm probe details picture 1

FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
