Specifications
| Measurement principle | Magnetic Induction + eddy Current |
| Measurement range | 0~1250μm |
| margin of error | ±2~3% |
| Minimum measurement surface | Φ20mm |
| Minimum radius of curvature | Radius 20mm |
| thinnest substrate | 0.2mm(F)；0.05mm(N) |
| Probe size | Φ14.5*34.5mm |
| Probe material | Ruby (Al203) |
| Probe Weight | 11.9 g |
| Calibrated Certificate | Electronic calibrated Certificate |
| Standards | DIN EN ISO 2808, DIN 50981, DIN 50984, ISO 2178, BS 5411 (3 & 11), BS 3900-C5, ASTM B 499, ISO 2360, ASTM D 1400, ASTM D 1186, ASTM D 7091 |
| Operating temperature | -20 ℃-70 ℃ |
| Protection level | IP65 |
| Probe housing material (top) | Stainless steel (1.4305) |
| Probe housing material (bottom) | Trogramid® |
| Storage temperature | -20~70℃ |
| Maximum workpiece surface temperature for continuous measurement | 80 ℃ |
| LED probe status display | Yes. |
| LED over-limit display | Yes. |
Packing list

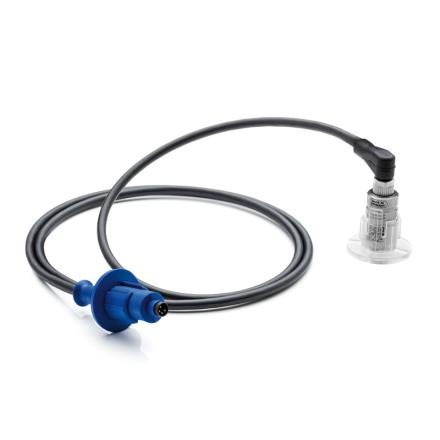

Fe/NFe1.2mm
After-sales instructions
Warranty days: 90 days
Depending on the environment, frequency and mode of use, the service life of the probe will also be different.
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/28253/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
