Muxuan ZJB-120S Intelligent LABOratory Stirrer Touch Screen
SE
ZJB-120S
MuXuan ZJB-120S Laboratory StirrerSPEC
MuXuan ZJB-120S Laboratory StirrerDetails
MuXuan ZJB-120S Laboratory StirrerPacking list
- SKU
- NB028257
- Rated Voltage
- AC 220V 50Hz
- output power
- 120W
- Drive type
- Brushless DC electrode
- Max Torque
- 50N.CM
- Speed display
- TFT LCD
- Operation control method
- Digital display, combined control knob
- Speed range
- 30~2000rpm
- Timer
- 1~6000min
- Forward and reverse switching function
- Yes
- Key lock function
- Yes
- Speed dynamic detection function
- Yes
- Speed memory function
- Yes
- safety protection
- Overload protection
- Temperature display function
- Module selection
- Temperature Measurement range
- -20~200 ℃ (optional)
- External temperature sensing interface
- PT1000

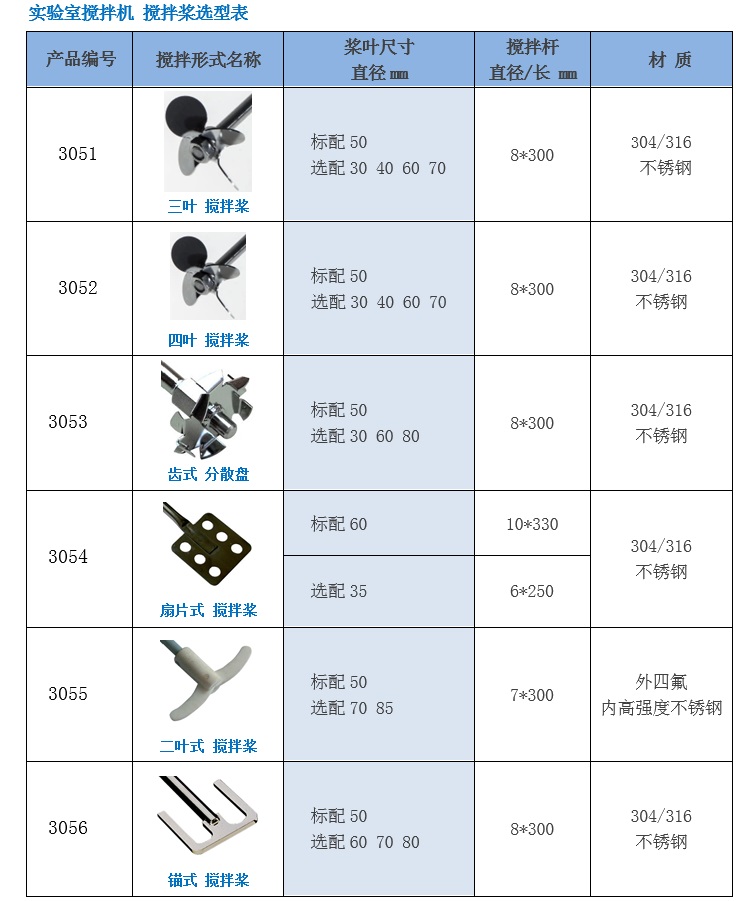

- Impeller type
- Standard four-blade blade 304 stainless steel
- Impeller fixing method
- Collet
- Capacity
- 0.2~40L
- Maximum Viscosity
- 100000mPa`s
- Complete-built unit form factor
- 215*310*720mm
- Total Weight
- 8kg
ZJB series intelligent laboratory mixer adopts brushless DC motor with engineering plastic casing, three-core processor intelligent control motherboard, 2.8-inch TFT touch screen, real-time Voltage, frequency, current and power display. Equipped with torque curve display, overload and overcurrent protection, local self-test, timing, memory and other functions, the speed can be preset, pause at any time, speed digital display, torque curve display, forward and reverse, operation convenient.
The machine has a reasonable and compact structure, ultra-low noise, and maintenance-free. The stirring speed is controlled by a microprocessor, which can instantly and effectively compensate the speed change caused by load changes and power supply Voltage fluctuations. The built-in automatic overload protection device ensures the continuous operation of the experiment with high load ; the experimental application function of various types of stirring rods; the digital display of the stirring speed ensures the intuitive collection of experimental data to meet the correction of the stirring speed in the experiment at any time; the stable stirring speed, Competent for high-viscosity media and slurry mixing, and can be equipped with a variety of different specifications of working heads
Application
【Material viscosity】:≤100000cps(mPas)

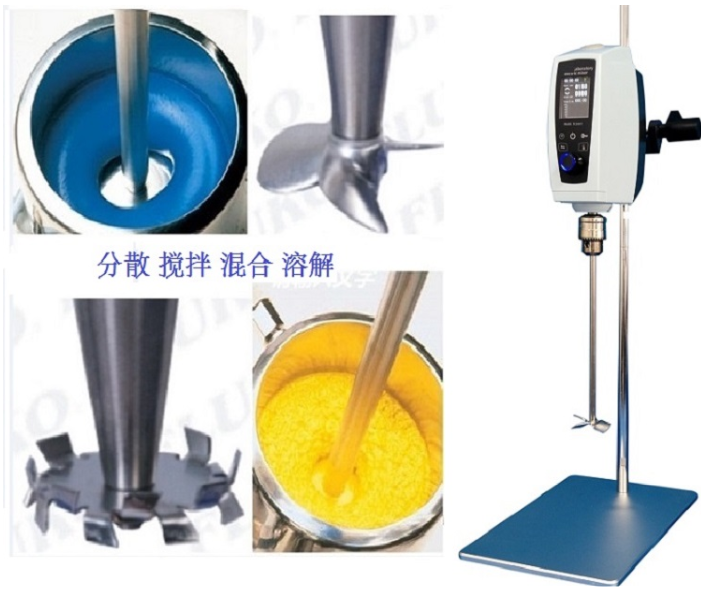

[Application]: It is suitable for dispersing, stirring and mixing of materials in industries such as biology, medicine, food, paint, ink, textile auxiliaries, cosmetics, lubricating oil, pesticides, etc.
native features

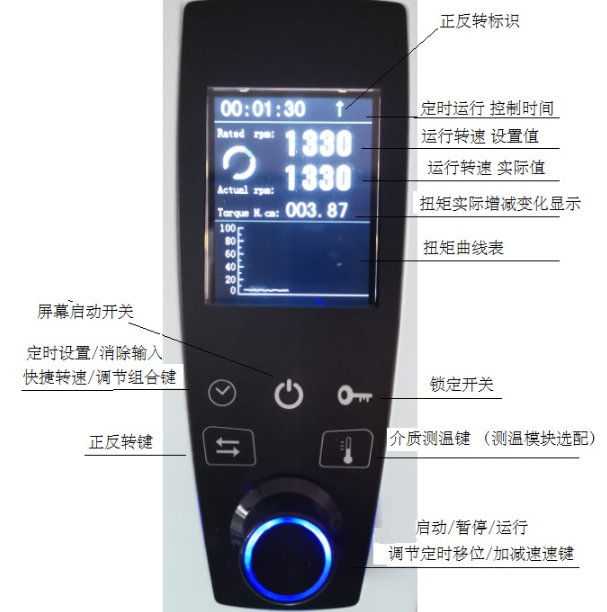

Core processor intelligent control motherboard, 2.8-inch TFT true color touch screen
Real-time Voltage, frequency, current, power display. Equipped with torque curve display, it can be operated conveniently in forward and reverse directions
Screen (LCD), brushless DC motor, strong torque; knob speed adjustment, suitable for mixing low to medium and high viscosity liquids in the laboratory
