LANDTEK HM6580 Hardness Gauge error of indication +/- 8HLD Repeatability +/- 6HLD

HM6580

Leeb Hardness Tester

Aluminum alloy shell, one-piece; measurement of the thinnest 3mm workpiece; 360 degree direction measurement; six Hardness units interchangeable; with USB and RS232 interface; Bluetooth data output can be purchased separately.

LANDTEK HM-6580 Hardness Tester is a small portable Leeb Hardness Tester with an aluminum alloy casing, which is very durable and can be used to measure the hardness of 9 different materials, including steel and cast steel, metallurgical tool steel, forged steel , gray cast iron, nodular cast iron, cast aluminum alloy, pure copper, copper-zinc alloy (brass), copper-tin alloy (bronze), etc. The HM-6580 Hardness Tester is equipped with a D-type impact device as standard, and other types of impact devices can be purchased separately to measure the hardness value of the corresponding applicable material. HM-6580 Hardness Tester can measure the minimum thickness of the workpiece is 3mm, it is a key operation, digital display Leeb Hardness Tester.

Applications of HM6580 Hardness Tester

HM-6580 Hardness Tester is used in the failure analysis of installed mechanical or assembled parts, mold cavity, heavy workpiece, pressure vessel, steam turbine generator set and its equipment, workpieces with very small test space, bearings and other parts. There are formal original records of test results, material classification in metal material warehouses, and rapid inspection of multiple measurement parts of large workpieces.

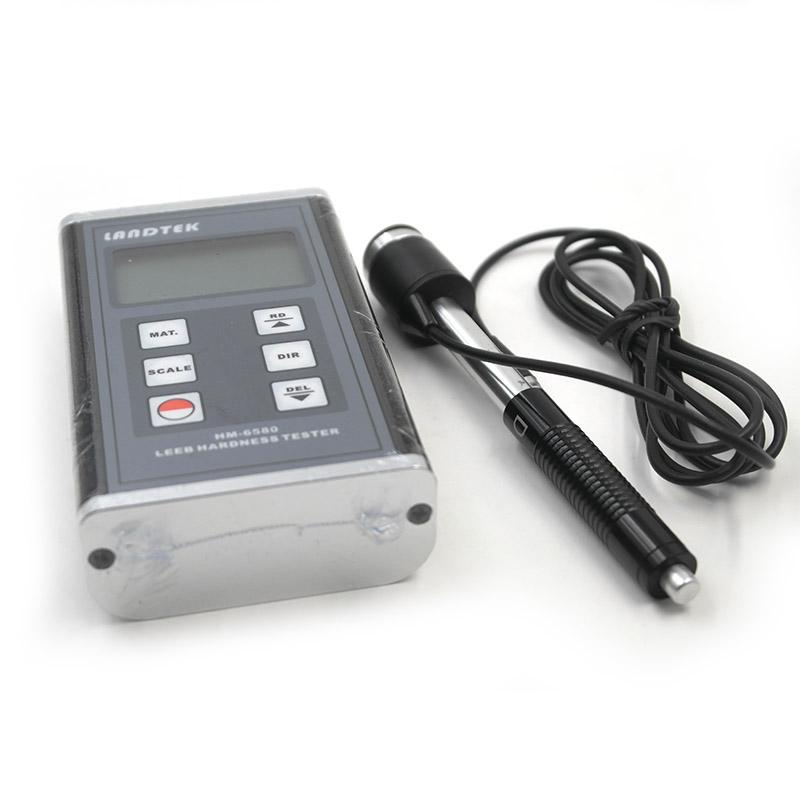

Real shot of HM6580 Hardness Tester

Features of Leeb Hardness Tester HM6580

* Manual and automatic shutdown function.

* Low battery Voltage indication.

* Leeb Hardness Tester HM6580 is small in size and easy to use in narrow spaces.

* The test results can be displayed repeatedly, and gross errors can be deleted.

* The test material and test direction can be selected through the keyboard.

* Leeb Hardness Tester HM6580 can realize mutual conversion between six kinds of hardness (HL, HRC, HRB, HB, HV, HS).

* Can store 50 sets of measured values and test status, including material, test direction, hardness and other information.

* Allows user calibration to make measurements more accurate.

* Leeb Hardness Tester HM6580 has RS232 interface, which is convenient for computer communication.

* Use "USB data line output" and "RS-232 data line output" to communicate with PC

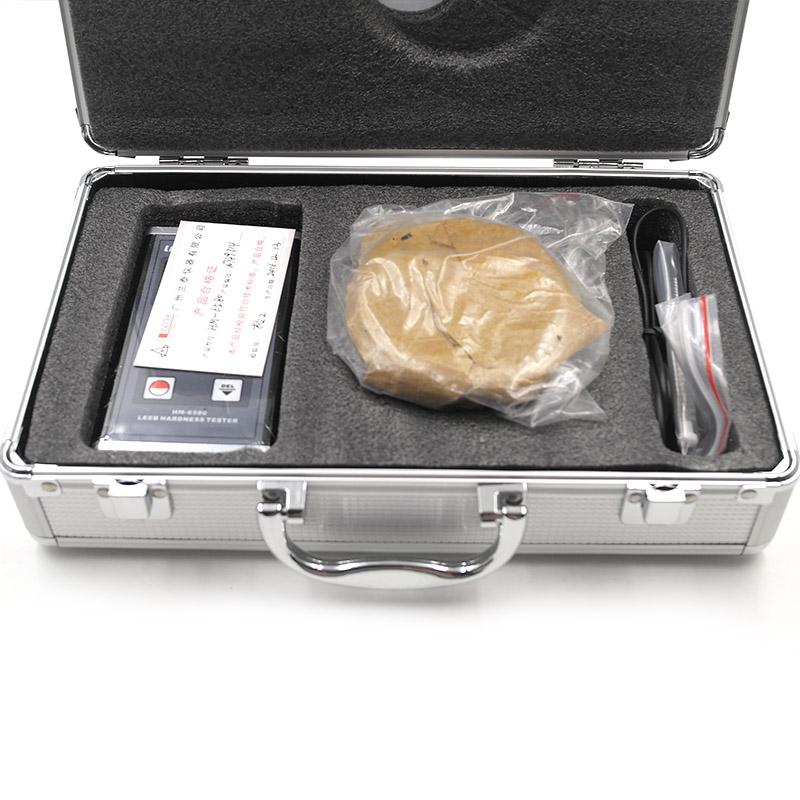

Packing list：Host x1, Standard Hardness Block x1, Measurement Sensors x1, Portable Box x1, Manual x1, Small Support Ring x1, Cleaning Brush x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
