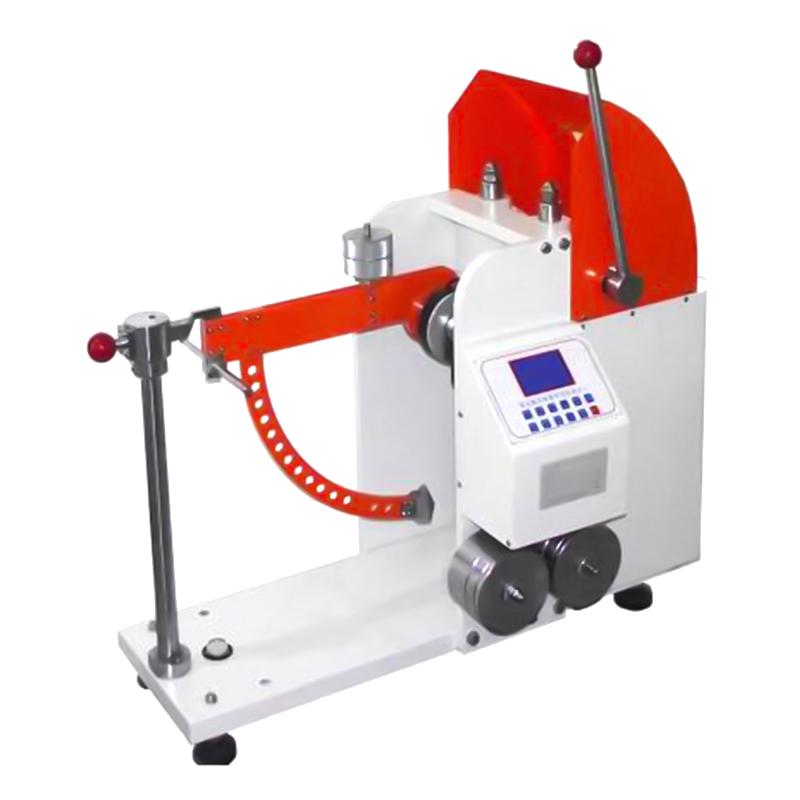

Essence Instrument LD-CC-D Cardboard Puncture Strength Tester

LD-CC-D

Cardboard Penetration Strength Tester

Introduction

The cardboard puncture strength Tester is a special test instrument for the puncture resistance (puncture strength) of corrugated cardboard. Measure the puncture resistance (joule) of corrugated cardboard samples, understand the puncture resistance of corrugated cardboard boxes, and simulate the damage to the box when it is violently hit by other boxes or cone-shaped objects during handling and transportation.

This instrument is designed according to the principle of energy conversion. A triangular prismatic pyramid designed and produced according to standard geometry is installed on a pendulum of special shape. The energy consumed is the puncture strength of the sample.

Structural advantage

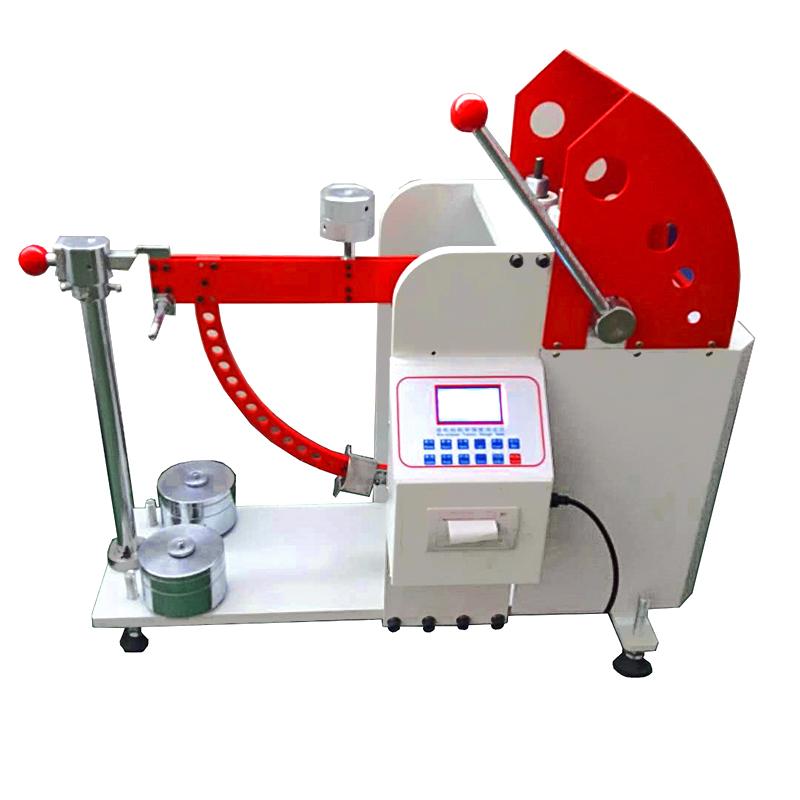

1. The instrument is mainly composed of frame, base, splint device, pendulum device, release device and control box and other components;

2. The instrument has the characteristics of fast pressing, automatic reset of the operating handle, reliable safety protection, liquid crystal display, and thermal printer.

3. The instrument has the characteristics of compact structure, complete functions, convenient operation, stable performance, and reliable safety protection.

4. It has a wide range of applications, especially cardboard, and is an indispensable and commonly used instrument for enterprises and departments such as cardboard and carton production, scientific research and commodity inspection.

Features

• Strong steel structure to avoid energy loss caused by vibration during the test;

• 90-degree bow-shaped swing arm; triangular pyramid-shaped impact head (produced in accordance with international standards);

• Separation mechanism with protection system, safety protection shield; self-tightening and anti-loosening clamp with adjustable pressure;

• Automatic measurement, statistics, printing of test results, and data storage function;

• Mechatronics modern design concept, compact structure, elegant appearance, easy maintenance.

• It can be connected to computer software, and has the functions of real-time display of burst curve and data analysis management, saving, printing and other functions.

Standards

ISO3036 "Determination of Puncture Strength of Cardboard"

GB/T2679.7 "Determination of Cardboard Puncture Strength"

TAPPI T803《Puncture test of container board》

Packing list：complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
