Essence Instrument LD-OY Spot Printing Gravure Ink Proofer

SE
For gravure printing Printing ink proofing, such as water, solvent Printing ink; using circular pressing mode operation, scraper pressure, speed adjustable
$5799.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

JingHuaYiQi LD-OY Gravure Ink ProoferSPEC

JingHuaYiQi LD-OY Gravure Ink ProoferDetails

JingHuaYiQi LD-OY Gravure Ink ProoferPacking list

SKU
NB028459
Total power consumption
450W
Power
220V 50Hz
Dimensions
500*700*300mm
Weight
100kg
Gravure cylinder length
200mm
Gravure cylinder diameter
110mm
Roller length
180mm
Cots Specifications
Ø220mm
Proofing effective area
60 * 108mm/grid (10%, 20%, 30%, 40%, 50%, 60%, 70%, 80%, 85%, 90%, 95%, 100%, grayness)
Standard anilox roller
20um,25um,30um,35um,40um,45um,50um,55um
LD-OY
Gravure Ink Proofer
For gravure printing Printing ink proofing, such as water, solvent Printing ink; using circular pressing mode operation, scraper pressure, speed adjustable

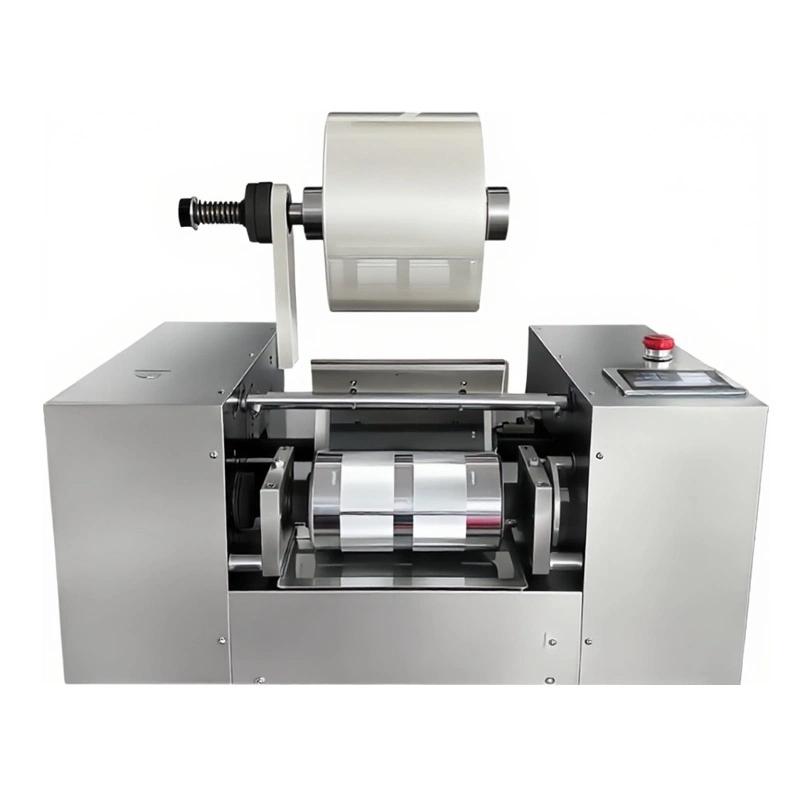

Essence Instrument LD-OY Spot Printing Gravure Ink Proofer Picture

Introduction

1. Electric pressure system.

2. Run in circle pressing mode

3. Printing pressure (0-4mm), printing speed 0-100 meters (approximately), low-precision overprinting is possible.

4. The pressure and speed of the printing squeegee can be adjusted, and the computer program control system.

5. Suitable for gravure printing ink proofing, (water-based, solvent-based ink) easy to use.

6. Use a Spectrophotometer to detect ink color.

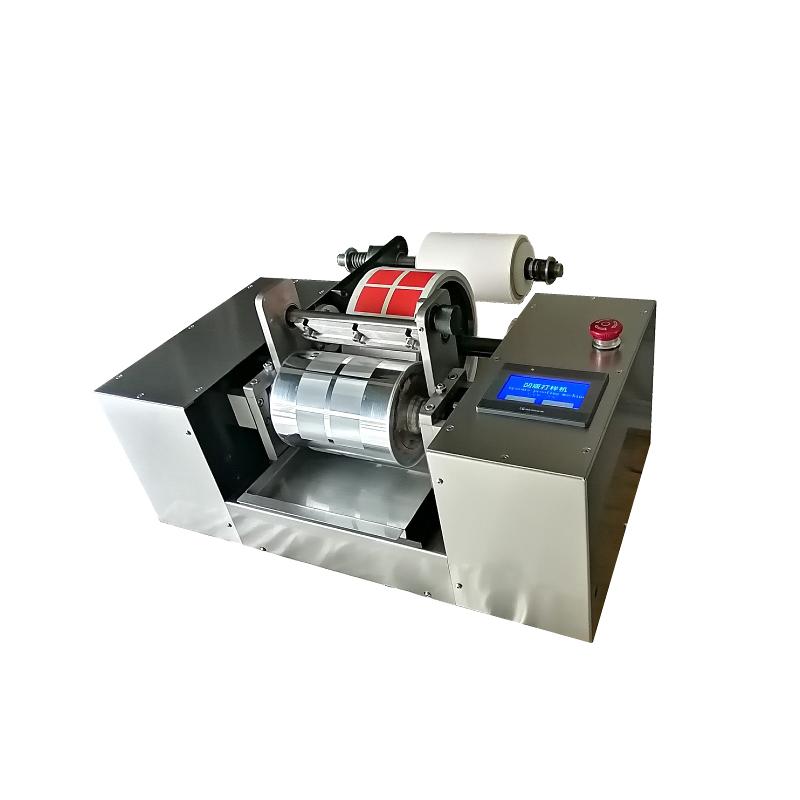

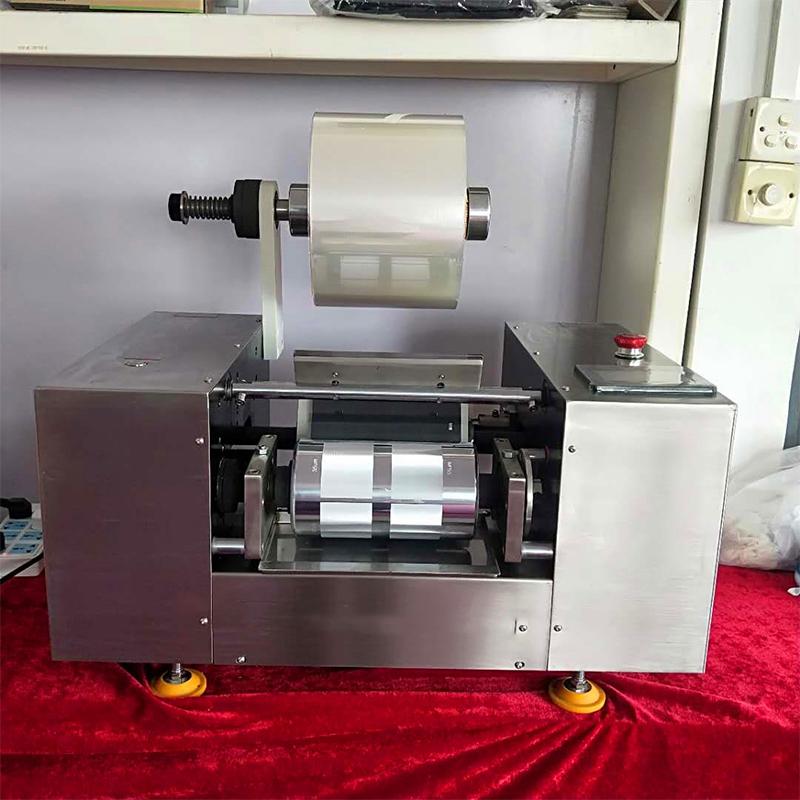

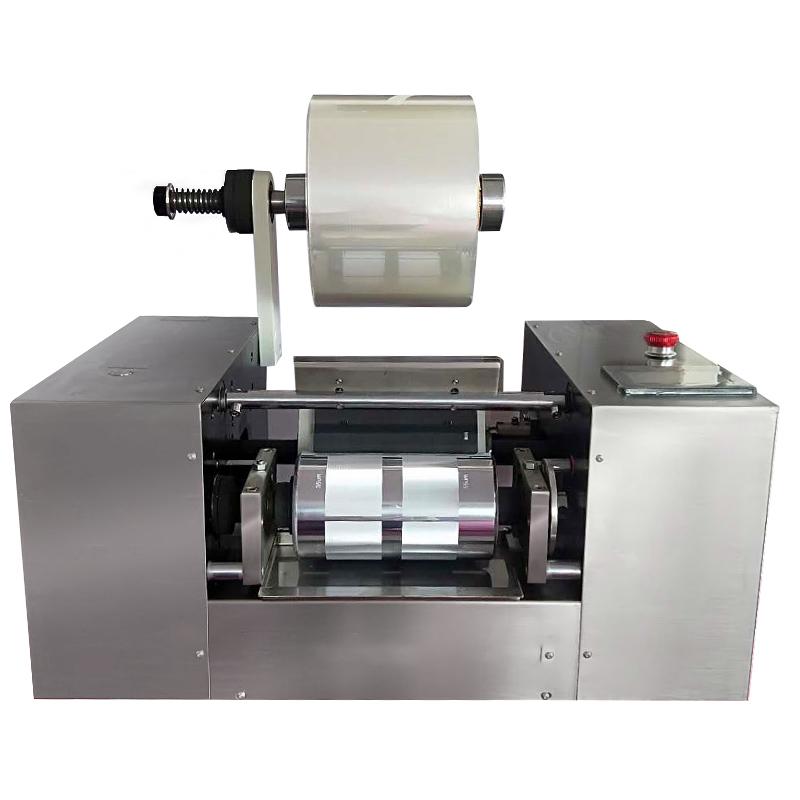

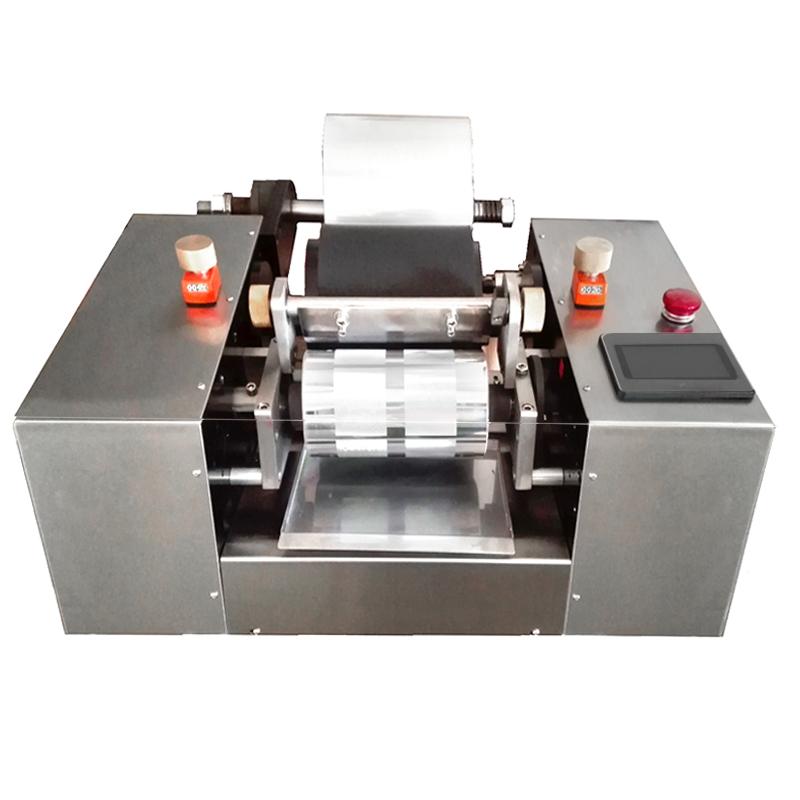

Essence Instruments JH-OY Gravure Ink Proofing Machine Details Figure 1

FAQ
QI want to sample Water-based ink, which device is suitable?
A LD-OY gravure plate Ink Proofer specifically supports Water-based ink testing, the electric pressure system can precisely control the printing effect, and the proofing area covers from 10% to 100% gray scale, which is convenient for you to quickly compare Color performance.
QCan this Proofer do an overprint test?
A LD-OY supports low accuracy overprinting function, standard multi-specification anilox roller (20-55um), with spectrophotometer detection, can simulate the actual printing overprinting effect, especially suitable for inks color scheme and printability verification.
QIs the rotation angle adjustable? Start-up time (time required from 0 to set speed)? How to clean? How to determine the pressure?
A Start-up time: 0-50 meters/minute (about 3 seconds) 1.5 turns/each proofing, anilox roller circumference: 439.6mm, width: 180mm; 60LPI (60 mesh) dot depth about 15-18 wire; printing pressure and doctor blade pressure can be adjusted by air pressure valve; cleaning: let the net roller roll up, scrub with sponge brush edge.
QSingle parameter version, the ink load is required to be about 50ml/m2, and the shape of the mesh has no specific requirements. Can it be used? Mesh 60lpi
A Mesh roller can be customized, pneumatic gravure plate
QIs the 60 mesh type quadrilateral or hexagonal, pyramid or prism?
A Quadrilateral diamond dot
QDo you have any requirements for inks viscosity when proofing?
A Inks viscosity (generally 3 #cup 15-20 seconds viscosity), low viscosity may appear tears, low viscosity can adjust the speed with.
QHow long is the gravure plate Ink Proofer?
A Hello, the length of the gravure plate roller is 200mm.
QHow long is the rubber roller of the JH-OY concave sample proofing machine?
A Hello, the length of the rubber roller is 180mm.
QMeet GB/T22365 gravure plate Ink Proofer
A JH-OY gravure plate Ink Proofer, please refer to it.
QI use solvent Printing ink, can I choose this proofing?
A Hello, it's OK.
