PNSHAR PN-PT6A Paper and Cardboard thickness Tester pointer/0.01mm

PNSHAR PN-PT6A Paper and Cardboard thickness Tester Measurement range 0-4mm, Graduation 0.01mm, contact pressure 100 +/- 10 kPa, contact area 200 +/- 5 mm2, measurement head pointer dial, measurement parallelism ≤ 0.005mm
Model：
Certificate
Contact
Details SPEC VIDEO CAT
Similar products

PNshar PN-PT6A Paper and Cardboard thickness TesterSPEC

PNshar PN-PT6A Paper and Cardboard thickness TesterDetails

PNshar PN-PT6A Paper and Cardboard thickness TesterPacking list

SKU
NB028471
Measurement range
0~4mm
Resolution
0.01mm
Contact Pressure
100±10kPa
Contact area
200±5mm²
Measurement head
Pointer dial meter
Measurement plane parallelism
≤0.005mm
Dimensions
165 * 125 * 175Mm (excluding watch head)
Weight
About 6kg
PN-PT6A
Paper and Cardboard thickness Tester

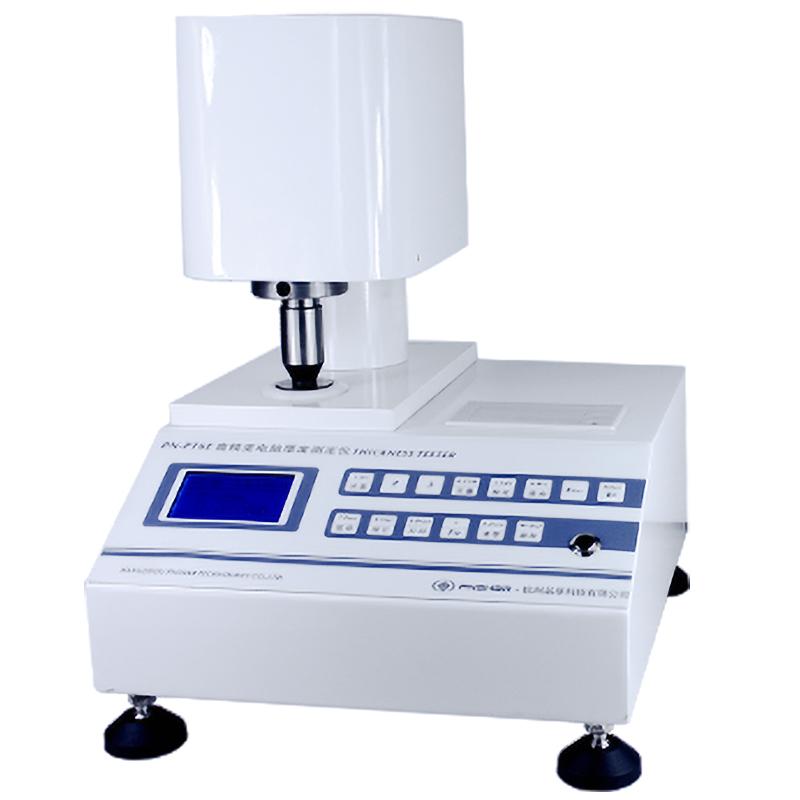

PNSHAR PN-PT6A Paper and Cardboard thickness Tester pointer/0.01mm Picture

PN-PT6 paper and cardboard thickness Tester is a mechanical paper and cardboard thickness testing instrument designed and developed by our company according to the national standard GB/T451.3, which is mainly suitable for all kinds of single-layer or multi-layer paper and cardboard, not suitable for corrugated cardboard, and is an indispensable measuring instrument for cardboard, carton production, scientific research and commodity inspection and other enterprises and departments.

Enforce the standard

GB/T 451.3、QB/T 1055、ISO 534

Serial models

Projects PN-PT6APN-PT6B PN-PT6CPN-PT6D
Measuring range0-4mm
Graduation value0.01mm 0.001mm
Contact pressure100±10 kPa
Contact area200±5 mm2
Measuring gaugesDial indicator of the pointerDigital dial gaugePointer dial indicatorDigital dial indicator
Measure parallelism≤0.005mm
Dimensions  165×125×175(mm)
Instrument weightApprox. 6kg
FAQ
QDo you have the paper and Cardboard thickness testers required by the QB/T2693 standard?
A This PN-PT6A paper and Cardboard thickness tester will do.
