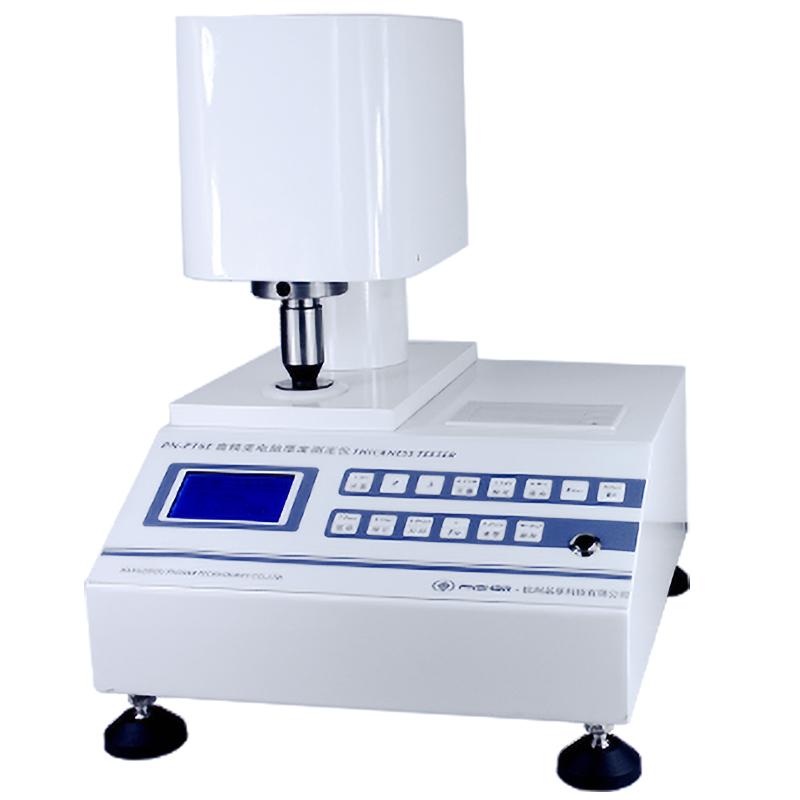

PNSHAR PN-PT6E High Precision Computer Thickness Tester with Printing

Measurement range 0~20mm, resolution 0.001mm, measurement plane parallelism ≤ 0.035mm, contact area 10 +/- 0.2cm ², contact pressure 20 +/- 0.5kpa, probe descent speed 2~ 3mm/s, Display mode Chinese and English menu interface, printing function modular thermal printer.
Model：
Certificate
Contact
Details SPEC VIDEO CAT

PNshar PN-PT6E High precision computer thickness TesterSPEC

PNshar PN-PT6E High precision computer thickness TesterDetails

PNshar PN-PT6E High precision computer thickness TesterPacking list

SKU
NB028475
Power supply Voltage
AC220V±10%    2A  50Hz
Error of indication
±0.3%
Indication variability
≤0.3%
Measurement range
0~20mm
Resolution
0.001mm
Measurement plane parallelism
≤0.035mm
Contact area
10±0.2cm²
Contact Pressure
20±0.5kpa
Probe descent speed
2~3mm/s
Display mode
Chinese and English menu interface
Print function
modular integrated thermal printer
Operating Environment
Indoor temperature (20 +/- 10) ℃; Relative Humidity < 85%
Dimensions
320*360*480mm
Weight
About 23kg
PN-PT6E
High precision computer thickness Tester
Measurement range 0~20mm, resolution 0.001mm, measurement plane parallelism ≤ 0.035mm, contact area 10 +/- 0.2cm ², contact pressure 20 +/- 0.5kpa, probe descent speed 2~ 3mm/s, Display mode Chinese and English menu interface, printing function modular thermal printer.
PNSHAR PN-PT6E High Precision Computer Thickness Tester with Printing Picture

PN-PT20E high-precision computer thickness Tester is an electronic corrugated cardboard thickness testing instrument designed and developed according to the national standard GB/T6547, suitable for all kinds of corrugated cardboard, the instrument is a mechatronics product, using modern mechanical design concepts and ergonomic design criteria, novel design, easy to use, excellent performance, beautiful and generous.


PN-PT20E corrugated cardboard Thickness Gauge adopts high-precision displacement sensor, and the instrument has test, conversion, display, memory, printing, and data processingFunction, it is a satisfactory test equipment for papermaking, packaging, scientific research and product quality supervision and inspection and other industries and departments.


Enforce the standard

GB/T 6547、ISO3034

FAQ
QDo you have the high precision computerized thickness tester required by the ASTMF2251 standard?
A This PN-PT6E high-precision computer thickness tester will do.
