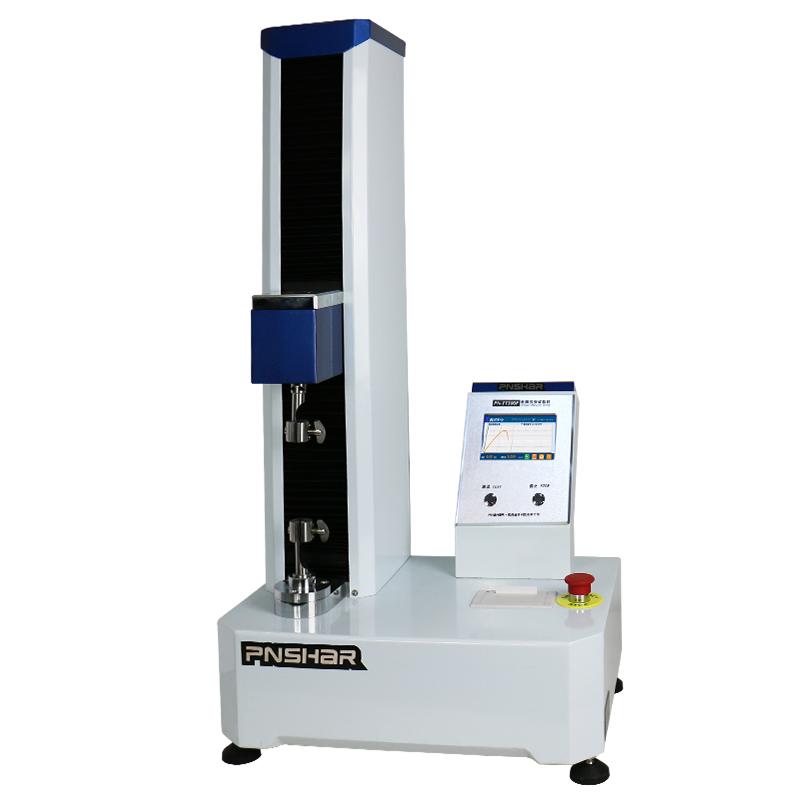

PNSHAR PN-TT300 Computer Tensile Testing Machine 0.3~ 30N

PN-TT300（30N）

Computer Tensile Testing Machine

PN-TT300 Computerized Tensile Tester is a tensile strength and elongation testing device designed and developed according to the standards GB/T12914, GB/T2792 and ISO1924-2 for paper, cardboard and other low-strength sheet materials. Detection principle: the sample is clamped straight between the two chucks, the two chucks move relative to each other at a certain speed, the force value is collected by the force-sensitive sensor located on the moving chuck, and the displacement is calculated through time and speed, so as to obtain the performance indicators such as tensile resistance and peeling of the sample.

The device adopts a vertical structure, the chuck spacing can be set arbitrarily within a certain range, and the stretching stroke is large. It is suitable for the determination of tensile strength, elongation and tensile energy absorption of paper, cardboard, plastic film and other non-metallic materials. It can measure paper tensile strength, tensile strength, elongation, crack length, tensile energy absorption, tensile index, tensile energy absorption index, 180° peel strength, heat sealing strength, etc.

a. Measure the tensile strength, tensile strength, peel strength and elongation of aluminum foil and aluminum-plastic tape;

b. Measure the tensile strength, elongation and tensile of plastic film;

c. Measure the heat sealing strength, tensile strength and peeling strength of food bags;

d. Measure the adhesive strength, edge banding strength, tensile strength and elongation of the towel;

e. Measure the peel strength and tensile strength of pressure-sensitive adhesive tape;

f. Measure the breaking strength and elongation of synthetic fiber filament;

The instrument has the functions of testing, conversion, adjustment, display, memory, printing and other parameters included in the standard. With data processing function, the statistical results of various data can be directly obtained, and can be automatically reset, easy to operate, easy to adjust, and stable performance.

 Execution standards

GB/T12914、ISO1924-2、TAPPIT494、GB/T2792

 Product features

1. Two independent test procedures for tensile resistance and peeling to meet the needs of different customers;

2. Intelligent design of stroke protection, overload protection, over-range alarm function and automatic cleaning to ensure the safety of users;

3. It can display pressure and deformation curve graph, real-time display of pressure resistance, deformation and other information;

4. Equipped with RS232 data interface, which is convenient for external link and data transmission between the embedded system and the computer;

5. Built-in thermal printer, the report can be printed directly after the test;

6. Support PNSHARQMS quality management system, one-click operation, test data directly transmitted to the management system, and finally generate a comprehensive test report according to the product.

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
