LANDTEK HM6560 Leeb Hardness Tester Rapid inspection of multiple measurement parts of large workpieces

HM6560

Leeb Hardness Tester

Large workpiece hardness testing; 200-900HLD range; External Impact device, supports user calibrating, six Hardness units are transferred to each other, and 50 sets of data can be stored; USB and RS232 interfaces; Bluetooth data output can be purchased separately.

Overview of the HM6560 Leeb Hardness Tester

LANDTEK HM6560 Leeb Hardness Tester is a portable Leeb Hardness Tester with external impact device, which can measure hardness values in the range of:200~900HLD, with data storage function, can repeatedly view past test data.The HM6560 Leeb Hardness Tester is powered by a battery and the LCD display displays the hardness data tested.The standard impact device of the HM6560 Leeb Hardness Tester is a D-type impact device, which meets the standard requirements of many Hardness Testers.

Application

HM6560 Leeb Hardness Tester should be used on installed machinery orFailure analysis of assembled components, mold cavities, heavy workpieces, pressure vessels, turbine-generator sets and their equipment, workpieces with very narrow test space, bearings and other parts, requiring formal original records of test results, material differentiation in metal material warehouses, and rapid inspection of multiple measurement parts of large workpieces.

HM6560The Leeb Hardness Tester meets the standard

Technical Conditions for Leeb Hardness Tester ZB N71 010-90

Leeb Hardness Tester specification JJG 747-91

Test Methods for Leeb Hardness of Metals GB/T 17394-1998

It also complies with ASTM A956

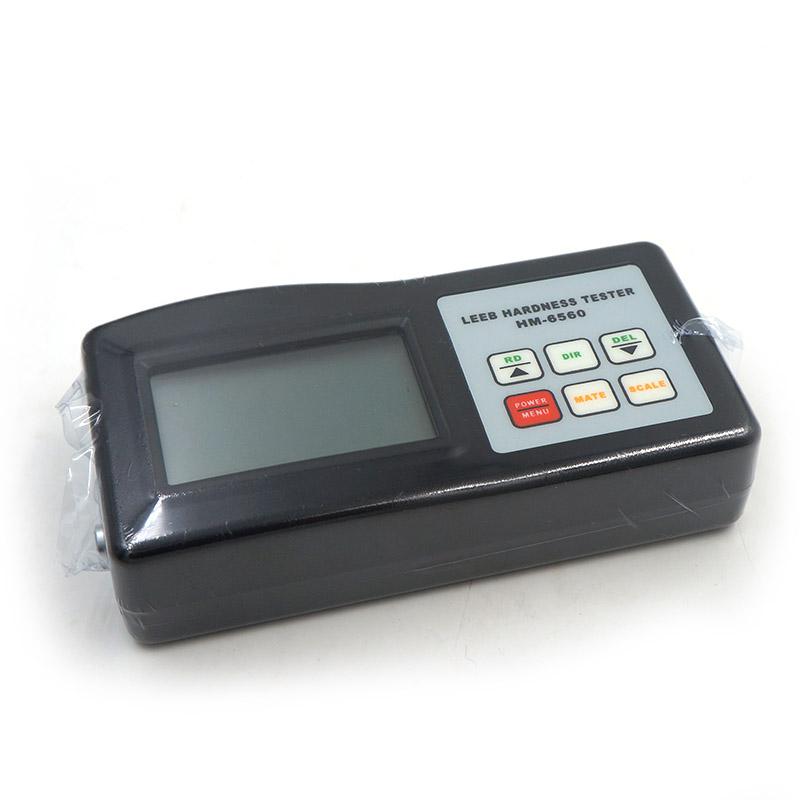

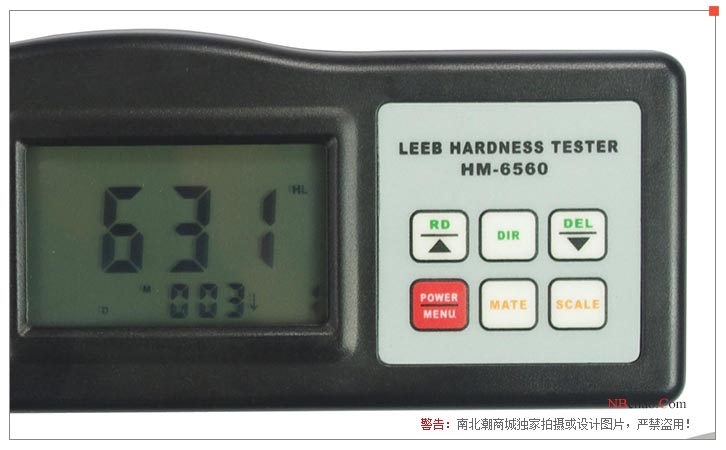

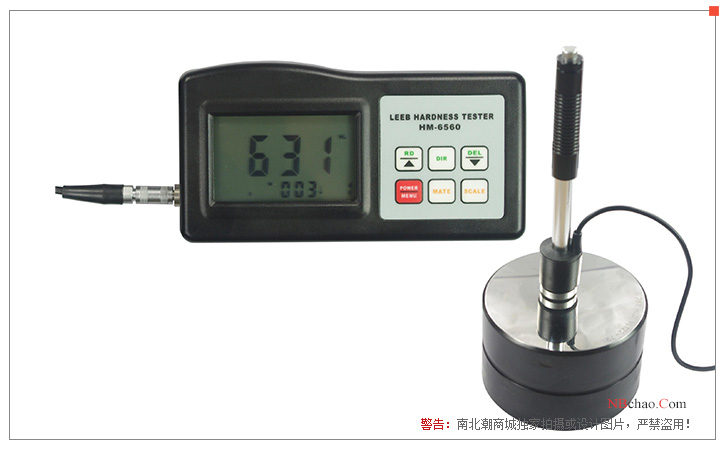

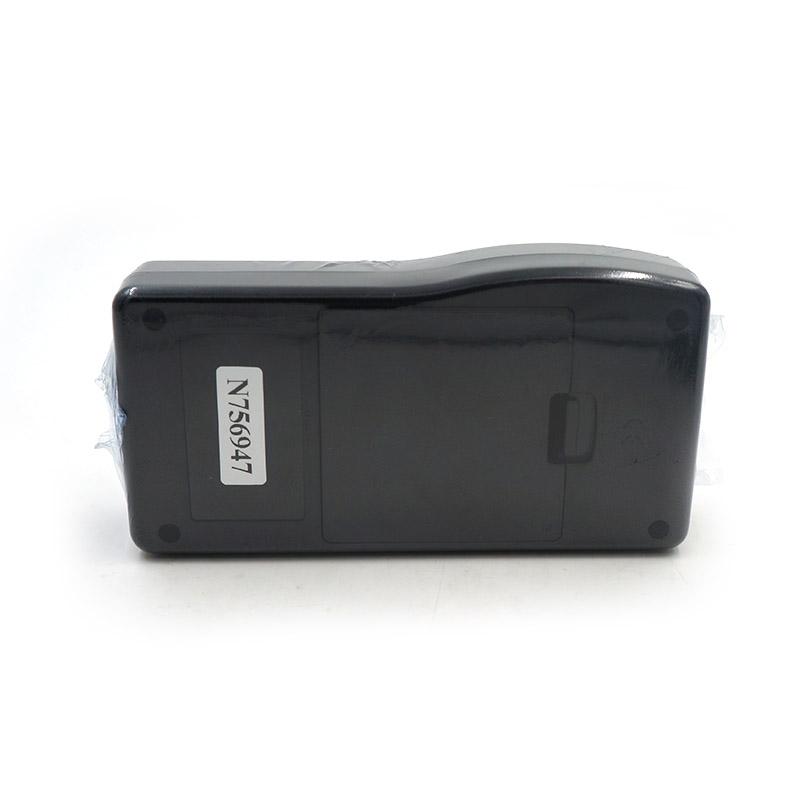

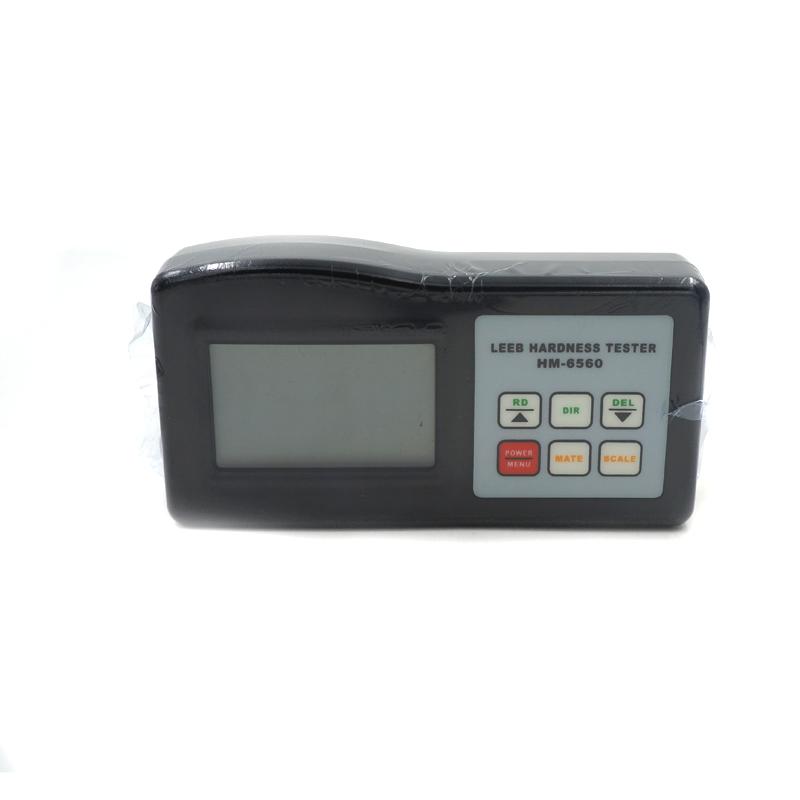

HM6560 real shot

HM6560Leeb Hardness Testerpeculiarity

* With RS232 interface, convenient for computer communication.

* Conversion between six hardness (HL, HRC, HRB, HB, HV, HS) is possible.

* Small size, easy to use in a small space.

* HM6560 Leeb Hardness TesterThe test material and test direction can be selected via the keyboard.

* The results of each test can be displayed repeatedly, and gross errors can be removed.

* Allows users to calibrate to make measurements more accurate.

* Manual and automatic shutdown function.

* With low battery Voltage indication function.

*HM6560 Leeb Hardness TesterIt can store 50 sets of measured hardness values and test status, including material, test direction, hardness and other information.

* "USB cable output" and "RS-232 cable output" are used to communicate with the PC.

* Bluetooth Bluetooth data output options available.

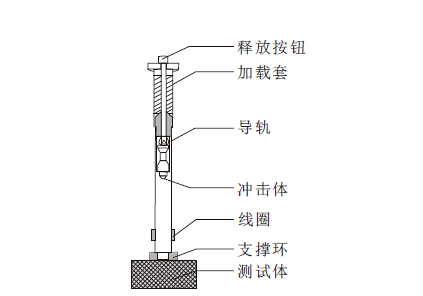

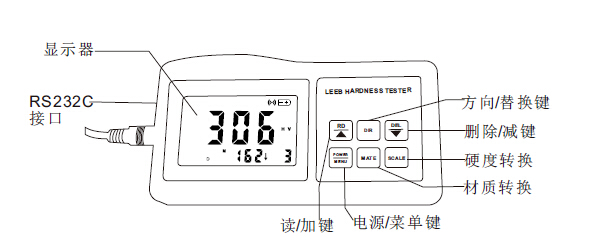

HM6560 Parts Introduction

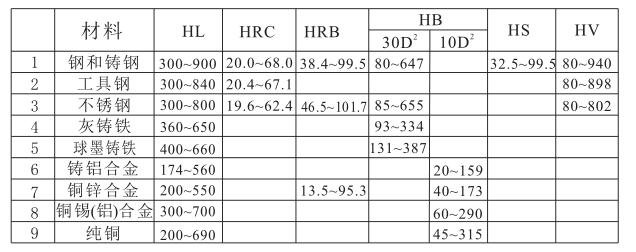

Leeb Hardness Tester measurement and conversion range

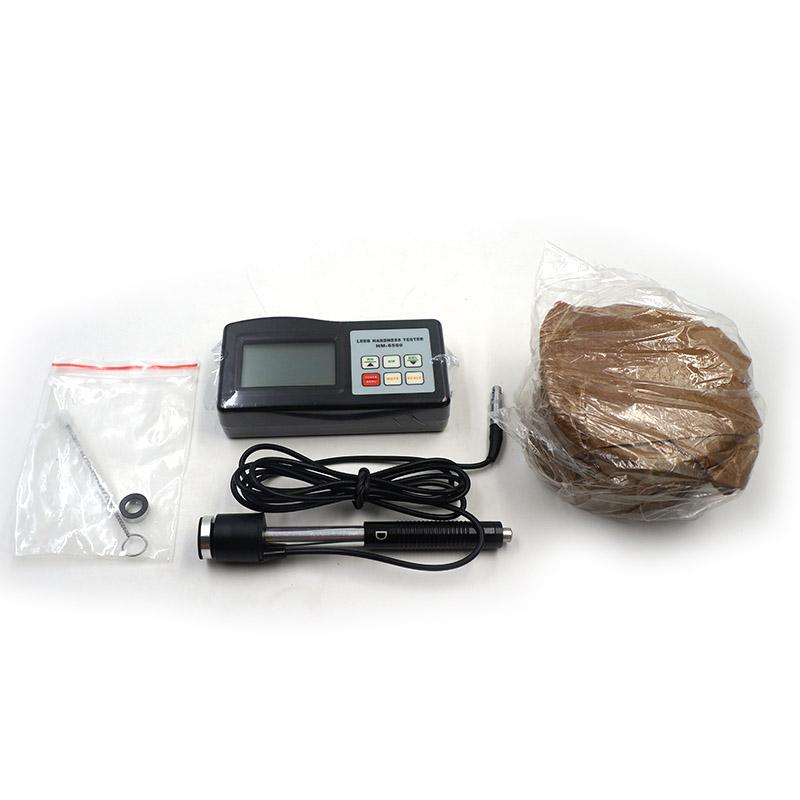

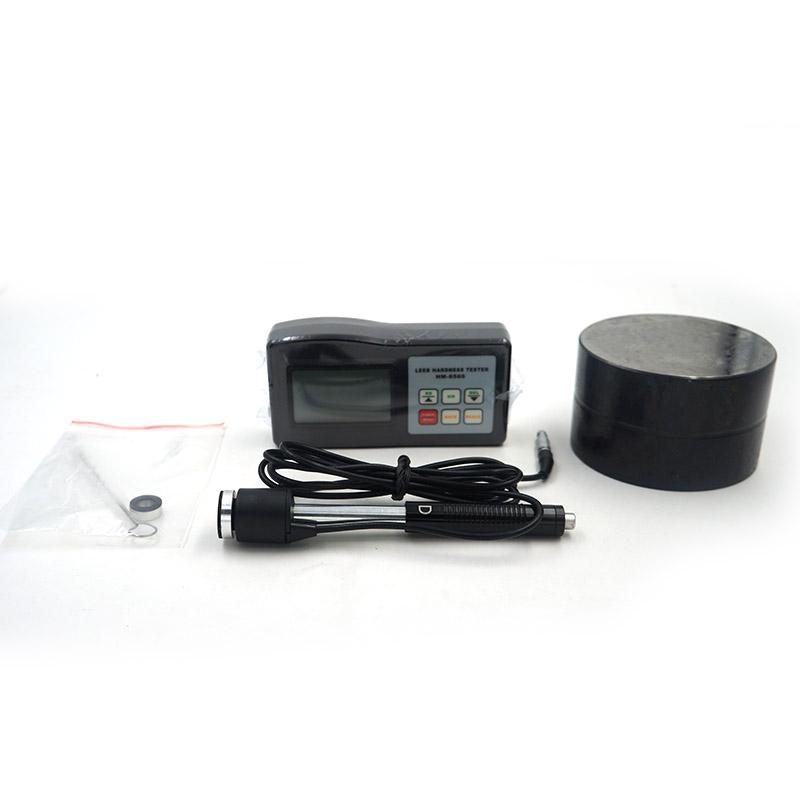

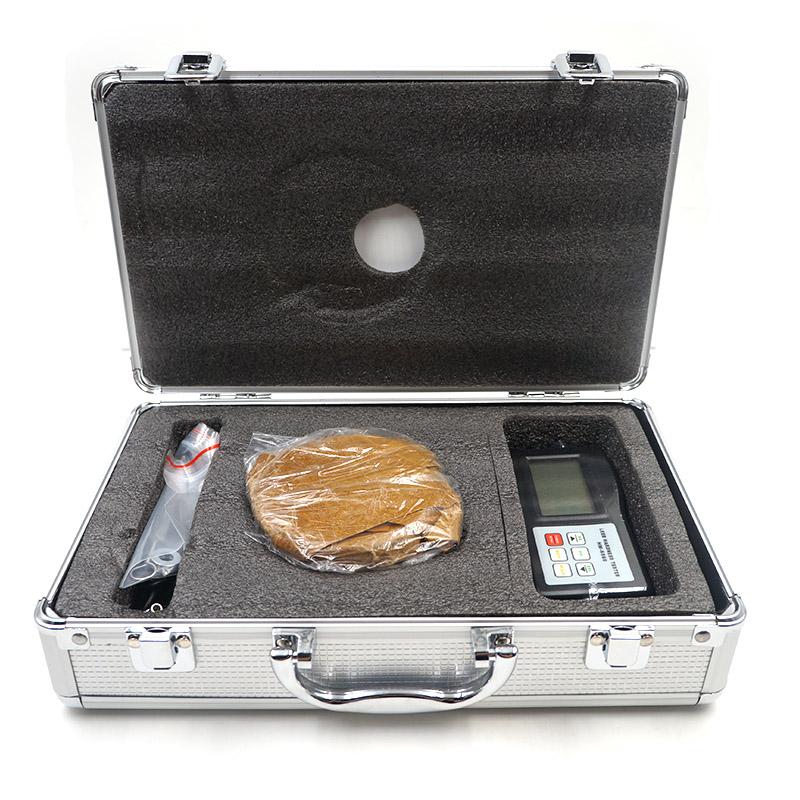

Packing list：Host x1, Standard Hardness Block x1, Measurement Sensors x1, Portable Box x1, Manual x1, Small Support Ring x1, Cleaning Brush x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
