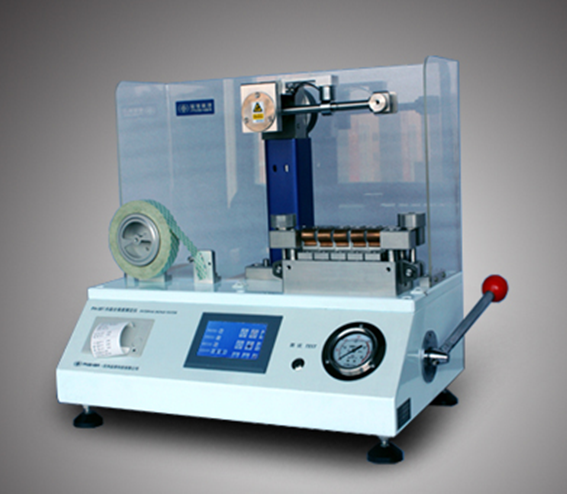

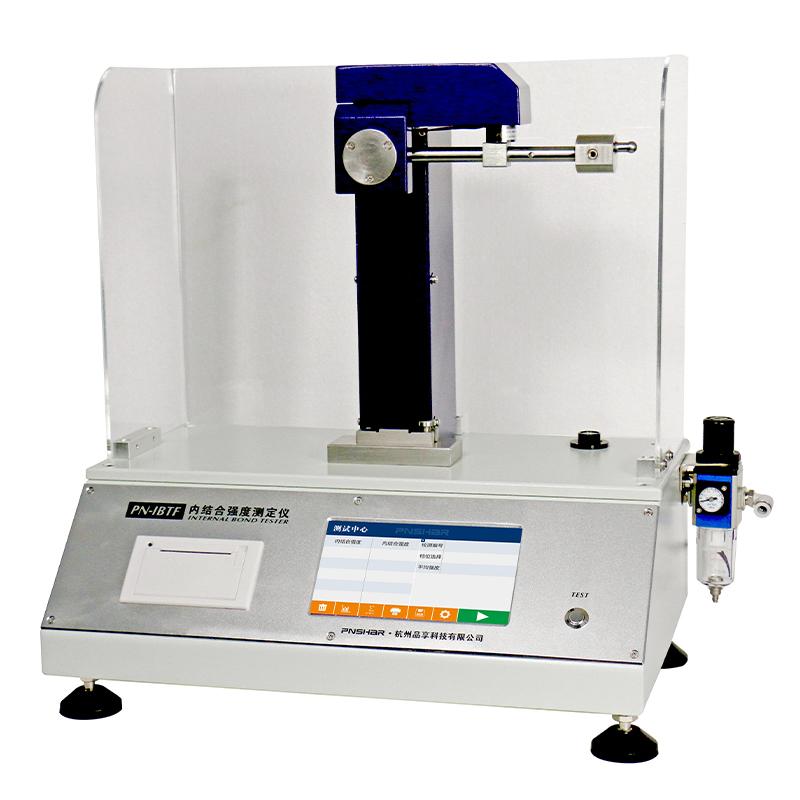

PNSHAR PN-IBT Internal Bonding Strength Tester

PN-IBT

Internal bond strength Tester

PN-IBT paper and cardboard internal bonding strength Tester is a testing instrument designed and developed according to the national standard GB/T26203. It is mainly suitable for single-layer and multi-layer paper and paperboard, including coated paper and paper and paperboard covered with synthetic polymers, and is not suitable for paper and paperboard with low weight, multi-empty, soft or low density.

The instrument adopts the Scott type internal bond strength testing method, and its detection principle is as follows: the combination of double-sided tape-specimen-double-sided tape forms a sandwich structure, which is pressed between a metal flat anvil and an aluminum block. The pendulum is struck against the inner surface of the upper part of the aluminum block to flip the aluminum block and destroy the specimen in the Z direction. The energy absorbed during the destruction of the specimen is calculated by determining the highest position of the wobble. It is expressed in terms of the energy (J/m2) absorbed during the destruction of a certain area of paper layers. The control of the internal bond strength is very important for processing multi-layer paper and cardboard, and if the internal bond value is low or unevenly distributed, it can lead to problems when the paper and cardboard are tiled in offset presses using adhesive inks; If the bond strength value is too high, it will make processing difficult and increase the cost of the company.

The instrument is a mechatronics product, using modern mechanical design concepts and ergonomic design criteria, using professional high-speed ARM processor carefully and reasonably designed, novel design, easy to use, excellent performance, beautiful and generous. The instrument has the functions of testing, displaying, memorizing, printing and other parameters included in the standard. With data processing function, it can directly obtain the statistical results of various data, and can automatically reset, communicate with the host computer, easy to operate, easy to adjust, and stable performance.

 Execution standards

GB/T26203、TAPPIT-569

 Features

1. The whole machine has strong rigidity and stable structure, which avoids energy loss caused by vibration during the test;

2. Reliable specimen clamping and positioning, reducing the error caused by sampling;

3. The pressure of the sample is read out directly by the pressure gauge;

4. The man-machine interface adopts color touch screen, Chinese and English operating system;

5. It has a computer communication interface, which can communicate with the host computer software (purchased separately).

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
