PNSHAR PN-BSM160 paper Burst Strength Tester

PN-BSM160

Paper Burst Strength Tester

PN-BSM160 paper burst resistance Tester is a paper burst resistance Tester designed and developed by the national standard GB/T 454 and ISO2758. It is suitable for measuring the burst strength (also known as burst strength) of various cardboard and single and multi-layer paper, and is not suitable for composite materials.

Burst resistance refers to the maximum pressure that corrugated cardboard can withstand per unit area perpendicular to the surface of the sample under test conditions, and is an important item to measure the quality of the carton, reflecting the bearing capacity of the carton in the process of handling, loading and unloading, impact and tearing in the process of circulation.

PN-BSM160 paper burst Tester has the functions of testing, conversion, adjustment, display, memory, printing and other parameters included in the standard. With data processing function, it can directly obtain the statistical results of various data, and can automatically reset, easy to operate, easy to adjust, and stable performance.

Enforce the standard

GB/T454、ISO2758、TAPPI T403

Features

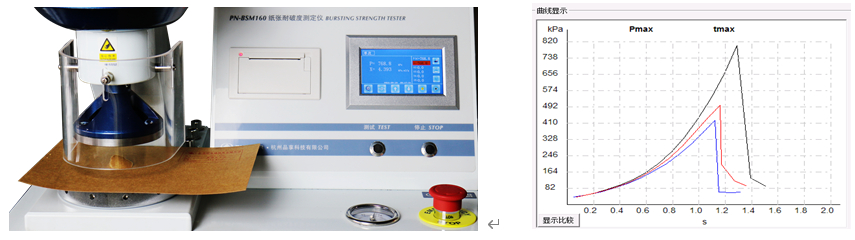

1. Real-time display of force value and deformation curve;

2. It has the function of prompting the unplaced specimen to reduce misoperation;

3. The specimen clamping force is adjustable;

4. Set the parameters in advance before the test, and test with one click;

5. After the test is completed, the high-speed return will improve the test efficiency;

6. With emergency stop button, with over-range alarm function;

7. It has statistical function, showing the mean value, standard deviation and coefficient of variation;

8. Units can be switched: kPa, kgf/cm2, lbf/in2;

9. Touch screen display, easy to switch between Chinese and English;

10. Modular all-in-one thermal printer, fast printing speed, convenient paper change;

11. It can be connected to computer software, and has the functions of real-time display of compression curve and data analysis management, saving, printing and so on.

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
