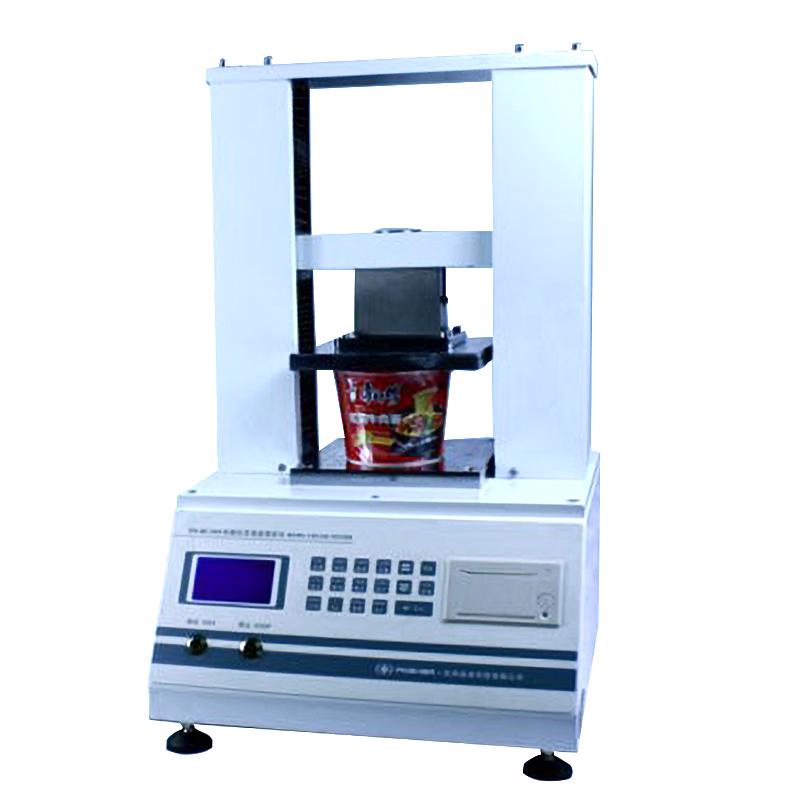

PNSHAR PN-BC300 paper bowl compressire strength Tester
PN-BC300
PNshar PN-BC300 Paper bowl compressire strength TesterSPEC
PNshar PN-BC300 Paper bowl compressire strength TesterDetails
PNshar PN-BC300 Paper bowl compressire strength TesterPacking list
- SKU
- NB028532
- Power supply Voltage
- (100~240)V AC 2A 50/60Hz
- Error of indication
- ±1%
- Indication variability
- <1%
- Force resolution
- 0.1N
- Force range
- 25~3000N
- deformation error
- ≤±1mm
- Plate size
- 200*200mm
- Plate parallelism
- ≤0.4mm
- Working Travel
- 5~200mm
- Pressurization speed
- 12.5±2.5mm/min
- return speed
- 5~120mm/min
- monitor
- 240 × 128 dot matrix LCD screen, Chinese and English menus
- printout
- modular integrated thermal printer
- Communication interface
- RS232 (std.)/USB (optional)
- Operating Environment
- Indoor temperature (20 +/- 10) ℃; Relative Humidity < 85%
- Dimensions
- 420*420*730mm
- Weight
- About 56kg

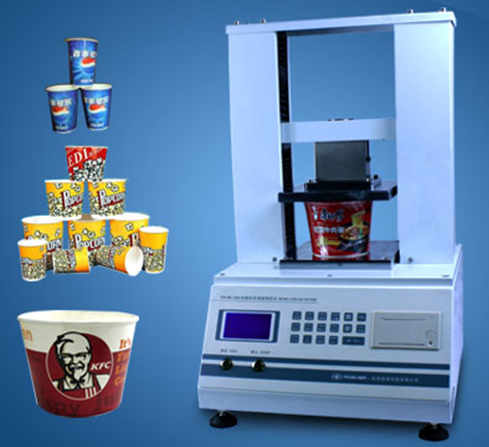

Paper bowl compressive strength Tester is a testing instrument designed and developed by our company according to the national standard GB/T27591 to test the compressive strength performance of paper bowls, cartons, paper cups and other paper containers, which is mainly suitable for the detection of compressive strength and deformation of various industrial paper bowls, paper cups and other types of small containers.
The instrument is a mechatronics structure. Using modern mechanical design concept and microcomputer processing technology for careful and reasonable design, the instrument adopts the upper pressure plate can be moved, the lower pressure plate is fixed, and the measurement accuracy is high. It has a powerful data processing function, which can directly obtain the statistical results of various data, and has the function of pressure curve display.
Execution standards
GB/T27591
Features
1. The test is over, and the high-speed return is made；
2. Adopt stepper motor servo control;
3. Over-range alarm function to protect precision sensors;
4. Automatically calculate the test results, with statistics, query and printing functions;
5. Adopt 24-bit high-precision AD converter (resolution up to 1/10,000,000) and high-precision load cell to ensure the rapidity and accuracy of instrument force data acquisition;
6. It can display pressure and deformation curve graph, real-time display of pressure resistance, deformation and other information;
7. Bilingual operation menu (Chinese-English) in Chinese and English, and can be switched at any time;
8. It can be connected to computer software for software control (control software is purchased separately).
