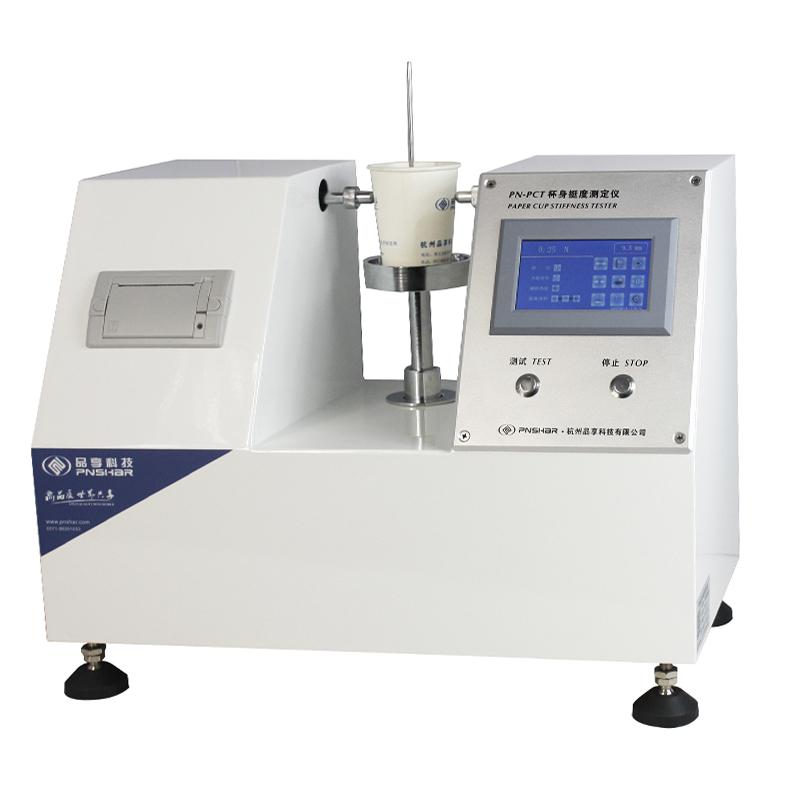

PNSHAR PN-PCT Cup stiffness Tester

PN-PCT

Cup stiffness Tester

N-PCT cup stiffness Tester is a paper cup stiffness testing instrument designed and developed according to the national standard GB/T 27590, which is suitable for all kinds of paper cups containing cold and hot drinks and ice cream coated with paraffin, polyethylene film and other substances on the surface. It is a physical performance testing instrument required by paper cup production enterprises, food enterprises and quality inspection departments.

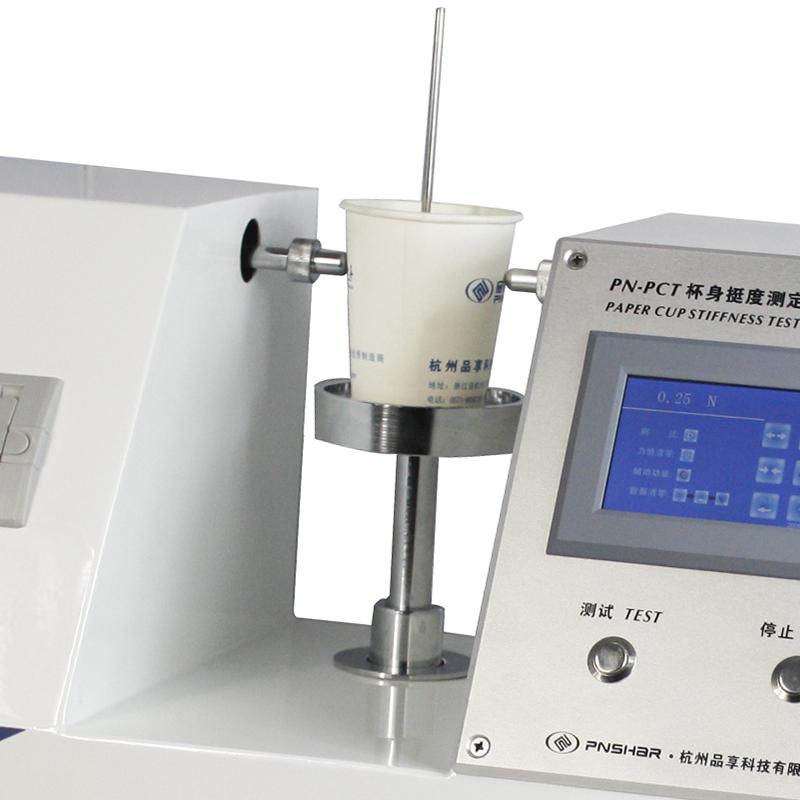

The test principle of this instrument: put the pressure rod block (5) into the sample cup (3), place it on the movable bench (1) of the cup body stiffness Tester together with the sample cup, make the left measuring head (6) and the right measuring head (2) (the right measuring head is connected to the sensor) just touch the side wall of the cup, adjust the movable bench so that the vertical distance between the probe and the bottom of the cup is about two-thirds of the cup height, and make the cup body seam (4) of the paper cup to be measured face the Tester. Start the instrument and test the stiffness of the cup.

 Technical features

1. Adopt new module circuit design, with WIFI Internet of Things function. After networking, the test results can be saved to the cloud server, and the report can be queried and generated through the special ERP software.

2. One-click operation in the experimental process to avoid human error;

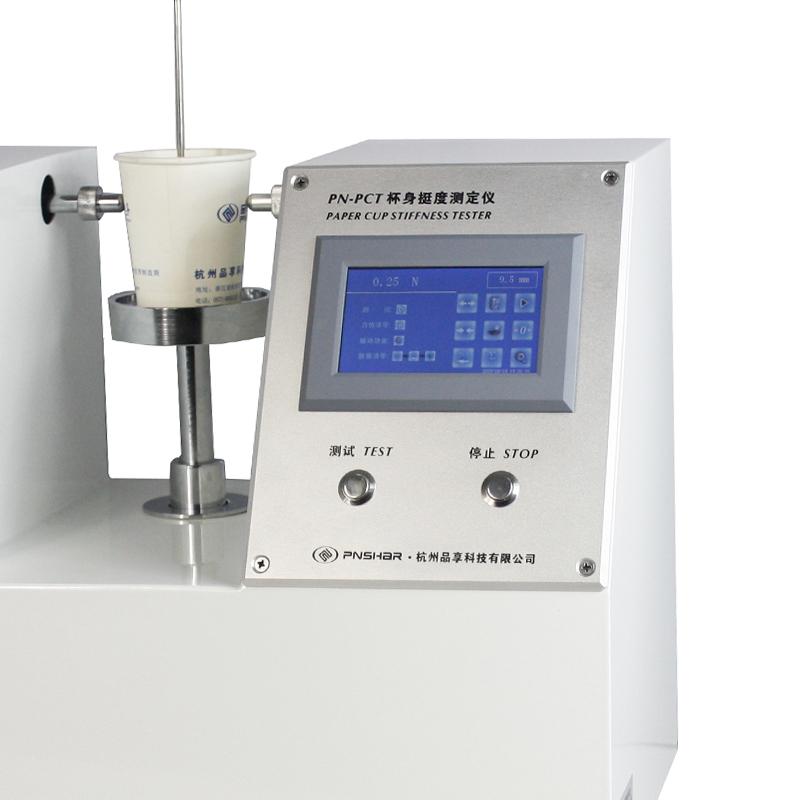

3. Touch screen display, touch the corresponding position to operate, easy to use;

4. The relative distance between the two measuring heads can be pre-set on the touch screen to save test time;

5. Built-in printer, convenient for the output of test data;

6. The movable bench can be lifted and locked, suitable for samples of different heights;

7. The instrument has the alarm function of over-range, when 50% of the range is exceeded, the alarm will be made to protect the sensor;

8. It has a statistical function, showing the mean, maximum, minimum, standard deviation and coefficient of variation.

 Execution standards

GB/T 27590、QB/T 2294、JJG157-2008

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
