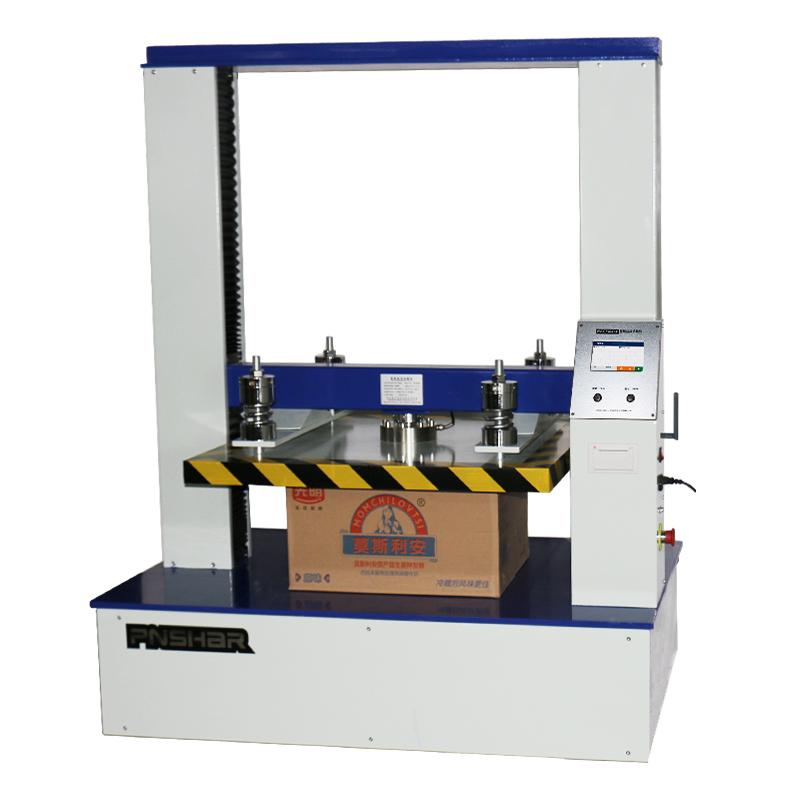

PNSHAR PN-CT50KC Box Compression Tester

PN-CT50KC

FCL compressive testing machine

PN-CT50KC FCL compressive testing machine is a domestic (CN) cost-effective large-scale corrugated cartons, honeycomb cartons and other packaging compressive and stacking test testing instruments designed by our company, its performance parameters and technical indicators meet the provisions of GB/T 4857.3, GB/T 4857.4 and other standards, mainly used for compressive strength tests of various small and medium-sized corrugated boxes with compressive strength less than 50kN or other materials, such as large corrugated boxes, large honeycomb cartons, General turnover packaging boxes, sports equipment packaging boxes, refrigerator packaging boxes, air conditioning packaging boxes, washing machine packaging boxes, mechanical parts packaging boxes, motorcycle packaging boxes, bicycle packaging boxes, grain and oil packaging boxes, solar packaging boxes, etc.

The instrument has three independent modes of operation:

1. Strength test: measure the ultimate compressive strength and deformation of the box;

2. Constant value test: the overall performance of the box can be detected according to the set pressure and deformation.

3. Stacking test: Simulate the stacking state of the warehouse, and the stacking test under different conditions can be carried out.

 Execution standards

GB/T 4857.3、GB/T 4857.4、ISO 12048、ISO 2234、QB/T 1048

 Features

1. Real-time display of pressure and deformation curves;

2. Pre-set parameters, one-button measurement, simple and effective operation;

3. It has a statistical function, showing the mean value, standard deviation and coefficient of variation;

4. Safety device: overload emergency stop button control, up and down limit control, over-range alarm function.

5. The control circuit part adopts modular design, which is easy to maintain;

6. Open structure design, double lead screw, four guide pillars, with reducer to drive belt drive deceleration, good parallelism, good stability, strong rigidity and long service life;

7. Servo motor control, accuracy, low noise, high speed and other advantages;

8. In terms of force detection, the use of high-speed ARM processor, four high-precision force sensors and high-speed and high-precision AD converter with a unique sampling algorithm ensures the real-time and accuracy of sampling, and improves the measurement accuracy of the testing machine.

9. Built-in thermal printer, convenient to print test report;

10. It can be connected to computer software, and the test data can be exported to EXCEL, which is convenient for data saving, analysis and management.

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
