BENTING CBX30B Hot Air Disinfection Box 0.8kw/30L

SE
BENTING CBX30B hot air disinfection box is a dry heat Autoclave with power 0.8kw and Interior size 310 * 310 * 310mm. Temperature range of CBX30B hot air disinfection box is RT + 10~300 ℃, content volume 30L, built-in 6 layers Shelf.
Model：
Certificate
Contact
Details SPEC Con OI

BenTing CBX30B Disinfection boxSPEC

BenTing CBX30B Disinfection boxDetails

BenTing CBX30B Disinfection boxPacking list

SKU
NB028568
Temperature range
RT+10~300°C
Temperature fluctuation
±1℃
Temperature Resolution
0.1℃
Temperature Uniformity
±2.5%
Volume
30L
Interior size
310*310*310mm
Inner chamber material
stainless steel plate
Shelf (std.)
2pcs
Shelves (max)
6pcs
Load per shelf
15kg
Power
AC220V/3.6A
Input power
0.8Kw
Dimensions
460*510*695mm
Net Weight
33kg
Enclosure Material
Cold rolled steel plate, surface resistance painting
Convection mode
Double duct forced convection
Thermal insulation material
aluminum silicate fiber
heater
Stainless steel heating tube
Exhaust port
Inner diameter 28mm * 1, top
thermostat
Digital tube dual row PID
Temperature setting
Tap the four-button settings
Temperature representation
Measuring temperature display: 4-digit digital upper display; setting temperature display: 4-digit digital lower display
Run function
Fixed value operation, Timer operation, automatic stop
Program Mode
optional
Additional features
Deviation correction, menu button lock, power outage compensation, power outage memory, speed control fan
Temperature transducer
pt100
Safety Devices
Overrise alarm
Packing size
550*570*765mm
Gross Weight
37Kg
Shelf (std.)
4pcs
CBX30B
Disinfection box

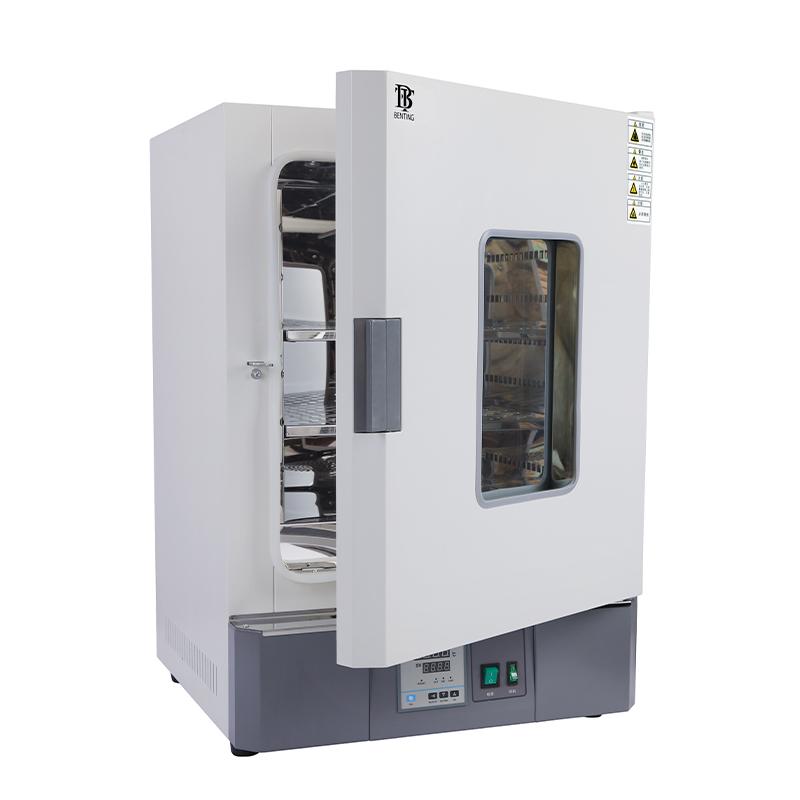

BENTING CBX30B Hot Air Disinfection Box 0.8kw/30L Picture

Features

● Rapid, safe and reliable sterilization.

● Convenient operation, fixed value operation, timing operation, automatic stop.

● Special function keys for temperature setting.

● Auxiliary menu to realize overheating alarm, deviation correction and menu lock.

● Vertical double air duct air jacket, centrifugal forced air supply from turbine, more uniform temperature.

● Adjustable speed fan enables light, fine and powdery samples to be used.

● Forced fan heat dissipation and air intake structure, so that the working temperature of the fan is <50°C, and it can run for a long time.

safety

● Overheating alarm, menu lock, overheating prevention

Parameter comparison

modelrated powerInternal volumePartition layers
BX30B/BX30BE0.8kw30LLevel 6
BX45B/BX45BE1.2kw45L7 floors
BX65B/BX65BE1.6kw65L9 floors
BX125B/BX125BE2.3kw125L13 floors
BX230B/BX230BE3.0kw230L17 floors
Other parameters
WayDual duct forced convection
Operating temperature rangeRT+10～300℃
temperature resolution0.1°C
temperature fluctuation±1℃
Temperature distribution accuracy±2.5%
Interiorstainless steel plate
ExteriorCold-rolled steel sheet with chemical-resistant coating on the surface
Insulation materialAluminum silicate fiber
temperature control methodB type: digital tube double row PID; BE type: liquid crystal double row PID
temperature setting methodTouch four buttons to set
Temperature representationType B: measured temperature display: 4-digit upper display; set temperature display: 4-digit lower display
BE type: Measured temperature display: LCD upper display; Set temperature display: LCD lower display
timer0～9999 minutes (with timing waiting function)
running functionFixed value operation, timing operation, automatic stop
program modeOptional
Additional featuresDeviation correction, menu key lock, power failure compensation, power failure memory, speed regulating fan (BE type: overheating preventer)
sensorPt100
safety devicesOverheating alarm (BE type: overheating preventer)
Partition2 pieces
shelf4 pieces
RemarkGX230B/BE non-adjustable speed fan


FAQ
QThis drying oven can control the temperature of 225 ° C and can hold 30L?
A Yes, CBX30B disinfection box Temperature range 10~ 300 ℃, capacity 30L, to meet your requirements.
