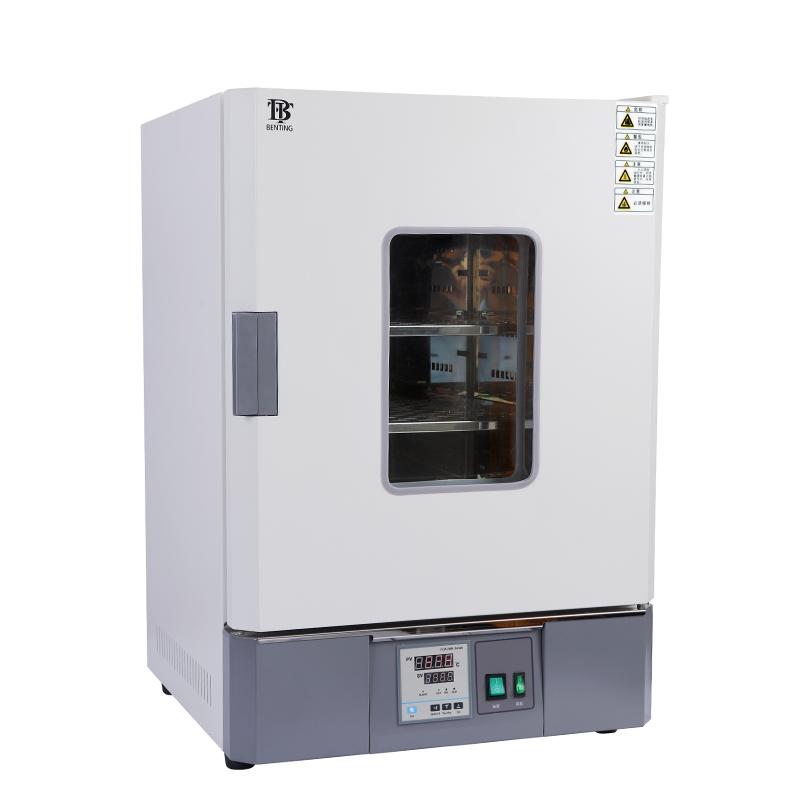

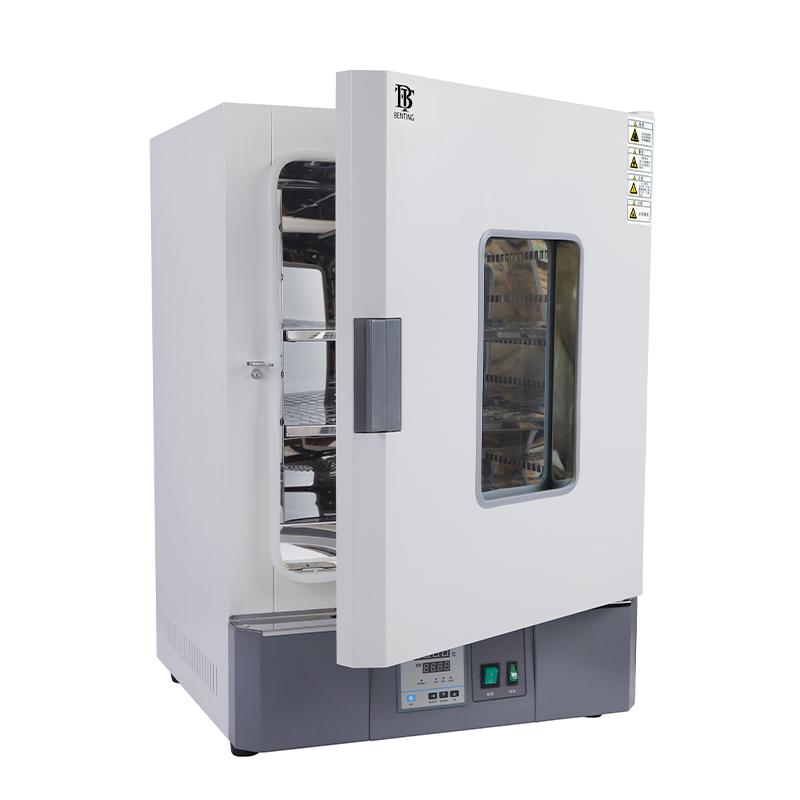

BENTING CBX45B Hot Air Disinfection Box 1.2kw/45L
SEBENTING CBX45B hot air disinfection box is a dry heat Autoclave with power 1.2kw and Interior size 350 * 350 * 350mm. CBX45B hot air disinfection box Temperature range RT + 10~300 ℃, content volume 45L, built-in 7 layers Shelf.
Price: Please contact customer service
Model：
CBX45B
BenTing CBX45B Disinfection boxSPEC
BenTing CBX45B Disinfection boxDetails
BenTing CBX45B Disinfection boxPacking list
- SKU
- NB028569
- Temperature range
- RT+10~300°C
- Temperature fluctuation
- ±1℃
- Temperature Resolution
- 0.1℃
- Temperature Uniformity
- ±2.5%
- Volume
- 45L
- Interior size
- 350*350*350mm
- Inner chamber material
- stainless steel plate
- Shelf (std.)
- 2pcs
- Shelves (max)
- 7pcs
- Load per shelf
- 15kg
- Timer
- 0~9999Min (with Timer waiting)
- Power
- AC220V/5.5A
- Input power
- 1.2Kw
- Dimensions
- 500*550*735mm
- Net Weight
- 37kg
- Enclosure Material
- Cold rolled steel plate, surface resistance painting
- Convection mode
- Double duct forced convection
- Thermal insulation material
- aluminum silicate fiber
- heater
- Stainless steel heating tube
- Exhaust port
- Inner diameter 28mm * 1, top
- thermostat
- Digital tube dual row PID
- Temperature setting
- Tap the four-button settings
- Temperature representation
- Measuring temperature display: 4-digit digital upper display; setting temperature display: 4-digit digital lower display
- Run function
- Fixed value operation, Timer operation, automatic stop
- Program Mode
- optional
- Additional features
- Deviation correction, menu button lock, power outage compensation, power outage memory, speed control fan
- Temperature transducer
- pt100
- Safety Devices
- Overrise alarm
- Packing size
- 620*585*800mm
- Gross Weight
- 43Kg
- Shelf (std.)
- 4pcs
- Shelf spacing
- 35mm
CBX45B
Disinfection box
Features
● Rapid, safe and reliable sterilization.
● Convenient operation, fixed value operation, timing operation, automatic stop.
● Special function keys for temperature setting.
● Auxiliary menu to realize overheating alarm, deviation correction and menu lock.
● Vertical double air duct air jacket, centrifugal forced air supply from turbine, more uniform temperature.
● Adjustable speed fan enables light, fine and powdery samples to be used.
● Forced fan heat dissipation and air intake structure, so that the working temperature of the fan is <50°C, and it can run for a long time.
safety
● Overheating alarm, menu lock, overheating prevention
Parameter comparison
| model | rated power | Internal volume | Partition layers |
| BX30B/BX30BE | 0.8kw | 30L | Level 6 |
| BX45B/BX45BE | 1.2kw | 45L | 7 floors |
| BX65B/BX65BE | 1.6kw | 65L | 9 floors |
| BX125B/BX125BE | 2.3kw | 125L | 13 floors |
| BX230B/BX230BE | 3.0kw | 230L | 17 floors |
| Other parameters | |||
| Way | Dual duct forced convection | ||
| Operating temperature range | RT+10～300℃ | ||
| temperature resolution | 0.1°C | ||
| temperature fluctuation | ±1℃ | ||
| Temperature distribution accuracy | ±2.5% | ||
| Interior | stainless steel plate | ||
| Exterior | Cold-rolled steel sheet with chemical-resistant coating on the surface | ||
| Insulation material | Aluminum silicate fiber | ||
| temperature control method | B type: digital tube double row PID; BE type: liquid crystal double row PID | ||
| temperature setting method | Touch four buttons to set | ||
| Temperature representation | Type B: measured temperature display: 4-digit upper display; set temperature display: 4-digit lower display | ||
| BE type: Measured temperature display: LCD upper display; Set temperature display: LCD lower display | |||
| timer | 0～9999 minutes (with timing waiting function) | ||
| running function | Fixed value operation, timing operation, automatic stop | ||
| program mode | Optional | ||
| Additional features | Deviation correction, menu key lock, power failure compensation, power failure memory, speed regulating fan (BE type: overheating preventer) | ||
| sensor | Pt100 | ||
| safety devices | Overheating alarm (BE type: overheating preventer) | ||
| Partition | 2 pieces | ||
| shelf | 4 pieces | ||
| Remark | GX230B/BE non-adjustable speed fan | ||
FAQ
QSample types suitable for hot air sterilizer?
A
The CBX45B hot air sterilizer is equipped with a speed regulating fan, which is suitable for the sterilization of light, fine and powdery samples to ensure uniform temperature and effective sterilizing effect.
QWhat should I pay attention to when operating the CBX45B hot air disinfection box?
A
Before use, touch the four buttons to set the temperature, and ensure that the electrical performance of the box is checked before power on to avoid circuit failure or leakage. When running for a long time, it is recommended to set the timer within an appropriate range to prevent timeout operation.
QWhat are the safety functions of the hot air sterilizer?
A
In addition to the basic over-rise alarm, it also has a menu lock function and an over-rise preventer, which can prevent accidental operation and temperature exceeding the set value, ensuring operation safety and data accuracy.
QFind an oven with temperature control at 215 ° C and a size of about 40L
A
Temperature range 10~ 300 ℃, volume 45L, suitable for your requirements.
Standard
- 1GB/T 3830-2024《Calendered film and sheet from flexible polyvinyl chloride》
- 2JB/T 20033-2011《Hot air circulating oven》
- 3GB/T 32710.10-2016《Safety requirements for environmental testing and conditioning equipment—Part 10: Electric gravity convection ovens and forced ventilation ovens》
- 4GB/T 11026.5-2010《Electrical insulating materials - Thermal endurance properties - Part 5: Ageing ovens - Precision ovens for use up to 300℃》
