BENTING C202-0AB electric thermostatic Drying Oven 250 ℃/42L

SE
BENTING C202-0AB electric thermostatic Drying Oven is a volume of 42L, Interior size 350 × 350 × 350mm electric thermostatic Drying Oven, stainless steel material inner chamber, C202-0AB heating power is 1.2kw, used for drying, baking, melting wax, sterilizing, curing use.
Model：
Certificate
Contact
Details SPEC Con CAT

BenTing C202-0AB Thermostatic Drying OvenSPEC

BenTing C202-0AB Thermostatic Drying OvenDetails

BenTing C202-0AB Thermostatic Drying OvenPacking list

SKU
NB028585
Temperature range
RT+10~250°C
Temperature fluctuation
±1.0℃
Volume
42L
Interior size
350*350*350mm
Inner chamber material
stainless steel
Shelf (std.)
2pcs
Load per shelf
15kg
Power
220V/50HZ
Input power
1.2Kw
Environment temperature
20℃
Environment humidity
50%Rh
Dimensions
600*510*570mm
Net Weight
45kg
Enclosure Material
Cold rolled steel plate
Packing size
760*640*720mm
Gross Weight
57Kg
C202-0AB
Thermostatic Drying Oven

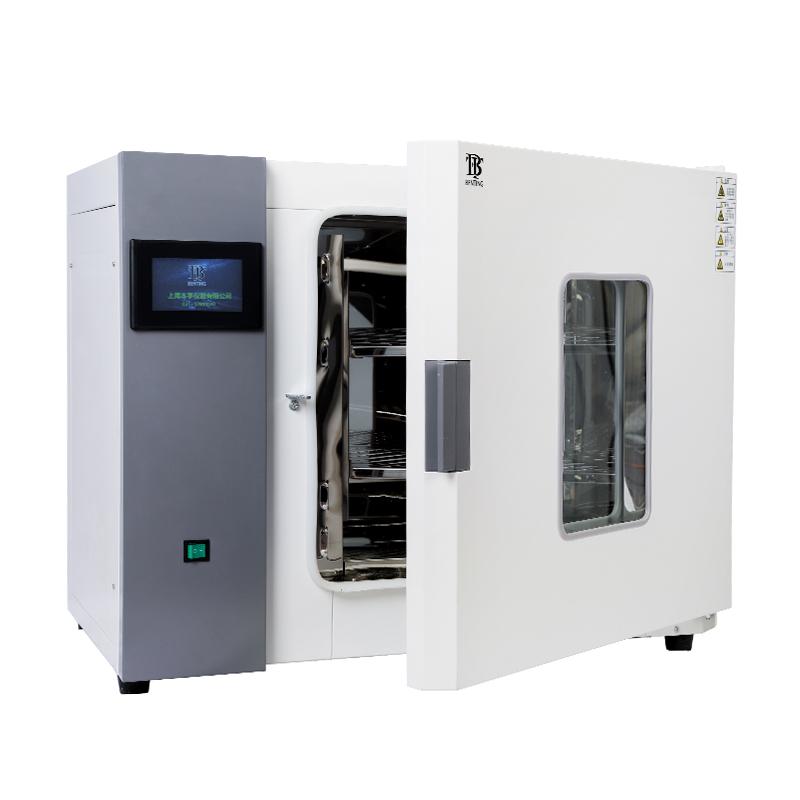

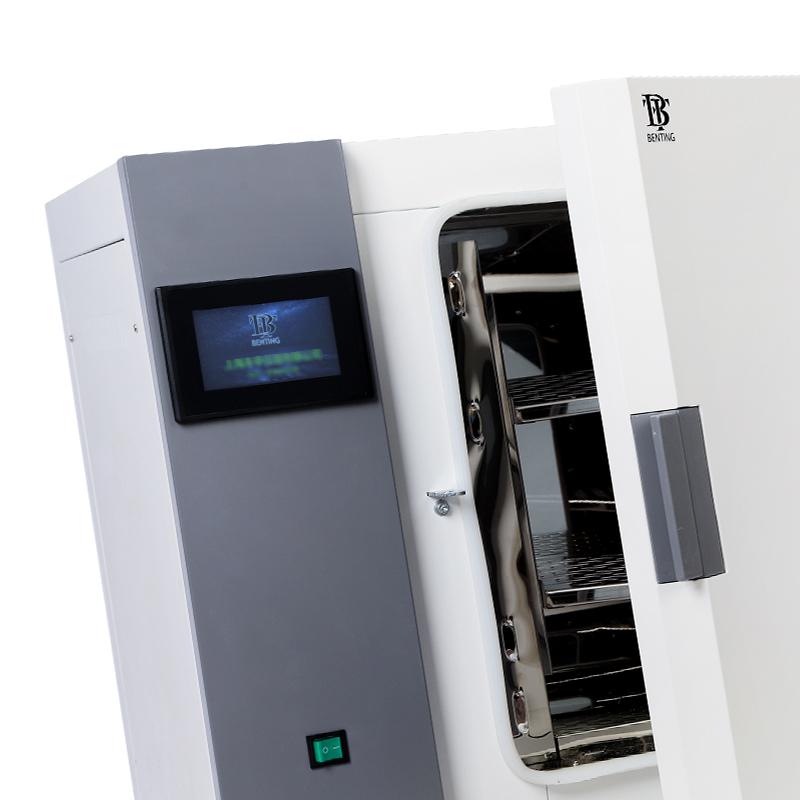

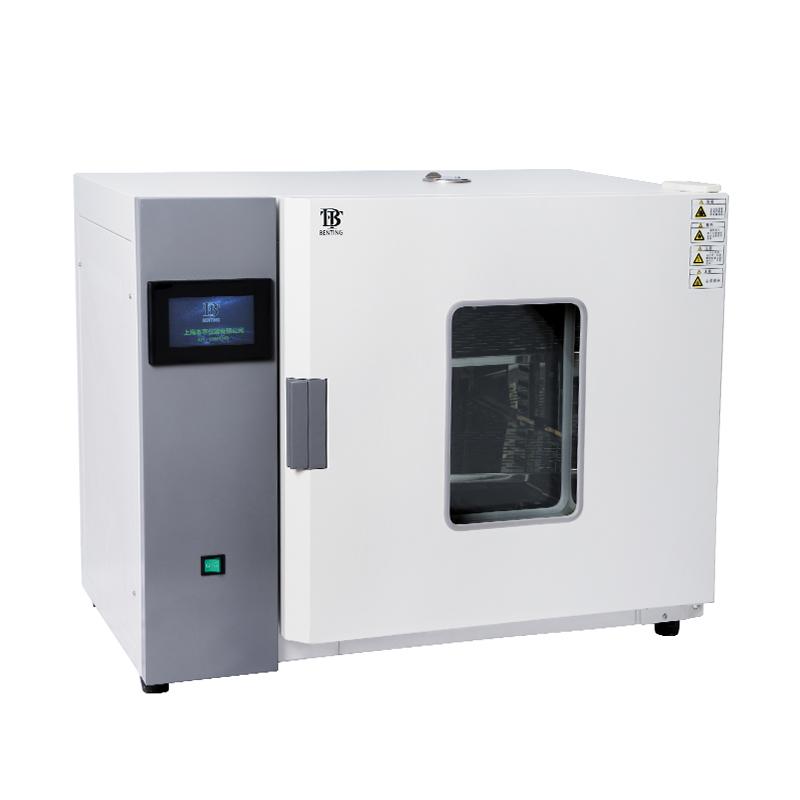

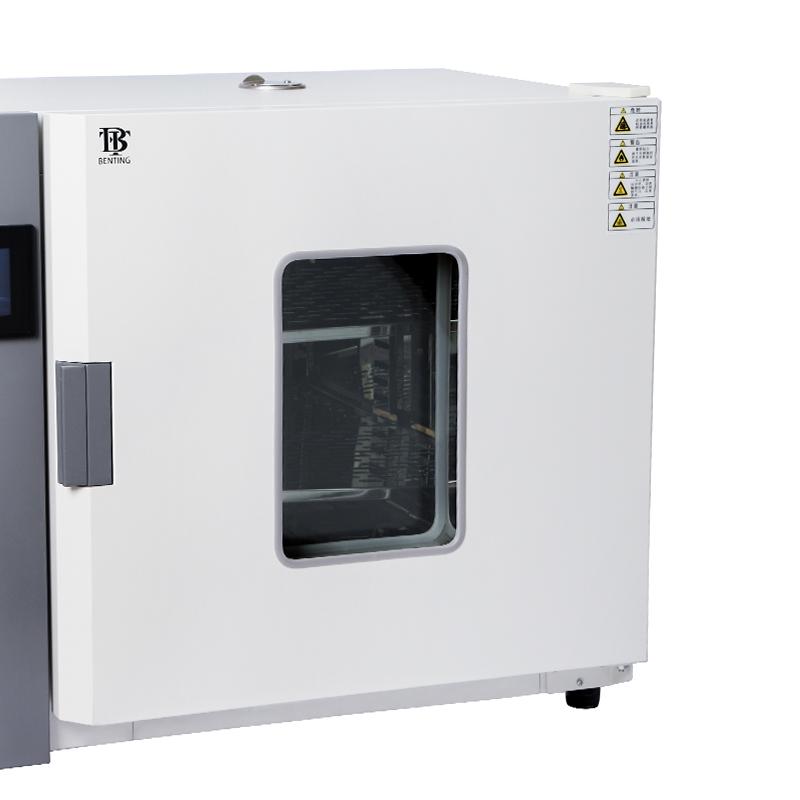

BENTING C202-0AB electric thermostatic Drying Oven 250 ℃/42L Picture

Overview

This product is suitable for drying, baking, wax melting, sterilization and curing in industrial and mining enterprise laboratories, medical and health and scientific research units.

Features

1. The shell is made of high-quality cold-rolled steel plate, and the surface is treated by spraying process. The studio is made of stainless steel or cold-rolled steel plate, and is treated with anti-corrosion process.

2. Intelligent temperature controller, intelligent temperature controller adopts PID control program, digital display, with timing function.

3. There is a double-layer toughened glass observation window in the middle of the box door, which can observe the situation of the heated items in the working room at any time.

4. The door of the box is sealed with a silicone rubber strip, and the sealing effect is good.

5. The blower type is equipped with a low-noise fan and a single air duct design to ensure good temperature uniformity in the working room.

Parameter comparison

modelheating powerstudio size
202-0AB1.2350×350×350
101-0AB1.2350×350×350
202-1AB1.6450×350×450
101-1AB1.6450×350×450
202-2AB2550×450×550
101-2AB2550×450×550
202-3AB4600×500×750
101-3AB4600×500×750
Unit: Kw, mm
Other parameters
Voltage220V/50HZ
Temperature control rangeRT+10-250℃
Constant temperature fluctuation±1.0℃
shelf load15kg
Standard shelf2 blocks
Note:

A means intelligent temperature controller (without A, it is a pointer temperature controller)

B means stainless steel working room (without B, it is a good cold-rolled steel plate) 202 means constant temperature Drying Oven 101 means Forced Air Drying Oven

Performance parameter test under no-load conditions: ambient temperature 20°C, ambient humidity 50% RH


FAQ
QThis box can control the temperature of 180 ° C and the sample capacity is about 40L?
A Can meet, C202-0AB thermostatic drying oven Temperature range 10-250 ℃, volume 42L.
QCan this thermostatic drying oven be applied to GB/T5211.3?
A OK
