BENTING C101-3A desktop Forced Air Drying Oven 250 ℃/225L oven

BENTING C101-3A desktop Forced Air Drying Oven is a 101 series laboratory Forced Air Drying Oven, using intelligent temperature control instrument, fluctuation is +/- 1.0 ℃, C101-3A desktop Forced Air Drying Oven Interior size 600 × 500 × 750mm, material is Cold rolled steel plate.
Model:
Certificate

BenTing C101-3A Forced Air Drying OvenSPEC

BenTing C101-3A Forced Air Drying OvenDetails

BenTing C101-3A Forced Air Drying OvenPacking list

SKU
NB028589
Temperature range
RT+10~250℃
Temperature Fluctuation
±1.0℃
Volume
225L
Interior size
600*500*750mm
Chamber material
Cold rolled steel plate
Shelf (std.)
2pcs
Load per shelf
15kg
Power supply Voltage
220V/50HZ
Input Power
4Kw
Environmental temperature
20℃
Environmental humidity
50%RH
Dimensions
965*706*1065mm
Net Weight
110kg
Enclosure Material
Cold rolled steel plate
Packing size
1160*840*1190mm
Gross Weight
140Kg
C101-3A
Forced Air Drying Oven

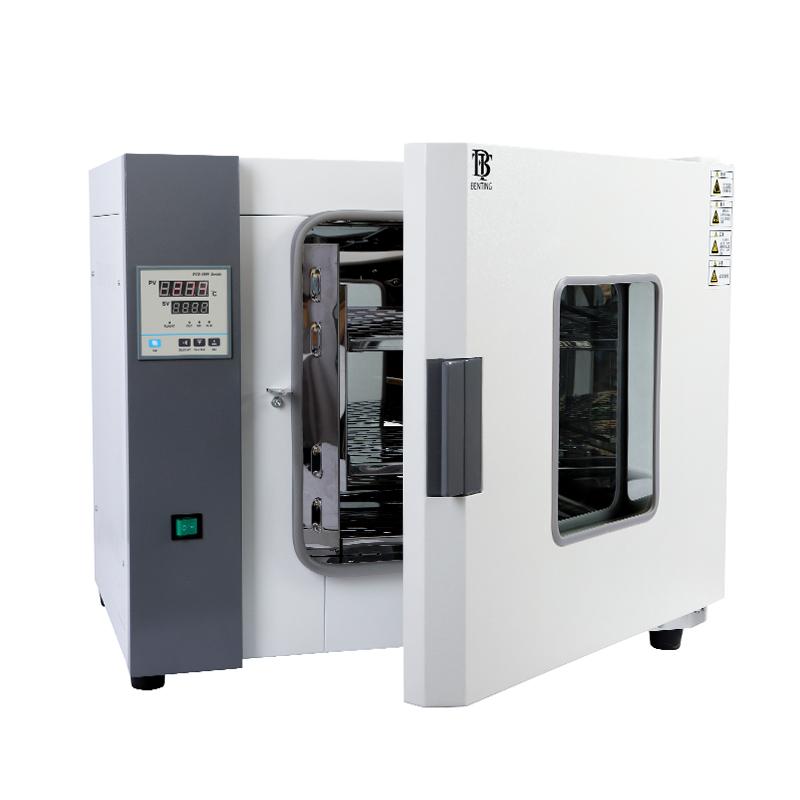

BENTING C101-3A desktop Forced Air Drying Oven 250 ℃/225L oven Picture

Overview

This product is suitable for drying, baking, wax melting, sterilization and curing in laboratories and scientific research units of industrial and mining enterprises.

Features

1. The shell is processed and formed by good cold-rolled steel plate, the surface is treated by spraying process, and the studio is processed and formed by stainless steel or cold-rolled steel plate, and treated by anti-corrosion process.

2. Intelligent thermostat, intelligent thermostat adopts PID control program, digital display, and timing function.

3. There is a double-layer tempered glass observation window in the middle of the door, which can observe the heated items in the studio at any time.

4. The door is sealed with silicone rubber strips, and the sealing effect is good.

5. The blower type is equipped with a low-noise fan and a single air duct design to ensure good temperature uniformity in the studio.

Series selection

nameHorizontal Drying Oven series
Model202-0A101-0A202-1A101-1A202-2A101-2A202-3A101-3A
Inner chamber materialGood cold-rolled steel plate
Supply Voltage220V/50HZ
Temperature control rangeRT+10-250℃
Constant temperature fluctuation±1.0℃
Heating power(kw)1.21.21.61.62244
Studio size350×350×350350×350×350450×350×450450×350×450550×450×550550×450×550600×500×750600×500×750
Dimensions600×510×570650×510×525700×510×670750×510×625800×600×770850×600×725965×706×1065965×706×1065
Packing size mm760×640×720800×640×670880×640×810910×640×760970×750×9201010×740×8701160×840×11901160×840×1190
Shelf loadThe standard number is 2 pieces
Net/gross weight45/57kg44/56kg55/67kg54/66kg60/78kg58/79kg110/140kg110/140kg

Note: A represents an intelligent thermostat (without A, it is an analog thermometer)

       B indicates stainless steel workshop (without B, it is good cold-rolled steel plate) 202 indicates constant temperature Drying Oven 101 indicates Forced Air Drying Oven

         The performance parameters are tested under no-load conditions: ambient temperature 20°C, ambient humidity 50%RH
