BENTING C202-3A electric thermostatic Drying Oven 250 ℃/225L

BENTING C202-3A electric thermostatic Drying Oven is a volume of 225L, Interior size 600 × 500 × 750mm experimental thermostatic Drying Oven, Cold rolled steel plate material, C202-3A Heating power is 4kw, using intelligent temperature control instrument, thermostatic fluctuation +/- 1.0 ℃.
Model:
Certificate

BenTing C202-3A Thermostatic Drying OvenSPEC

BenTing C202-3A Thermostatic Drying OvenDetails

BenTing C202-3A Thermostatic Drying OvenPacking list

SKU
NB028590
Temperature range
RT+10~250℃
Temperature Fluctuation
±1.0℃
Volume
225L
Interior size
600*500*750mm
Chamber material
Cold rolled steel plate
Shelf (std.)
2pcs
Load per shelf
15kg
Power supply Voltage
220V/50HZ
Input Power
4Kw
Environmental temperature
20℃
Environmental humidity
50%RH
Dimensions
965*706*1065mm
Net Weight
110kg
Enclosure Material
Cold rolled steel plate
Packing size
1160*840*1190mm
Gross Weight
140Kg
C202-3A
Thermostatic Drying Oven

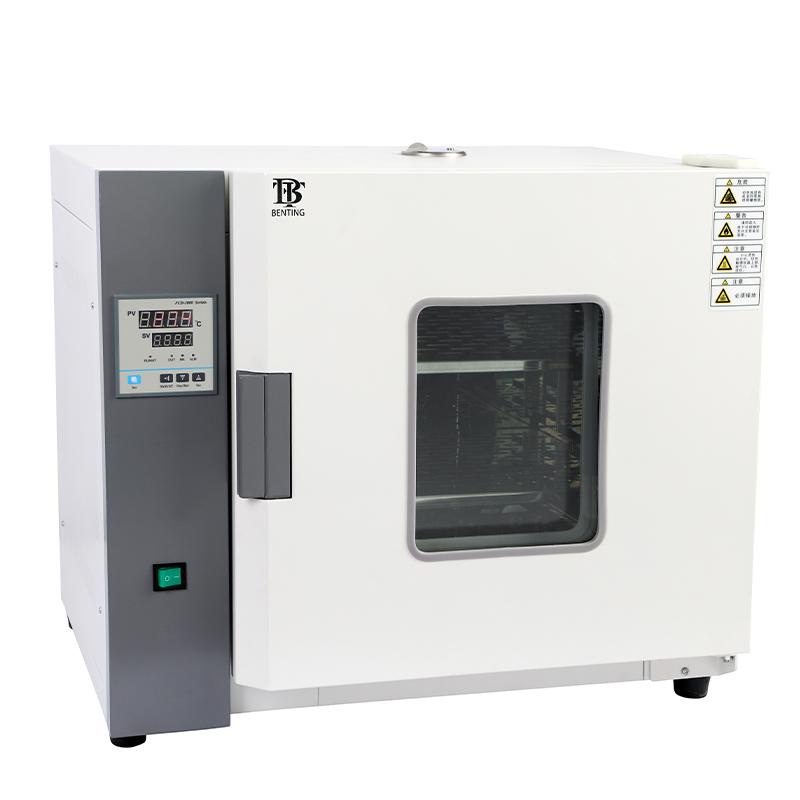

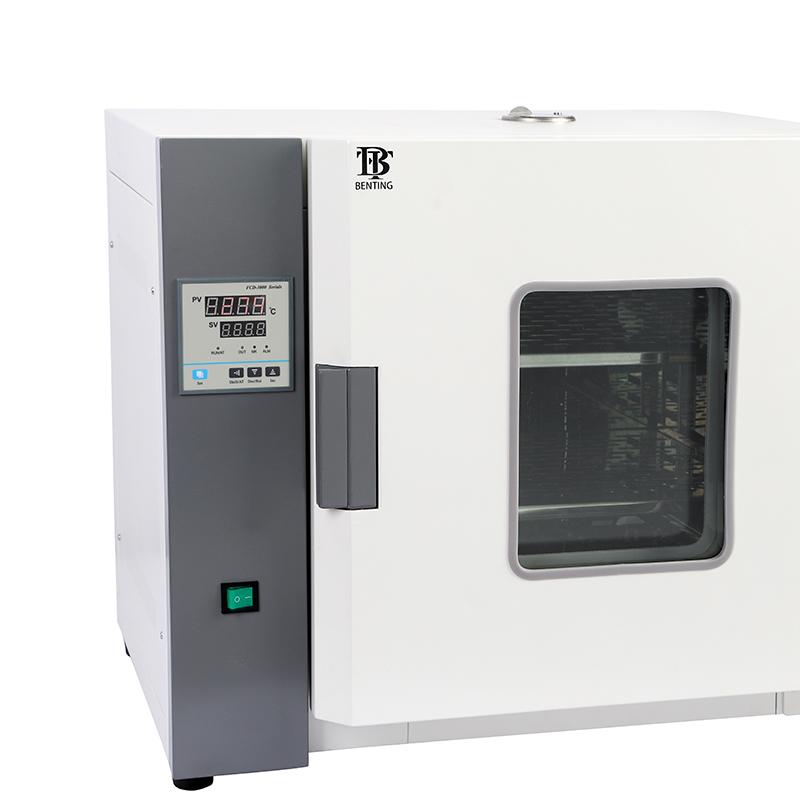

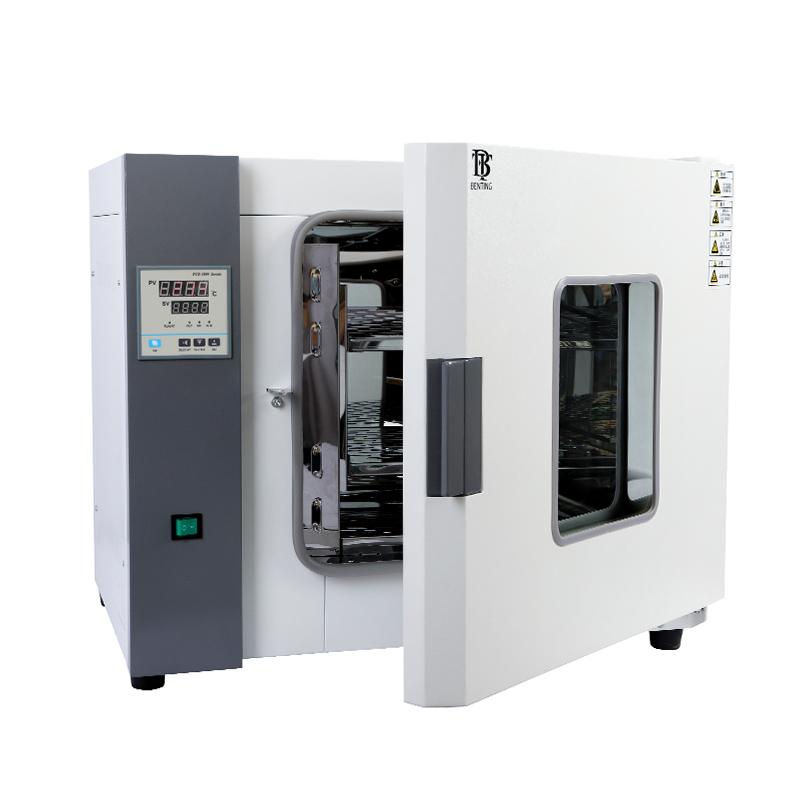

BENTING C202-3A electric thermostatic Drying Oven 250 ℃/225L Picture

Overview

This product is suitable for drying, baking, wax melting, sterilization and curing in laboratories and scientific research units of industrial and mining enterprises.

Features

1. The shell is processed and formed by good cold-rolled steel plate, the surface is treated by spraying process, and the studio is processed and formed by stainless steel or cold-rolled steel plate, and treated by anti-corrosion process.

2. Intelligent thermostat, intelligent thermostat adopts PID control program, digital display, and timing function.

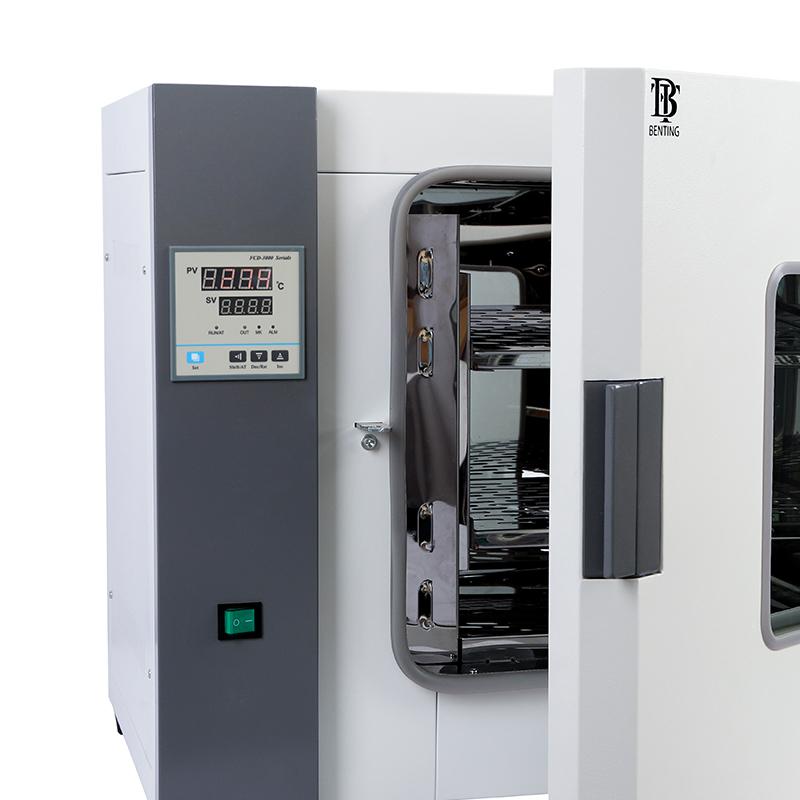

3. There is a double-layer tempered glass observation window in the middle of the door, which can observe the heated items in the studio at any time.

4. The door is sealed with silicone rubber strips, and the sealing effect is good.

Comparison of parameters of 101/202 series Forced Air Drying Ovens

nameHorizontal Drying Oven series
Model202-0A101-0A202-1A101-1A202-2A101-2A202-3A101-3A
Inner chamber materialGood cold-rolled steel plate
Power supply Voltage (V)220V/50HZ
Temperature Control Range (°C)RT+10-250℃
Constant temperature fluctuation (°C)±1.0℃
Heating power(kw)1.21.21.61.62244
Studio Dimensions W×D×H(mm)350×350×350350×350×350450×350×450450×350×450550×450×550550×450×550600×500×750600×500×750
Product dimensions: W×D×H(mm)600×510×570650×510×525700×510×670750×510×625800×600×770850×600×725965×706×1065965×706×1065
Package dimensions: W×D×H(mm)760×640×720800×640×670880×640×810910×640×760970×750×9201010×740×8701160×840×11901160×840×1190
Shelf load15 Standard number of 2 pieces
Net Weight/Gross Weight (kg)45/5744/5655/6754/6660/7858/79110/140110/140

Note: A represents an intelligent thermostat (without A, it is an analog thermometer)

B indicates stainless steel workshop (without B, it is good cold-rolled steel plate) 202 indicates constant temperature Drying Oven 101 indicates Forced Air Drying Oven

The performance parameters are tested under no-load conditions: ambient temperature 20°C, ambient humidity 50%RH

FAQ
QCan BENTING C202-3A thermostatic drying oven meet the QB/T1552 standard?
A Applicable, you can consult the customer service of the mall for details about the QB/T1552 standard.
QFind an oven with temperature control at 85 ° C and a size of about 200L
A This C202-3A thermostatic drying oven Temperature range 10-250 ℃, volume 225L, suitable for your requirements.
