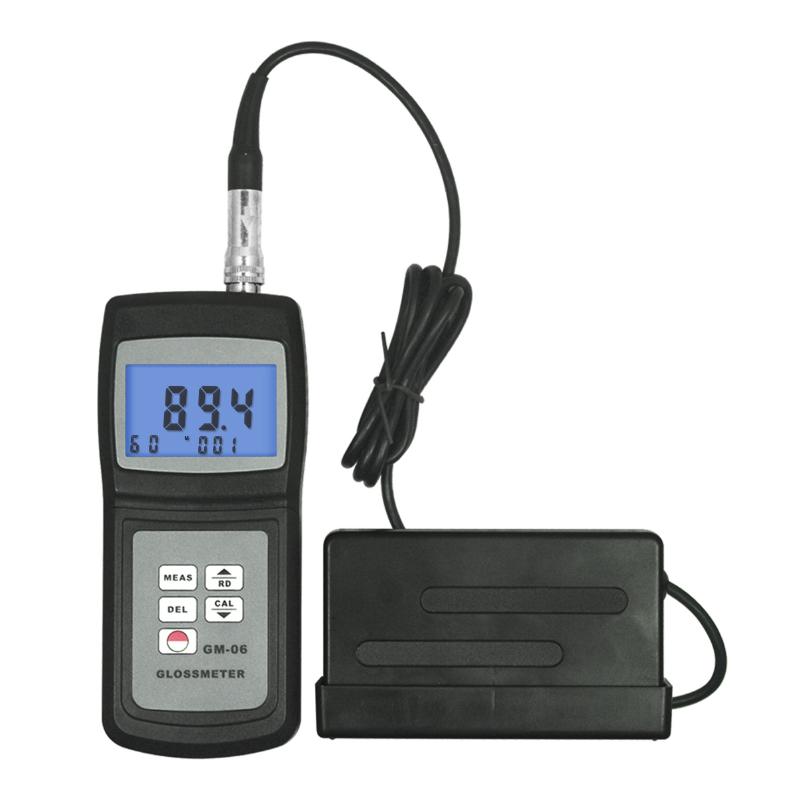

LANDTEK GM-06 Gloss Meter 60 ° for floors, tiles, paints, inks, automobiles, etc

SE
Gloss range 200GU, 60 ° angle; Oval diameter 7x14mm; Automatic calibration, Storage capacity 254 groups; RS-232 interface.
$184.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

LANDTEK GM-06 GlossmeterSPEC

LANDTEK GM-06 GlossmeterDetails

LANDTEK GM-06 GlossmeterPacking list

SKU
NB000286
Geometry
60°
Measurement range
0~200GU
Repeatability
±0.5GU
Measuring Areas
7*14mm
Error of indication
±1.2GU
Division Value
0.1GU
Standards
ASTM D523、ASTM D1455、ASTM C346 、ASTM C584、 ASTM D2457、DIN67530、ENISO7668、JISZ8741、MFT30064、TAPPIT480、 Gb9754、 GB/T13891、GB7706、GB 8807
Data Interface
USB interface, RS-232, Bluetooth
data storage
254 groups
Display
Blue backlight, 4-digit display, 10 mm LCD
Operating language
Chinese
Dimensions
156*67*28mm
Weight
190G (without battery)
Power
4 AA batteries
software
RS232 software
Stability
±0.4GU
Operating Temperature
0~40℃
Relative Humidity
< 85% RH
Measurement port shape
ellipse
GM-06
Glossmeter
Gloss range 200GU, 60 ° angle; Oval diameter 7x14mm; Automatic calibration, Storage capacity 254 groups; RS-232 interface.
LANDTEK GM-06 Gloss Meter 60 ° for floors, tiles, paints, inks, automobiles, etc Picture

Applications

Gloss meter GM-06 is widely used in floor maintenance, quality control of surface cleaning, gloss measurement of stones and ceramic tiles, detection of spray paint, quality control of paint, ink and polished metal surfaces, paint protection layer, wax film , Automotive body paint, testing of plastic moldings, evaluation of detergents, scrubbers, masonry industry, building exteriors.

Pictures

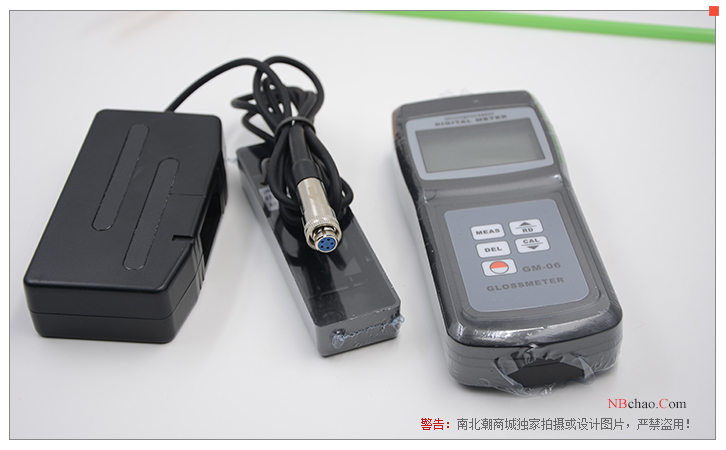

LANDTEK GM-06 Gloss Meter 60° Host Diagram

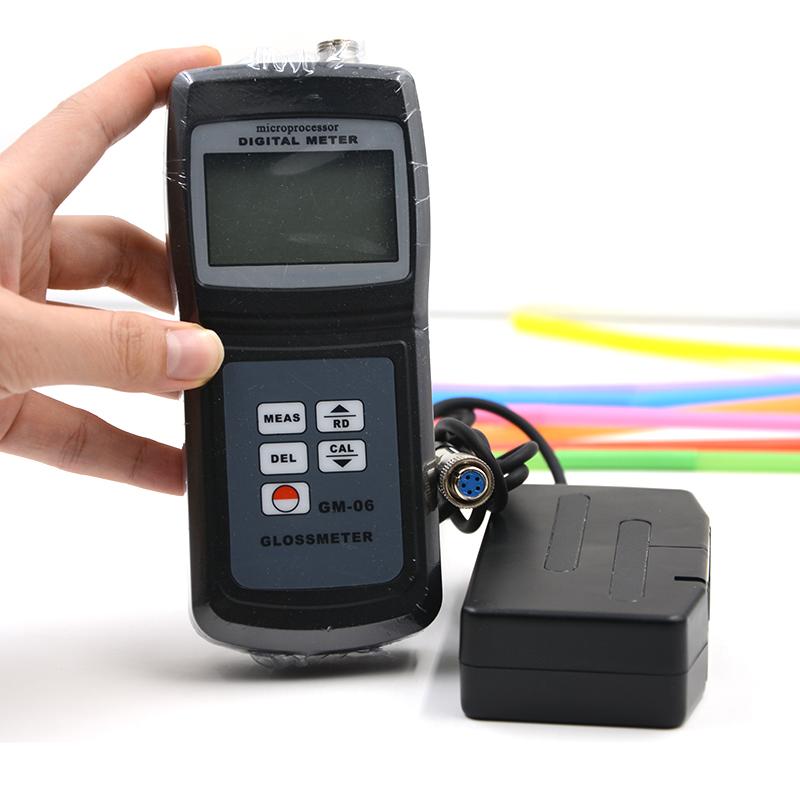

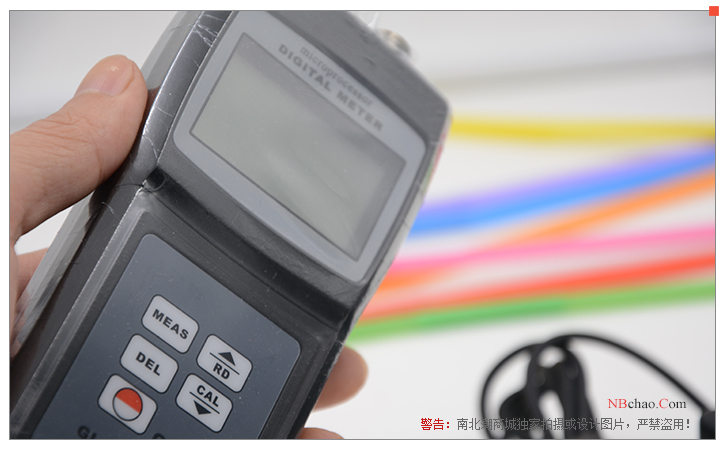

LANDTEK GM-06 Gloss Meter 60° Display Picture

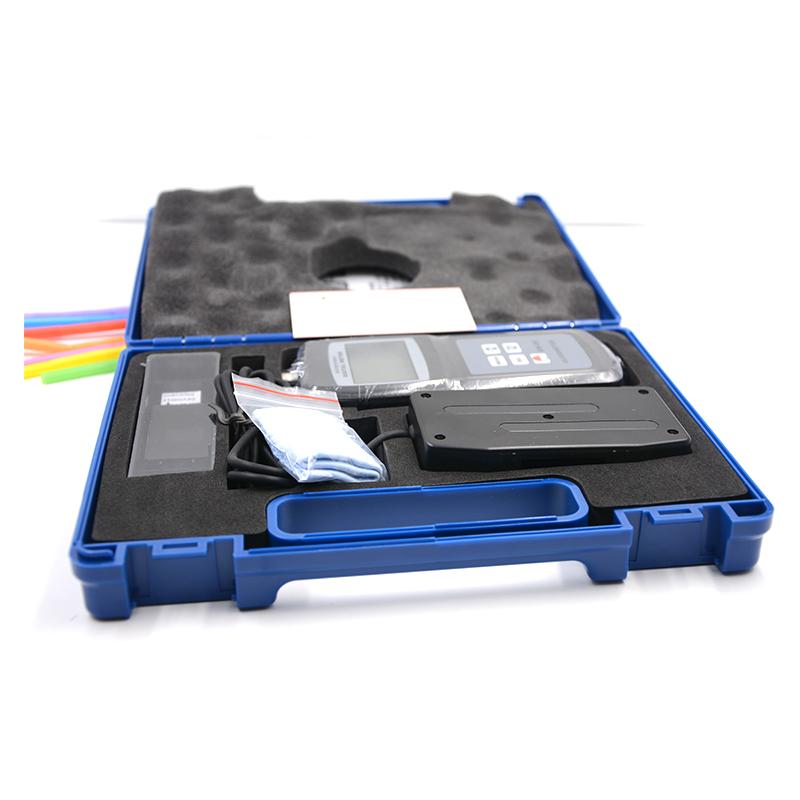

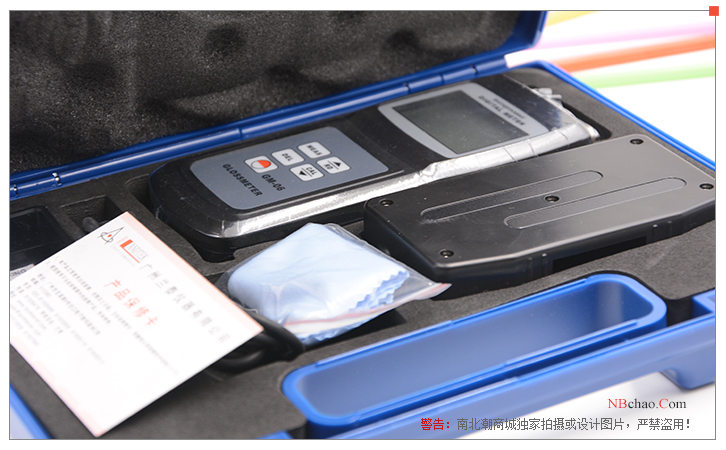

LANDTEK GM-06 Gloss Meter 60° Packing List

Features

* Precise, lightweight shape, easy to carry.

* Automatic calibration, no manual adjustment required.

* Fully intelligent design, fast measurement.

* Measurement is accurate and repeatable.

* Can store 254 sets of data.

* With backlight display, it is convenient to use in a dark environment.

* Gloss meter GM-06 uses "USB data line output" and "RS-232 data line output" to communicate with PC.

* Gloss meter GM-06 provides Bluetooth data output option

FAQ
QDo you have the glossmeter required in the ASTMD3794 standard?
A This GM-06 glossmeter will do.
QWhat is the test angle of the Lantai GM-06 model Gloss meter? What is the range?
A Hello, GM-06 is a 60 ° projection angle, and the measurement range is 0.1~ 200GU.
QThe working environment ray of light is not very sufficient, this GM-06 has that kind of screen backlight?
A Hello, yes, the Gloss meter has a backlight display function, which can be used normally in a dark environment.
QCan GM-06 Gloss meter test metal surface gloss?
A Hello, this Lantai GM-06 Gloss meter can test the gloss of polished metal surface.
