SUNDOO LX-A Shore Durometer Hardness Instrument for Vulcanized Rubber and Plastic Products

LX-A

Shore Shore Durometer

Measurement range 0~2.5mm, Measurement range 0~100HA, Measurement range 20~90HA, measurement error +/- 1HA, pressure F = 550 + 75HA (mN); HA is a type A Shore Durometer reading.

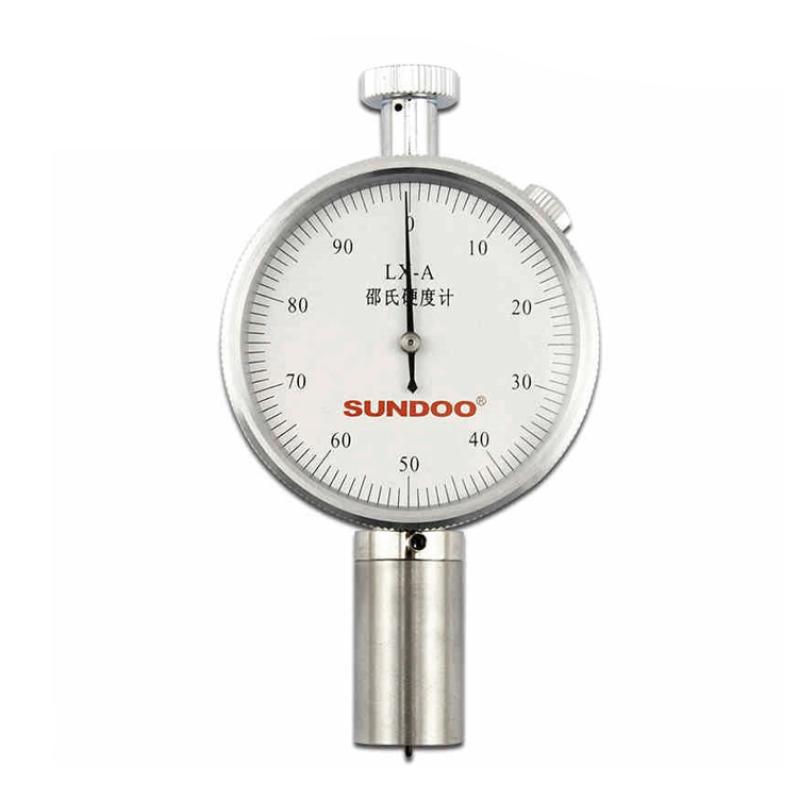

Introduction of LX-A Shore Hardness Tester

SUNDOO Instruments LX-A Shore Hardness Tester is a type A Shore Hardness Tester specially used for testing the hardness of vulcanized rubber and plastic products . The first part of the thermoplastic rubber indentation hardness test method: Shore durometer method (Shore hardness), and also refer to the relevant regulations  .

The LX-A Shore Hardness Tester is installed on the matching test frame of the same model, which can measure the standard hardness of rubber and plastic standard test pieces in the laboratory. You can also hold the head of the Hardness Tester to measure the surface hardness of the rubber (plastic) objects installed on the equipment.

Testing requirements

LX-A Shore Hardness Tester is used to measure the hardness of plastic test pieces and plastic products. Plastic samples and their adjustments must be carried out in accordance with the relevant provisions of GB/T2918-1998 "Standard Environment for Conditioning and Testing of Plastic Samples".

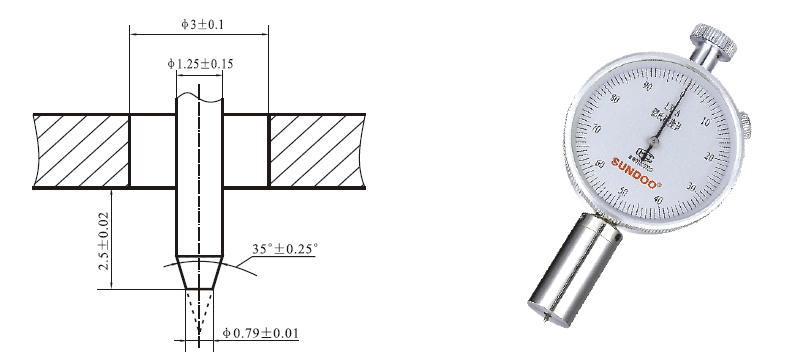

LX-A Shore Hardness Tester Size Chart

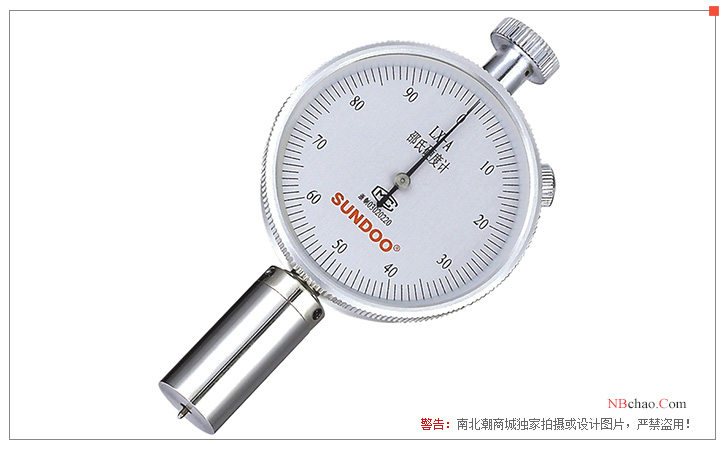

LX-A Shore Hardness Tester display

Packing list：Hardness gauge x1, standard block x1, manual x1, warranty card x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
