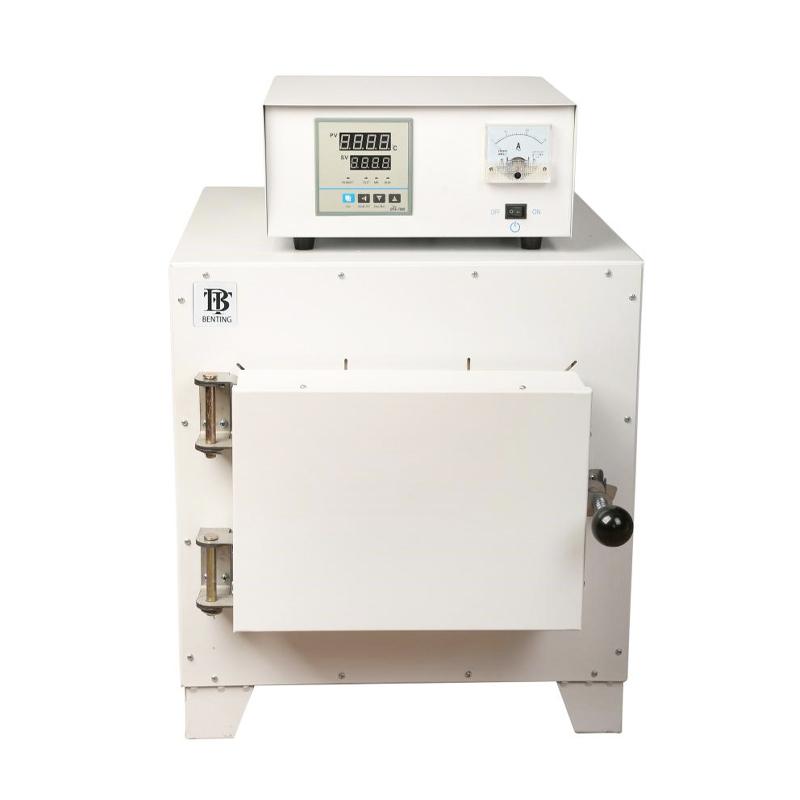

BENTING CSX-2.5-10 Box-Type Resistance Furnace 1000 ℃/2L
SEBENTING CSX-2.5-10 Box-Type Resistance Furnace is temperature control up to 1000 ℃, using staged heating method, power is 2.5kw, CSX-2.5-10 Box-Type Resistance Furnace Interior size is 120 * 200 * 80mm, volume is 2L, furnace material is aluminum silicate.
Price: Please contact customer service
Model：
CSX-2.5-10
Similar products
-
RONGHUA TC-2.5-10 Effective energy saving Pottery and porcelain fiber Resistance Furnace 1000 ℃/2L$ 565.00 -
BENTING CSX2-2.5-10T laboratory muffle furnace 1000 ℃/2L -
BENTING CSX2-2.5-10 laboratory Resistance Furnace 1000 ℃/2L -
BOZHEN BZ- 2.5-10 muffle furnace Box-Type Resistance Furnace 1000 ℃$ 350.00SE -
MODERNER MFL2 - 2.5-10 A muffle furnace 1.9L
BenTing CSX-2.5-10 Resistance furnaceSPEC
BenTing CSX-2.5-10 Resistance furnaceDetails
BenTing CSX-2.5-10 Resistance furnacePacking list
- SKU
- NB028618
- maximum temperature
- 1000℃
- Heating Elements
- Nickel chromium aluminum alloy wire
- Furnace material
- aluminum silicate
- Furnace Volume
- 2L
- Heating power
- 2.5KW
- Temperature control Accuracy
- ±5%℃
- Temperature control instrument
- Digital tube dual row PID
- Thermocouple
- Thermocouple K
- Furnace size
- 120*200*80mm
- Power
- AC220V/11A 50/60Hz
- Dimensions
- 410*595*467mm
- Product Weight
- 67kg
- Heating method
- Three-sided heating
- Temperature Resolution
- 1℃
- Room temperature to maximum temperature time
- 60
- Heating method
- staged warming
- vent
- Inner diameter 30mm * 1, rear (optional)
- Exterior material
- Cold rolled steel plate
- Program Mode
- optional
- Temperature setting
- Tap the four-button settings
- Temperature representation
- Measuring temperature display: 4-digit digital upper display; setting temperature display: 4-digit digital lower display
- Timer
- 0~9999min (with Timer waiting function)
- Run function
- Fixed value operation, Timer operation, automatic stop
- Additional features
- Deviation correction, menu button lock, power outage compensation, power outage memory
- Packing size
- 490*780*550mm
- Gross Weight
- 80kg
CSX-2.5-10
Resistance furnace
Features
●Integrated design, light and compact structure.
●Closed aluminum silicate furnace, lightweight insulation bricks, to ensure the full use of heat.
●Parallel side-opening furnace door keeps the hot end away from operation.
●The combination of PID microcomputer air instrument and precision sensor ensures accurate temperature.
●Special function keys for temperature setting.
●Auxiliary menu to realize overheating alarm, deviation correction and menu lock.
●Exhaust device is optional to facilitate ashing.
●Series 10 and 12: Nickel-chromium-aluminum alloy heating wire is enclosed and embedded in the aluminum silicate furnace to reduce the corrosion of the heating wire by volatile gas.
●13 series: silicon carbide rod heating, rapid heating, high thermal efficiency.
safety
● Overheating alarm, menu lock
SX series 1000 degrees Celsius Resistance Furnace parameter comparison
| model | SX-2.5-10 | SX-4-10 | SX-8-10 | SX-12-10 | |
| Way | heating on three sides | ||||
| performance | Operating temperature range | 1000℃ | |||
| temperature resolution | 1°C | ||||
| temperature fluctuation | ±5%℃ | ||||
| Normal temperature to maximum temperature time | 60 | 70 | 75 | ||
| heating method | Phased heating | ||||
| constitute | exhaust vent | Inner diameter 30mm*1, rear (optional) | |||
| Furnace body | Aluminum silicate | ||||
| heater | Nickel-chromium-aluminum alloy wire | ||||
| rated power | 2.5kw | 4kw | 8kw | 12kw | |
| Exterior | cold rolled steel plate | ||||
| controller | temperature control method | Digital tube double column PID | |||
| program mode | Optional | ||||
| temperature setting method | Touch four buttons to set | ||||
| Temperature representation | Measured temperature display: 4-digit upper display; set temperature display: 4-digit lower display | ||||
| timer | 0～9999 minutes (with timing and waiting function) | ||||
| running function | Fixed value operation, timing operation, automatic stop | ||||
| Additional features | Deviation correction, menu key lock, power failure compensation, power failure memory | ||||
| sensor | K type | ||||
| safety devices | Overheating alarm | ||||
| Specification | Inner size (width * depth * height mm) | 120*200*80 | 200*300*120 | 250*400*160 | 300*500*200 |
| Dimensions (width * depth * height mm) | 410*595*467 | 500*790*527 | 600*910*635 | 720*1100*675 | |
| Outer packing size (width*depth*height mm) | 490*780*550 | 600*900*640 | 630*930*650 | 770*1120*740 | |
| Internal volume | 2L | 7L | 16L | 30L | |
| Power supply (50/60Hz) rated current | AC220V/11A | AC220V/18A | AC380V/12A | AC380V/18A | |
| Net weight/gross weight kg | 67/80 | 134/150 | 203/230 | 271/305 | |
FAQ
QDoes this resistance furnace meet the GB/T2679.11 standard?
A
The resistance furnace is suitable for GB/T2679.11, please consult customer service for detailed application definition
Standard
- 1GB/T 23850-2024《Sodium perchlorate for industrial use》
- 2JJF 1184-2007《Testing Specification of Temperature Uniformity in Thermocouple Calibration Furnaces》
- 3JB/T 11583-2013《High temperature furnace used for testing machines.Technical specification》
- 4MT/T 620-2008《Technique specifications of muffle furnace temperature controller for coal analysis》
- 5GB/T 8077-2023《Methods for testing uniformity of concrete admixtures》
- 6GB/T 7744-2023《Hydrofluoric acid for industrial use》
- 7GB/T 13021-2023《Polyolefin pipes and fittings—Determination of carbon black content—Test method of alcination and pyrolysis》
- 8GB/T 28849-2012《SX series experimental box-shape resistance furnace》
- 9GB/T 10067.44-2014《Basic specifications for electroheat installations―Part 44: Box-type resistance furnaces》
- 10GB/T 31137-2014《Temperature controller for laboratory resistance furnaces》
