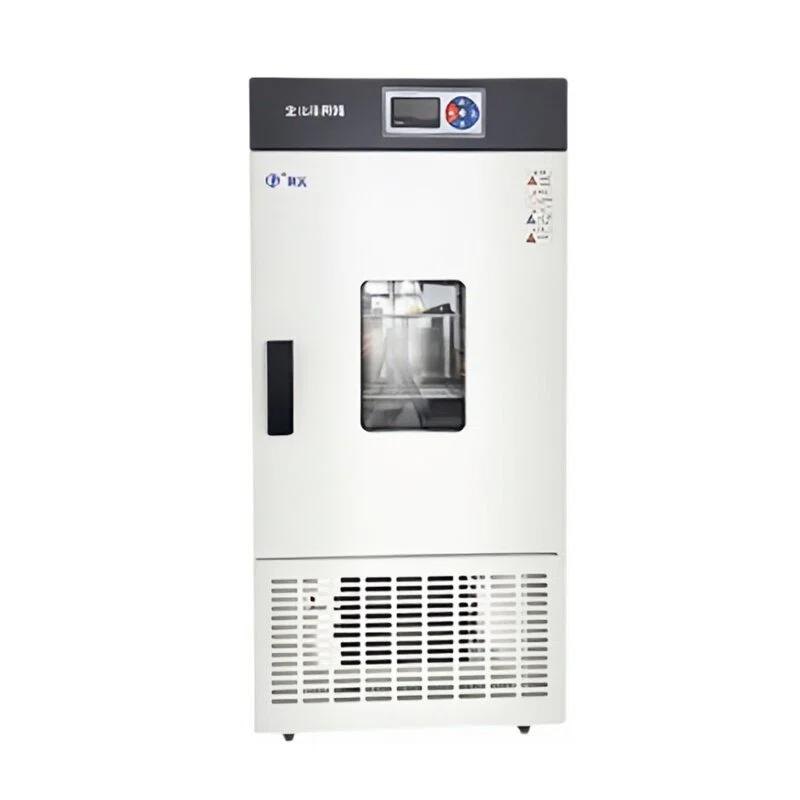

JINGQI LRH-200F biochemistry cultivating box volume 200L fluorine-free design PID temperature control
SE
LRH-200F
JingQi LRH-200F biochemistry cultivating boxSPEC
JingQi LRH-200F biochemistry cultivating boxDetails
JingQi LRH-200F biochemistry cultivating boxPacking list
- SKU
- NB028654
- Nominal volume
- 200(L)
- Temperature range
- 0~60℃
- Temperature Fluctuation
- High temperature +/- 0.5 ℃ Low temperature +/- 1.0 ℃
- Temperature uniformity
- +/- 1.5 ℃ (test point is 25 ℃)
- Temperature control instrument
- LCD screen, simultaneously display temperature, timing time, set temperature information, Measured value abnormal alarm information
- Timer Range
- 0~9999min
- Rated power
- 1000（W）
- power supply
- 220±10%V 50Hz
- Standard Shelf
- 3 pieces
- Liner size (width × depth × height cm)
- 45×45×100
- Dimensions (width × depth × height cm)
- 59×64×152
- Optional configuration can be added.
- Multi-stage programming control, Shelf, RS485 interface, printer, wireless SMS alarm, test hole
Application
This product is suitable for scientific research, colleges and production departments such as environmental protection, sanitation and epidemic prevention, drug inspection, agriculture and livestock, and aquatic products. It is a special constant temperature equipment for water body analysis and BOD determination, bacteria, mold, microorganism culture, preservation, plant cultivation and breeding test.
Structural features
The cabinet and working room are designed with a circular arc structure.
The studio is made of mirror stainless steel, and the shelf can be adjusted in height and assembled freely, which is convenient for cleaning in the studio.
The studio is equipped with power outlets and equipped with lighting.
A fan is installed in the working room to form forced convection.
The surface of the outer box is sprayed with plastic, the whole machine is beautiful and reasonable in shape, and it is easy to use and maintain.
The outer door adopts a magnetic door seal, which has good sealing performance and is easy to close. There is an observation window on the outer door.
Can directly observe the culture situation in the studio.
It has the function of automatic control of heating and cooling.
Temperature control adopts microcomputer intelligent control system,
LCD digital display meter, double LED digital display set temperature and measured temperature respectively, reliable temperature control accuracy.
Models
| model | Nominal volume | rated power |
| LRH-80F | 80L | 180W |
| LRH-150F | 150L | 250W |
| LRH-200F | 200L | 300W |
| LRH-250F | 250L | 350W |
| LRH-300F | 300L | 400W |
| LRH-400F | 400L | 550W |
| Other parameters | ||
| Temperature control range | 0~60℃ | |
| temperature fluctuation | High temperature ±0.5°C Low temperature ±1.0°C | |
| temperature uniformity | ±1.5°C (test point is 25°C) | |
| Timer Range | 0~9999min | |
| Refrigerant | R134a | |
| power supply | 220±10%V 50Hz | |
| operating hours | continuous | |
※The performance parameters are tested under no-load conditions, the ambient temperature is 20°C; the ambient humidity is 50%RH
Optional micro-printer or 485 interface for printing or connecting to a computer to realize remote control and alarm.
Optional programmable multi-segment liquid crystal temperature controller.
