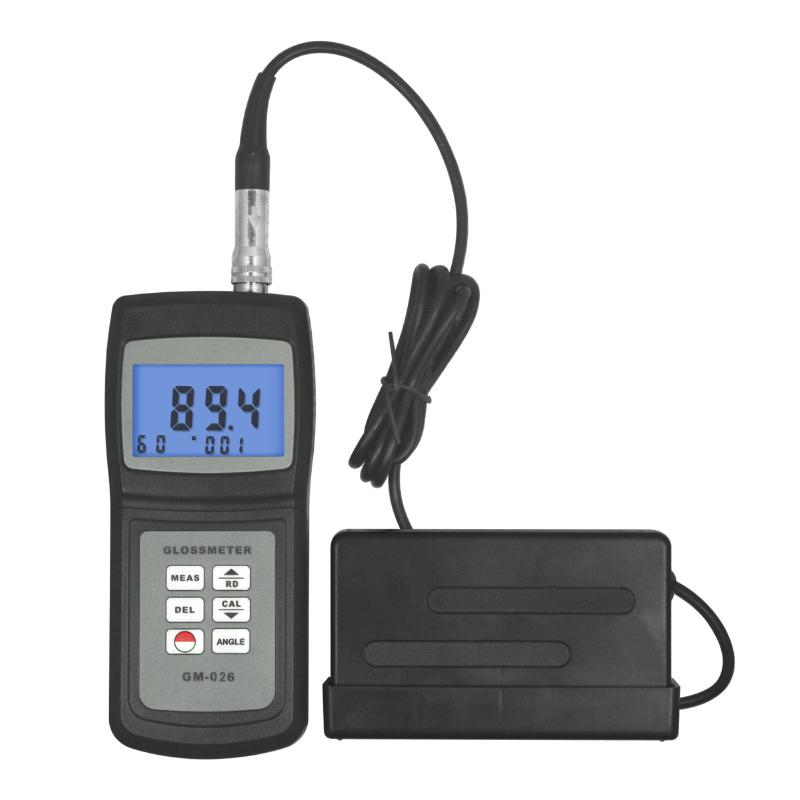

LANDTEK GM-026 Glossmeter 20 °/60 ° for floors, tiles, paints, inks, automobiles, etc

GM-026

Glossmeter

20 °/60 ° double angle, range 200GU, accuracy +/- 1.0; Oval diameter 7x14mm; Automatic calibration, Storage capacity 254 groups; RS-232 interface.

Product Description

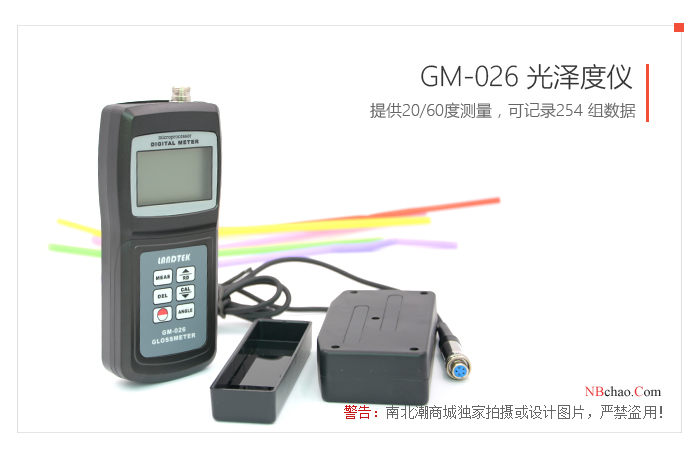

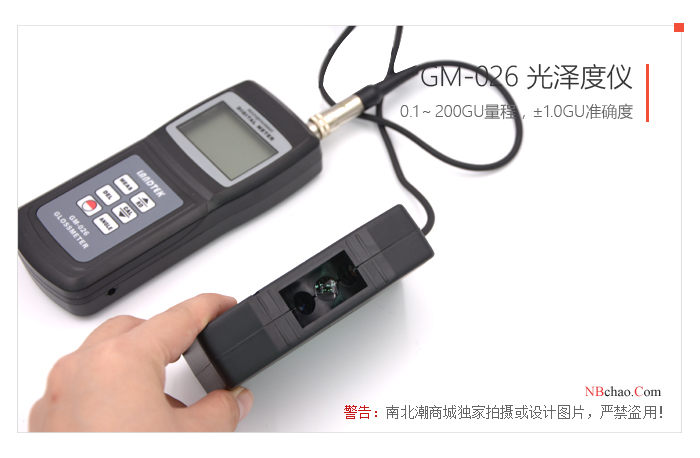

Gloss meter GM-026 provides 20/60 degree measurement, can record 254 sets of data, accurate measurement, good repeatability, measurement area 7x14mm (ellipse), range: 0.1 ~ 200 GU, suitable for testing product surface gloss.

Applications

GM-026 gloss meter is widely used in floor maintenance, quality control of surface cleaning, gloss measurement of stones and ceramic tiles, detection of spray paint, quality control of paint, ink and polished metal surfaces, paint protection layer, wax film, Testing of automotive body paint, plastic moldings, evaluation of detergents, scrubbers, masonry industry, building exteriors.

Features

Chinese luster GM-026 conforms to ASTMD-523, ASTMD1455 ASTM C346, ASTMC584, ASTM D2457, DIN67530, ENISO7668, Jisz8741, MFT30064, TAPPIT480, GB/T13891, GB770, GB770, GB7700 6 and GB 8807 standards. The Specifications conform to the standard of JJG 696-2002.

* Precise, lightweight shape, easy to carry.

* Automatic calibration, no manual adjustment required.

* Fully intelligent design, fast measurement.

* Measurement is accurate and repeatable.

* Chinese gloss meter GM-026 can store 254 sets of data.

* With backlight display, it is convenient to use in a dark environment.

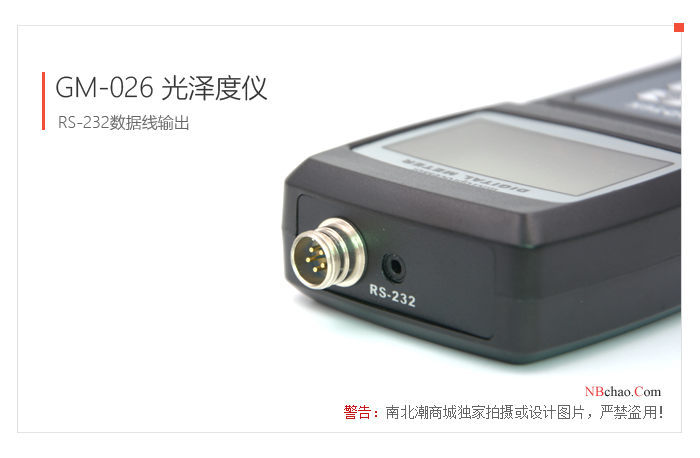

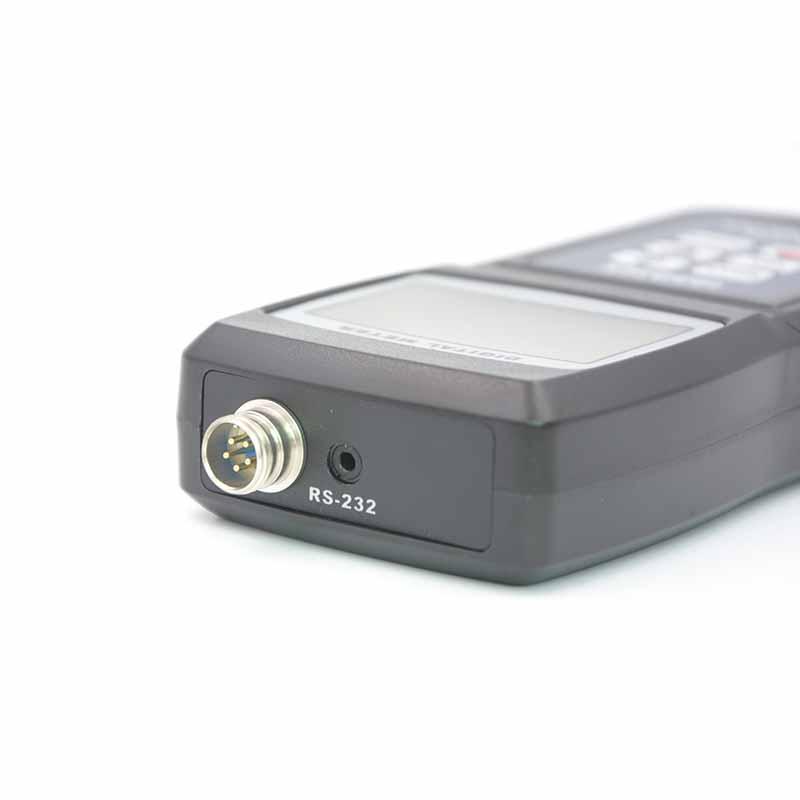

* Chinese gloss meter GM-026 uses "USB data line output" and "RS-232 data line output" to communicate with PC.

* Chinese gloss meter GM-026 provides Bluetooth data output option.

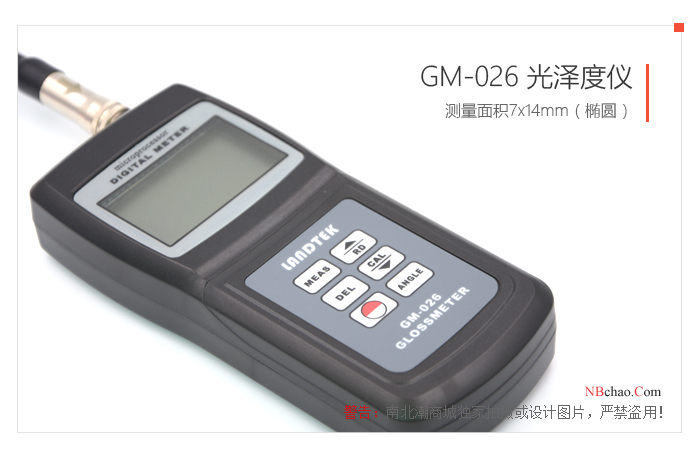

Pictures

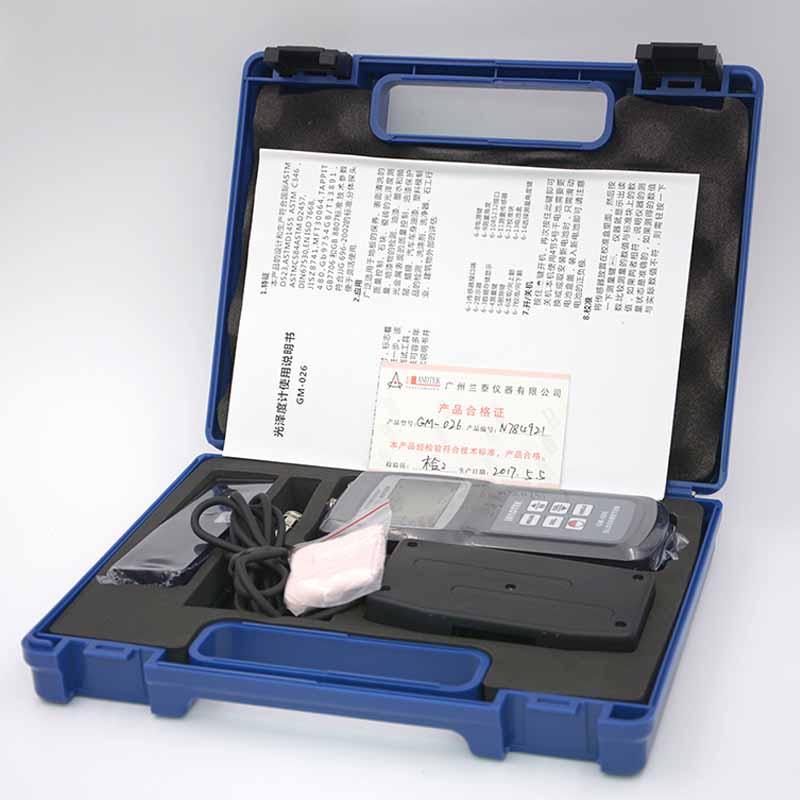

Packing list：Host x1, calibrated standard backing plate x1, external probe x1, Optical inspection cleaning cloth x1, portable case x1, instruction manual x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
