NIRUN NDJ-8S Digital Viscometer with No. 0 Rotor

NIRUN NDJ-8S digital Viscometer is standard with five rotors of No. 0 to No. 4. The Viscosity test range is 1 to 100,000 cp. It is an experimental digital display Viscometer. The NDJ-8S digital Viscometer has a timing measurement function and can display the continuous change of Viscosity value.
Certificate
Contact
Details SPEC
Similar products

NiRun NDJ-8S + No. 0 rotor Digital ViscometerSPEC

NiRun NDJ-8S + No. 0 rotor Digital ViscometerDetails

NiRun NDJ-8S + No. 0 rotor Digital ViscometerPacking list

SKU
NB028751
Display
Digital LCD liquid crystal with blue backlight
Measuring range
10~2000000mPa·s
Rotor Specifications
0#、1#、2#、3#、4#
Rotor speed
0.3/0.6/1.5/3/6/12/30/60rpm
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%
Power
AC100-240V，50Hz/60Hz，DC17V1.2A
Data Interface
RS232
Weight
7kg
Encasement material
Five-layer cardboard
Collection method
continuous acquisition
Capacity
300~400ml
Capacity
400Ml (self-prepared)
Lifting system
PE lifting system
Bearing system
ruby
Torque material
beryllium bronze
Control system
microcomputer
Encasement
aluminum alloy
NDJ-8S + No. 0 rotor
Digital Viscometer
NIRUN NDJ-8S Digital Viscometer with No. 0 Rotor Picture

Technical advantages

  1. Stepper motor direct drive, no gear, accurate speed

  2. LCD liquid crystal with blue backlight, displaying a large amount of information

  3. It can display the maximum viscosity value that the rotor can measure at the current speed.

  4. Measurement Timing Function

  5. Viscosity value shows continuous change

  6. There is an alarm sound prompt when the measurement range is exceeded

  7. Computer full range linear calibration

  8. AC power adapter 100V-240V, good anti-interference

Application

NDJ-8S digital viscometer is suitable for ink, glue, latex , solvent - based adhesive , polymer solution , petroleum , paint , solvent , cosmetic , milk product , medicine , fruit juice and so on.

Pictures

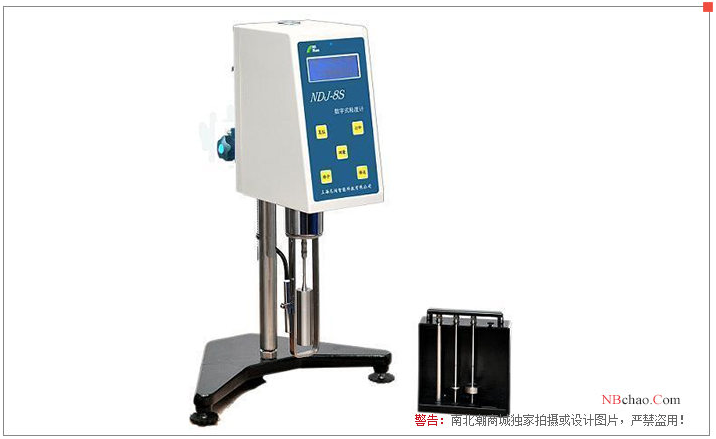

NIRUN NDJ-8S+No.0 rotor digital viscometer details Figure 1

Optional

Ultra Low Viscosity Adapter (Spindle 0)

micro printer

Special viscosity constant temperature Water Tank

RTD temperature probe

standard oil

remote control

Application

Inks, glues, latex, solvent-based adhesives, polymer solutions, petroleum, paint coatings, solvents, cosmetics, milk products, pharmaceuticals, fruit juices, and more.

FAQ
QDoes this change the rotor for viscosity, or does it switch by itself?
A The rotor is switched manually according to the viscosity range. However, the machine can automatically identify the rotor model after switching.
