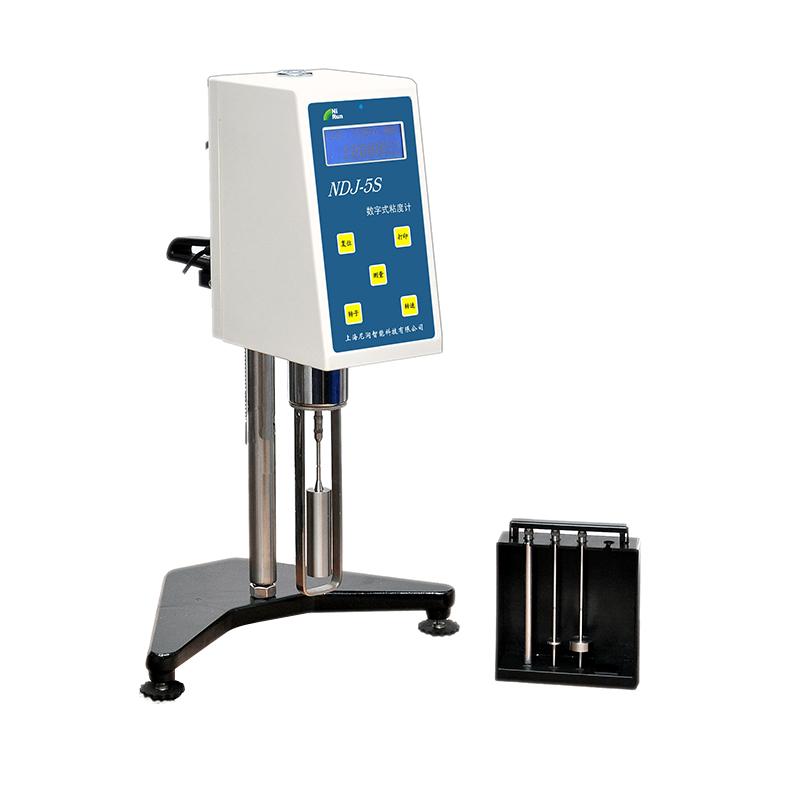

NIRUN NDJ-5S Digital Rotational Viscometer with No. 0 rotor

NIRUN NDJ-5S digital Viscometer includes ultra-low Viscosity adapter No. 0 rotor, which can measure the Viscosity value in the range of 1 to 2 million cp. It is used for Viscosity testing of Printing ink, glue, latex, oil, juice and other samples. The NDJ-5S Digital Rotational Viscometer adopts key operation and has a built-in over-limit alarm sound prompt function.
Certificate
Contact
Details SPEC
Similar products

NiRun NDJ-5S + No. 0 rotor Digital ViscometerSPEC

NiRun NDJ-5S + No. 0 rotor Digital ViscometerDetails

NiRun NDJ-5S + No. 0 rotor Digital ViscometerPacking list

SKU
NB028752
Display
LCD liquid crystal with blue backlight
Measuring range
10~100000mPa·s
Rotor Specifications
0#、1#、2#、3#、4#
Rotor speed
6/12/30/60rpm
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%
Power
AC100-240V，50Hz/60Hz，DC17V1.2A
Data Interface
RS232
Weight
9.6kg
Collection method
continuous acquisition
Encasement material
Five-layer cardboard
Capacity
300~400ml
Capacity
400Ml (self-prepared)
Lifting system
PE lifting system
Bearing system
ruby
Torque material
beryllium bronze
Control system
microcomputer
Encasement
aluminum alloy
NDJ-5S + No. 0 rotor
Digital Viscometer
NIRUN NDJ-5S Digital Rotational Viscometer with No. 0 rotor Picture

Technical advantages

  1. Stepper motor direct drive, no gear, accurate speed

  2. LCD liquid crystal with blue backlight, displaying a large amount of information

  3. It can display the maximum viscosity value that the rotor can measure at the current speed.

  4. Measurement Timing Function

  5. Viscosity value shows continuous change

  6. There is an alarm sound prompt when the measurement range is exceeded

  7. Computer full range linear calibration

  8. AC power adapter 100V-240V, good anti-interference

Application

NDJ-8S digital viscometer is suitable for ink, glue, latex, solvent-based adhesive, polymer solution, petroleum, paint, solvent, cosmetic, milk product, medicine, fruit juice and so on.

Pictures

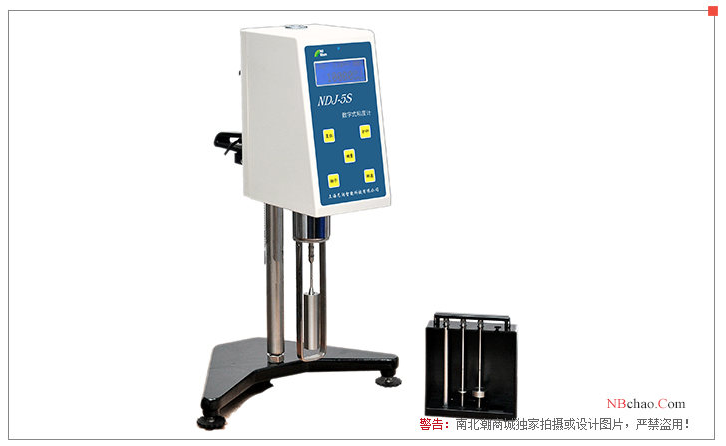

NIRUN NDJ-5S+No.0 Rotor Digital Viscometer Details Figure 1

Optional

micro printer

Special viscosity constant temperature Water Tank

RTD temperature probe

standard oil

remote control

Application

Inks, glues, latex, solvent-based adhesives, polymer solutions, petroleum, paint coatings, solvents, cosmetics, milk products, pharmaceuticals, fruit juices, and more.

FAQ
QHow many rotors does the NIRUN NDJ-5S digital rotational viscometer have?
A Hello, it is equipped with 0 #, 1 #, 2 #, 3 #, 4 #, and five rotors.
QMeasure the viscosity of latex, is this Viscometer suitable?
A Latex viscosity can be measured, please pay attention to choose the viscosity range suitable for your sample.
