Specifications
| Display | Backlit LCD display |
| Measurement range | 1~2000000mPa·s |
| Rotor specification | 1#、2#、3#、4# |
| Rotor speed | 0.3/0.6/1.5/3/6/12/30/60rpm |
| Reproducibility | ±0.5%F.S |
| Measurement Accuracy | ±1%F.S |
| Power | 110~230V 50Hz/60Hz |
| Interface | R232C Communication interface one, temperature sensor interface one, power jack one |
| Dimensions | 300*300*450mm |
| Weight | 5kg |
| Display information | Automatic display of the maximum viscosity value measurable by the selected combination of rotor and Rotation speed |
| Automatic scan function | According to the viscosity value of the test sample, a better Rotor speed combination can be automatically prompted |
| Temperature range | RT+10~100℃ |
| opening size | 75Mm round hole |
| Applicable beaker | 400mL high beaker |
Packing list

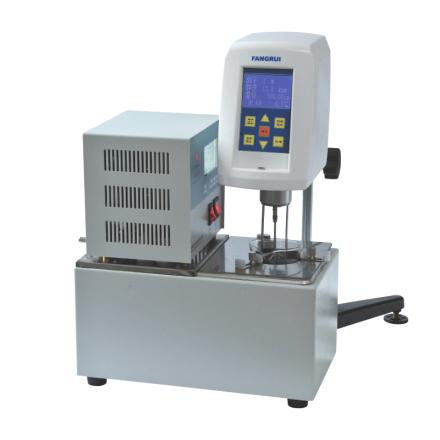

NDJ-8S Viscometer complete set x1, HCH1006 Thermostatic bath X1, manual X2, certificate X2, warranty card X2
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/28767/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
