BENTING CBGDW-150L low/high Temperature Test Chamber -40 ℃/150L

SE
BENTING CBGDW-150L low/high Temperature Test Chamber temperature control as low as -40 ℃, up to 150 ℃, Interior volume is 150L, CBGDW-150L adopts binary cascade refrigeration method, the inner box size is 500 * 600 * 500mm.
Model：
Certificate
Contact
Details SPEC Con
Similar products

BenTing CBGDW-150L Low/high Temperature Test ChamberSPEC

BenTing CBGDW-150L Low/high Temperature Test ChamberDetails

BenTing CBGDW-150L Low/high Temperature Test ChamberPacking list

SKU
NB028778
Temperature range
-40~150℃
Interior size
500*600*500mm
Temperature fluctuation
≤0.5℃
temperature error
≤ +/- 1 ℃ (the average temperature of the displayed value of the studio temperature Controller minus the measured average temperature at the center point)
Temperature Uniformity
≤2.0℃
Heating rate
3℃/min
Cooling rate
0.75~ 1 ℃/min (non-linear no-load)
Humidity Deviation
±2.5%RH
Humidifier power
2.5KW
Operating Mode
-40 ℃~ -70 ℃ adopts binary cascade refrigeration method
Refrigeration system
Fully enclosed low noise rotary compressor
Refrigeration system
Air-cooled type: external fin internal thread tube heat exchanger (water-cooled type: shell and tube heat exchanger)
Interior Volume
150L
Dimensions
1000*1650*1050mm
Weight
250kg
Prohibit testing products
Prohibition of testing of products that may produce flammable, explosive, volatile, highly toxic, corrosive and radioactive substances
CBGDW-150L
Low/high Temperature Test Chamber

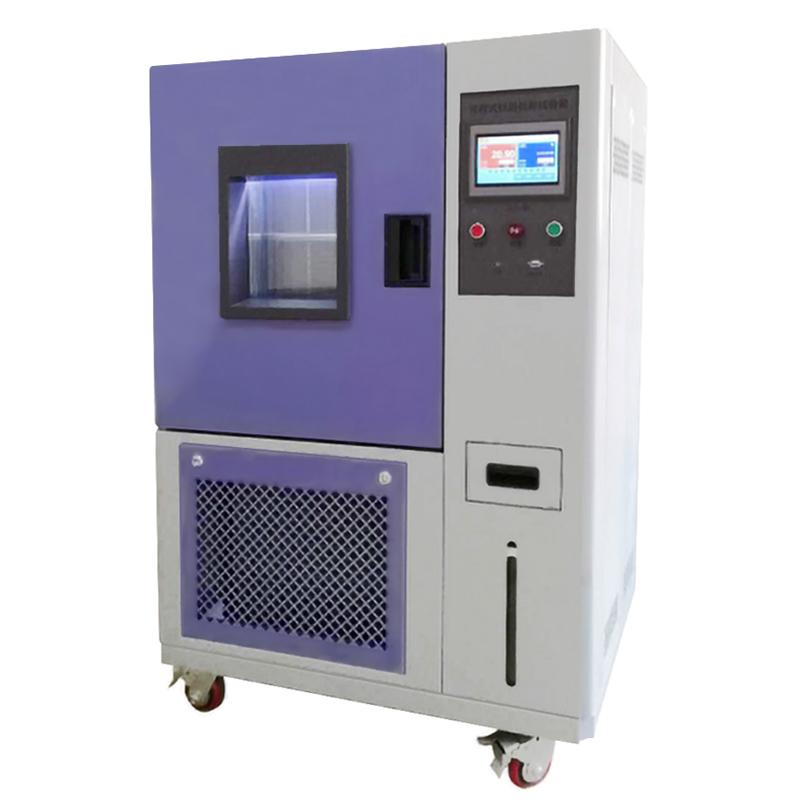

BENTING CBGDW-150L low/high Temperature Test Chamber -40 ℃/150L Picture

Features

1. Enclosure Material: cold plate baking paint

2. Inner wall material: good mirror stainless steel plate

3. Box insulation material: glass fiber

4. Single hinged door (left hinge, right handle when facing the cabinet), equipped with observation window, lighting, window frame/door frame anti-condensation electric heating device

5. Control panel: controller display screen, U disk interface, RS232 computer communication interface, power switch, status indicator light and sound and light alarm device

6. Unit: refrigeration unit, water tray, drain hole, condensing fan, condenser air inlet, water supply tank

7. Power distribution: IO board, machine tool transformer, ballast, intermediate relay, solid state relay, AC contactor, thermal relay, fuse, under-reverse phase relay, air switch

8. The control system automatically adjusts the energy-saving Operating Conditions of the refrigerator according to the test conditions

9. The cooling capacity of the evaporator is switched by the solenoid valve driven by the control system

BGDW series high-low temperature Test Chamber parameter pair

modelBGDW-80LBGDW-100LBGDW-150LBGDW-225LBGDW-408LBGDW-800LBGDW-1000L
-20°C, -40°C, -70°C-20°C, -40°C, -70°C-20°C, -40°C; -70°C-20°C, -40°C; -70°C-20°C, -40°C, -70°C-20°C, -40°C, -70°C-20°C, -40°C, -70°C
temperature range-20°C: -20°C～+150°C -40°C: -40°C～+150°C -70°C: -70°C～+150°C
temperature fluctuation≤0.5°C (temperature fluctuation is half of the difference between the highest temperature and the lowest temperature measured at the central point)
temperature error≤±1°C (the average temperature displayed by the studio temperature controller minus the average temperature measured at the central point)
temperature uniformity≤2.0°C (The temperature uniformity is the arithmetic mean of the difference between the highest temperature and the lowest temperature measured in each test)
Heating time3°C/min (non-linear no-load)
cooling time0.75~1℃/min (non-linear no-load)
Relative Humidity error±2.5%RH
Humidifier power2.5KW
Way of workingThe 0℃~-40℃ model adopts one-stage compression, and the -40℃~-70℃ adopts a two-element cascade refrigeration method
Refrigeration CompressorsFully enclosed low noise rotary compressor
condenserAir-cooled type: external fin and internal thread tube heat exchanger (water-cooled type: shell-and-tube heat exchanger)
Internal volume80L100L150L225L408L800L1000L
Inner box size W*H*D400*500*400500*500*400500*600*500600*750*500800*850*6001000*1000*8001000*1000*1000
Outer box size W*H*D900*1580*9501000*1580*9501000*1650*10501100*1800*10501300*1900*11501500*2050*13501500*2050*1550
Weight KG200230250300400600700
Do not test productIt is forbidden to test products that may produce flammable, explosive, volatile, highly toxic, corrosive and radioactive substances


FAQ
QAre all low/high temperature test chambers available for inspection in the GB/T10589 standard?
A Not necessarily, but this CBGDW-150L low/high temperature test chamber can be considered.
