TAISITE WGL-30B Vertical Forced Air Drying Oven 30L

TAISITE WGL-30B vertical Forced Air Drying Oven is an experimental Forced Air Drying Oven with a volume of 30L and an inner size of 310 * 310 * 310mm. WGL-30B adopts digital tube dual-column PID, which has fixed value operation, timing operation and automatic stop function.
Model：
Certificate
Contact
Details SPEC VIDEO CAT OI
Similar products

TaiSiTe WGL-30B Forced Air Drying OvenSPEC

TaiSiTe WGL-30B Forced Air Drying OvenDetails

TaiSiTe WGL-30B Forced Air Drying OvenPacking list

SKU
NB028801
Convection mode
Double duct forced convection
Temperature range
RT+10~300°C
Temperature Resolution
0.1℃
Temperature Fluctuation
±1 ℃
Temperature Uniformity
±2.5%
Chamber material
stainless steel plate
Enclosure Material
Cold rolled steel plate, surface resistance painting
Thermal insulation material
aluminum silicate fiber
Heating mode
Stainless steel heating tube
Input Power
0.8Kw
Exhaust port
Inner diameter 28mm * 1, top
thermostat
Type B: digital tube double row PID; Type BE: liquid crystal double row PID
Temperature setting
Tap the four-button settings
Temperature representation
Type B: Measuring temperature display: 4-digit digital upper display; setting temperature display: 4-digit digital lower display
Timer
0~9999Min (with Timer waiting)
Run function
Fixed value operation, Timer operation, automatic stop
Program Mode
optional
Additional features
Deviation correction, menu button lock, power outage compensation, power outage memory
Temperature sensor
pt100
Safety Devices
Overrise alarm
Interior size
310*310*310mm
Dimensions
445*440*690mm
Packing size
570*570*820mm
Volume
30L
Load per shelf
15kg
Shelf (std.)
6pcs
Shelf spacing
35mm
Power
AC220V/3.6A（50/60Hz）
Net Weight
37kg
Shelf (std.)
2pcs
Shelf (std.)
4pcs
Gross Weight
32Kg
WGL-30B
Forced Air Drying Oven

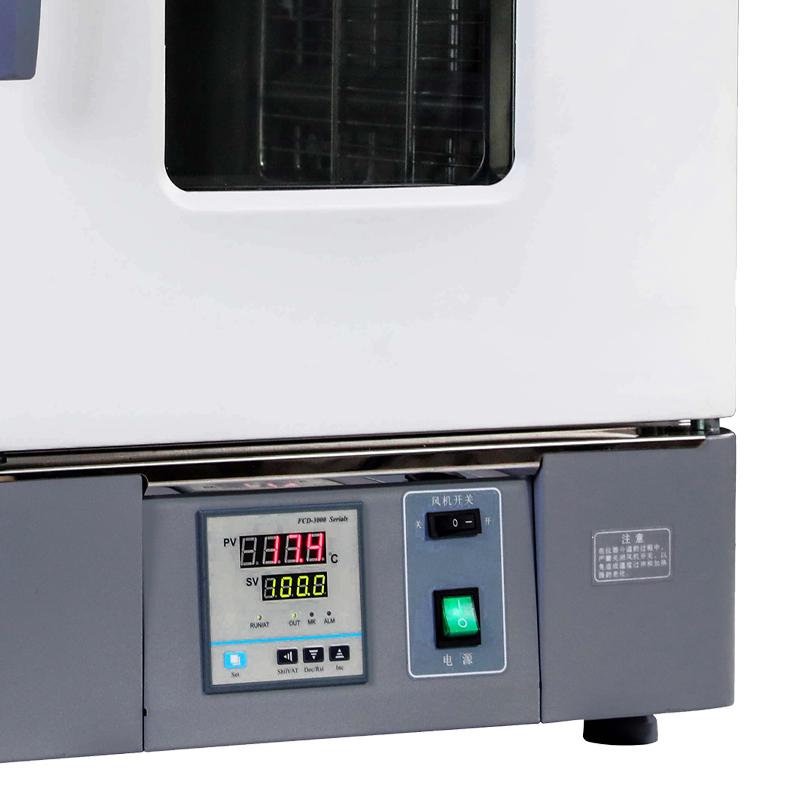

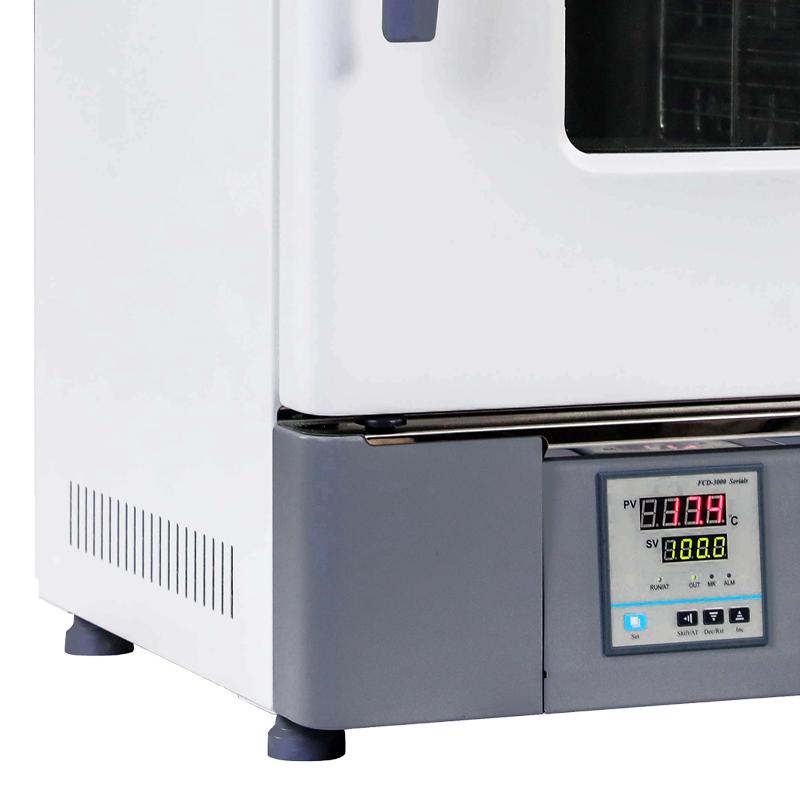

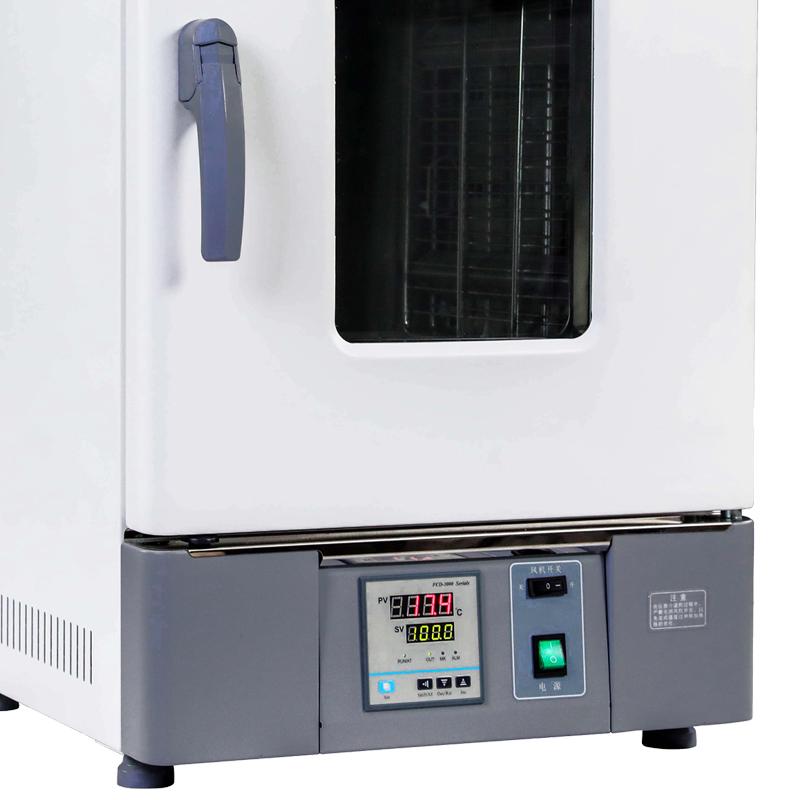

TAISITE WGL-30B Vertical Forced Air Drying Oven 30L Picture

Features

  • High precision, high efficiency, safety, wide range.

  • Convenient operation, fixed value operation, timed operation, automatic stop.

  • Dedicated function keys enable temperature setting.

  • Auxiliary menu, to achieve over-rise alarm, deviation correction, menu locking.

  • Vertical double air duct air jacket, turbine centrifugal forced air supply, more uniform temperature.

  • Speed-controlled fans enable the use of lightweight, fine, powdery samples.

  • The forced fan heat dissipation and air intake structure makes the maximum working temperature of the fan < 50°C, and the operation is long-lasting for a long time.

  • Patent No.: ZL201230310211.7 / ZL201320059701.3

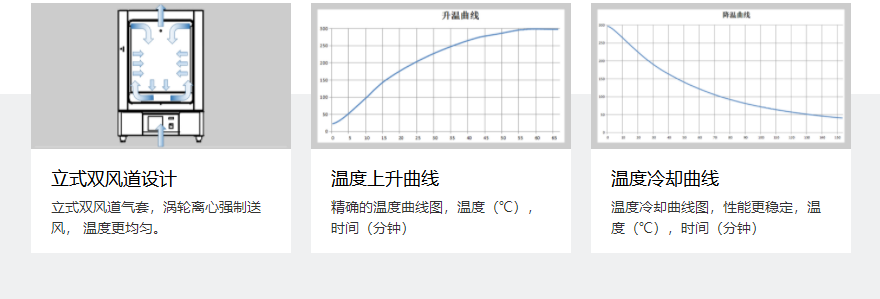

Tester WGL-30B Forced Air Drying Oven Details Figure 1

Detailed function display

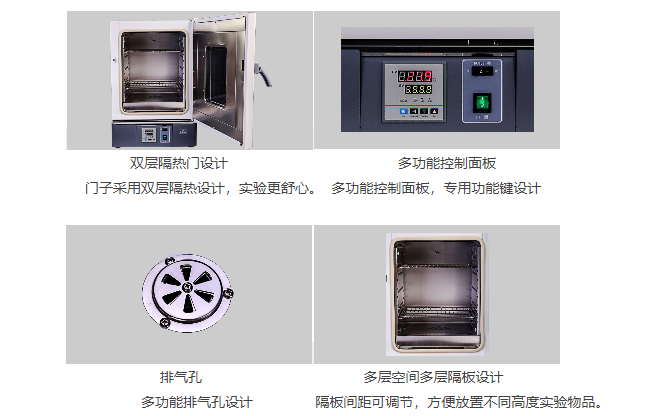

Tester WGL-30B Forced Air Drying Oven Details Figure 2

Parameter comparison

ModelpowerContent volume
WGL-30B/WGLL-30BE0.8KW30L
WGL-45B/WGLL-45BE1.2KW45L
WGL-65B/WGLL-65BE1.6KW65L
WGL-125B/WGLL-125BE2.3KW125L
WGL-230B/WGLL-230BE3KW230L
WGL-625B/WGLL-625BE5.0KW625L
Other parameters
mannerDual air ducts force convection
Operating temperature range RT+10～300℃
Temperature resolution0.1℃
Temperature fluctuations±1 ℃
Temperature distribution accuracy±2.5%
Built-inStainless steel plate
ExteriorCold-rolled steel plate, surface resistance * quality coating
Insulating materialsAluminum silicate fiber
Temperature control methodType B: Digital tube double-row PID;BE type: LCD double-row PID
Temperature setting methodTap the four buttons to set it
Temperature representationType B: Measured temperature display: 4-digit digital upper display, set temperature display: 4-digit digital lower display
BE type: Measured temperature display: liquid crystal upper display, set temperature display: liquid crystal lower display
timer0~9999 minutes (with timed waiting function)
Run the functionFixed-value operation, timed operation, automatic stop
Program modeMatching
Additional featuresDeviation correction, menu button locking, power failure compensation, power failure memory (BE type: Overlift preventer)
sensorpt100
Safety devicesOverlift Alarm (BE Type Overlift Arrester)
power supplyAC220V/3.6A 50/60Hz
FAQ
QCan TAISITE WGL-30B be programmed to heat up?
A Optional program temperature control function
QDoes this drying oven comply with GB/T16777 standard?
A The blast drying oven is suitable for GB/T16777, please consult customer service for detailed application definition
