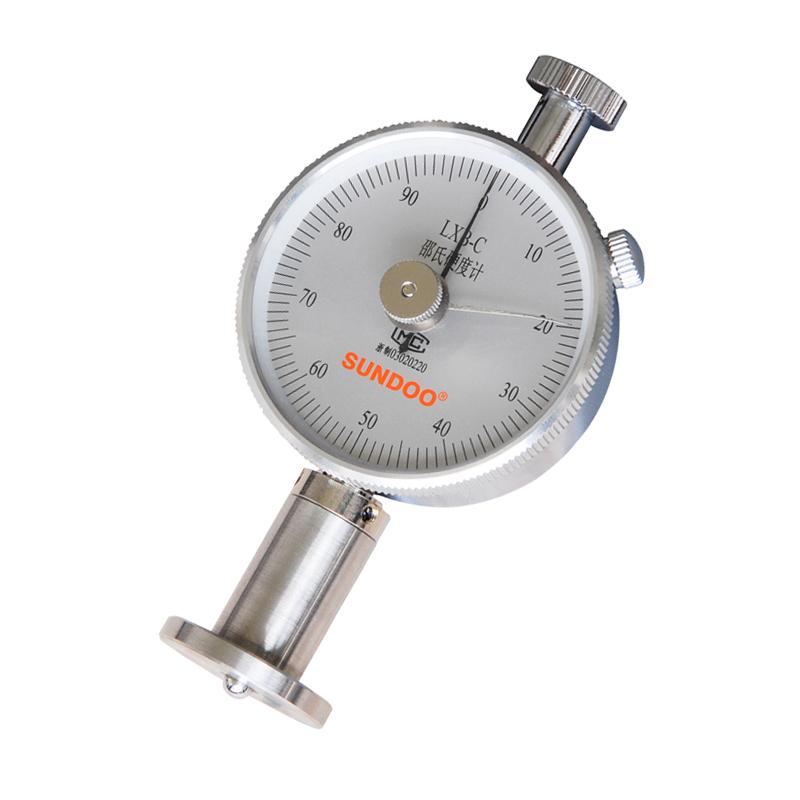

SUNDOO LXB-C Sponge Shore Durometer Low Hardness Rubber and Sponge and Foam Testing

LXB-C

Hardness Gauge

Measurement range 0~2.5mm, Measurement range 0~100HC, Measurement range 10~90HC, measurement error +/- 1HC, head size SR2.5mm.

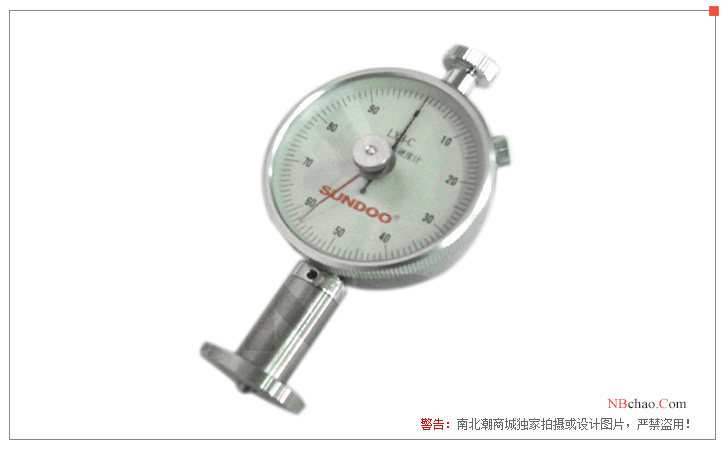

Introduction to the LXB-C Shore Hardness Tester

Shandu Instrument LXB-C sponge Shore Hardness Tester is a low-hardness material Shore Hardness Tester designed with reference to the national standard HG/T2489-2007, and is a two-pointer Shore Hardness Tester. The LXB-C Sponge Shore Hardness Tester has two hands, a black needle (tracking pointer) and a silver needle (peak pointer).LXB-C sponge Shore Hardness Tester is suitable for hardness testing of microporous materials for footwear with a stress of more than 0.049MPa at a compression rate of 50%.

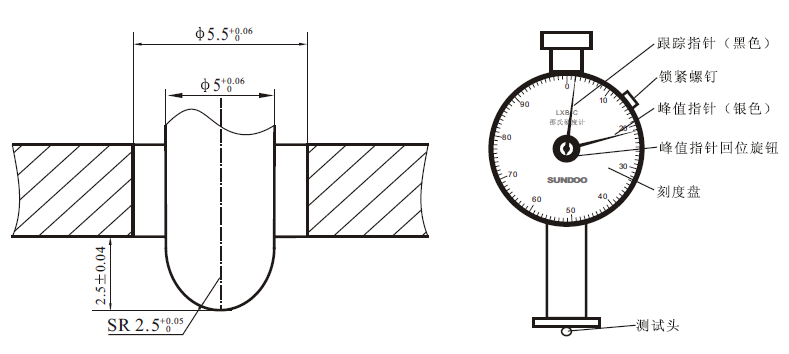

LXB-C sponge Shore hardGauge pressure pin size drawing

LXB-C sponge Shore hardGauge pressure pin display diagram

Packing list：Hardness gauge x1, manual x1, warranty card x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
