SADT SYH-10 Leeb Hardness Tester

SADT Cloud Leeb Hardness Tester SYH-10 basic WeChat Mini Program development, can be synchronized remote detection Hardness detection process, SYH-10 uses Richter Hardness double coil measurement, automatic identification of Impact direction.
Model：
Contact
Details SPEC VIDEO CAT OI

SADT SYH-10 Leeb Hardness TesterSPEC

SADT SYH-10 Leeb Hardness TesterDetails

SADT SYH-10 Leeb Hardness TesterPacking list

SKU
NB028962
Error of indication
±0.3%@HL=800/±2HL
Impact direction
automatic
Hardness system
HL/HRC/HRB/HB/HV/HSD/HRA
Measurement range
170~960HLD、17~70HRC、13~109HRB、20~655HB、80~940HV、32~99.5HSD
Impact device
D type
Measurement material
Carbon steel and cast steel/alloy tool steel/stainless steel/gray cast iron/ductile cast iron/cast aluminum/brass/bronze/pure copper
statistics
Automatic Calculation of Max, MIN Minimum, Average
Adjustment
Users can calibrate themselves
Communication interface
Bluetooth 4.2 version
Data storage
Cloud storage
Low Voltage prompt
APP
Automatic shutdown
automatic
Power Supply
3.7V lithium-ion rechargeable battery, USB charging
Operating temperature
-20~+45℃
Dimensions
148*22*25mm
Net Weight
67g
meet the standard
Compliant with GB/T 17394-1998, ASTM A956 standards
SYH-10
Leeb Hardness Tester

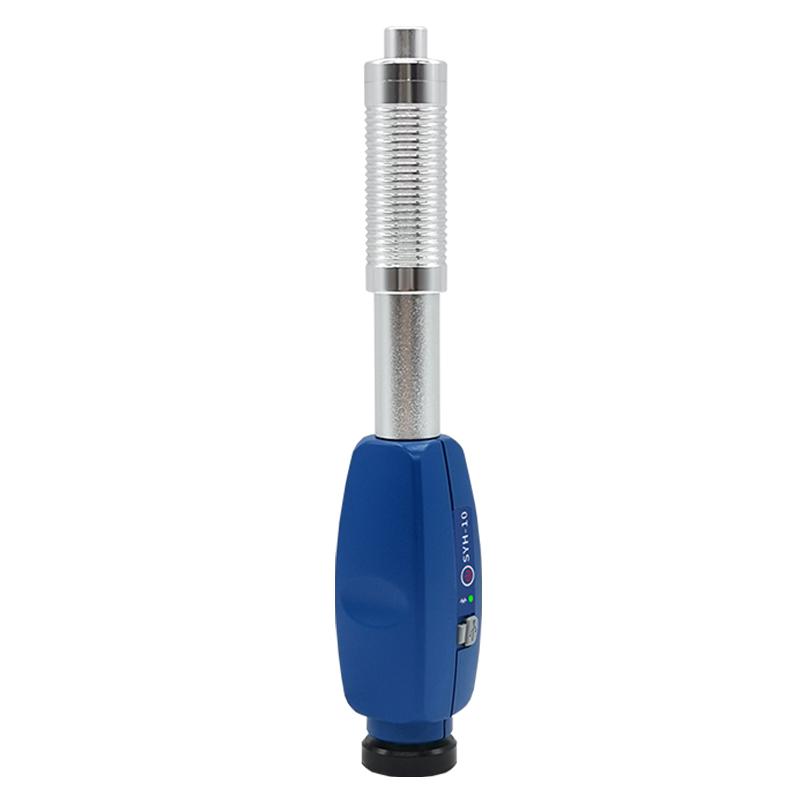

SADT SYH-10 Leeb Hardness Tester Picture

Introduction

The SYH-10 Leeb Hardness Tester is developed based on the WeChat applet, and all its operation interfaces are implemented on the mobile phone. SYH-10 provides users with a convenient way to measure hardness, and at the same time stores the measurement data in the cloud, which is convenient for data viewing and sharing. What's more, the SYH-10 cloud Hardness Tester can share the testing process with other users, and the shared users can monitor the hardness testing process synchronously in different places. In the framework of data storage, the workpiece can be subjected to multiple hardness treatments and data storage, for example, a single component can be heat treated multiple times, and different processing processes require different hardness values. It is also possible to measure the hardness of different parts of a large workpiece and store the test results, and it is also possible to store batch parts by the number of pieces. In addition, all the test data can be generated into a corresponding test report, which can be shared and printed by the user. If necessary, you can also insert picture information such as photos of the workpiece, and you can also customize personalized applications for users.

Features

  • Data cloud storage/view and download anytime, anywhere

  • Data reports are shared off-site

  • Measurement geo-synchronous display

  • Centralized management of multiple measurement data

  • The data structure is suitable for multiple hardness treatments

  • WeChat applet display

  • It does not occupy mobile phone resources and does not obtain personal privacy

  • Dual-coil technology - high precision

  • Automatic compensation of test direction

Product structure diagram

SADT SYH-10 Richter Hardness Tester Detail Figure 1

Applicable Materials

Carbon steel, cast steel, alloy tool steel, stainless steel, gray cast iron, ductile iron, cast aluminum alloy, copper-zinc alloy - brass, copper aluminum alloy - bronze, pure copper.
