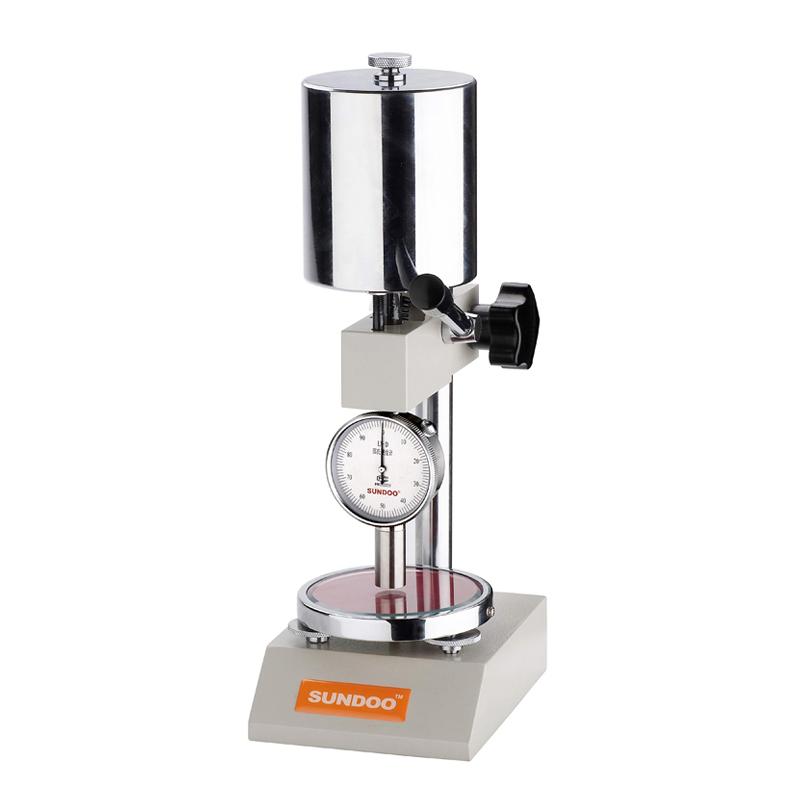

SUNDOO SLX-D Shore Durometer Test Bench Type D Shore Durometer for

SLX-D

Test bench (D type rubber Hardness Gauge)

Fixed load weight Dimension φ 88x101mm, mass 4.47 +/- 0.1kg, Hardness Gauge clamping rod connection size M7x0.5mm, can be matched with Hardness Gauge D type.

Introduction of SLX-D Shore Hardness Tester Test Bench

SUNDOO Instruments SLX-D Shore Hardness Tester Test Bench is a test bench used with D-type Shore Hardness Tester, which can effectively improve the accuracy of the Hardness Tester for rubber hardness. The weight on the axis of the Hardness Tester indenter of the SUNDOO Instrument SLX-D Shore Hardness Tester applies pressure to the D-type Shore Hardness Tester indenter, so that the indenter of the Hardness Tester is on the sample, so as to achieve stability and accurate hardness values.

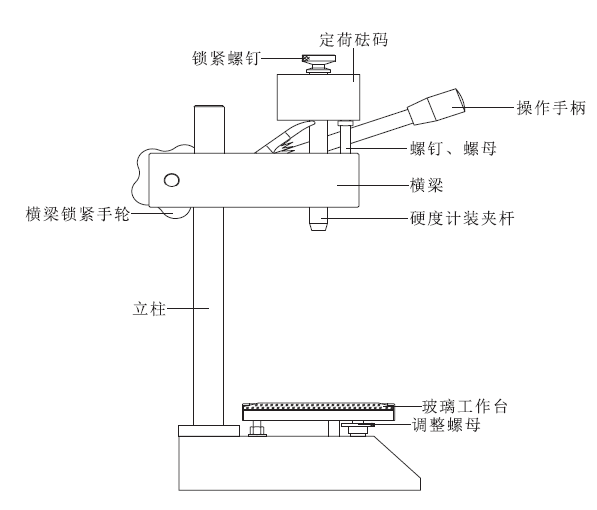

SLX-D Shore Hardness Tester test bench structure diagram

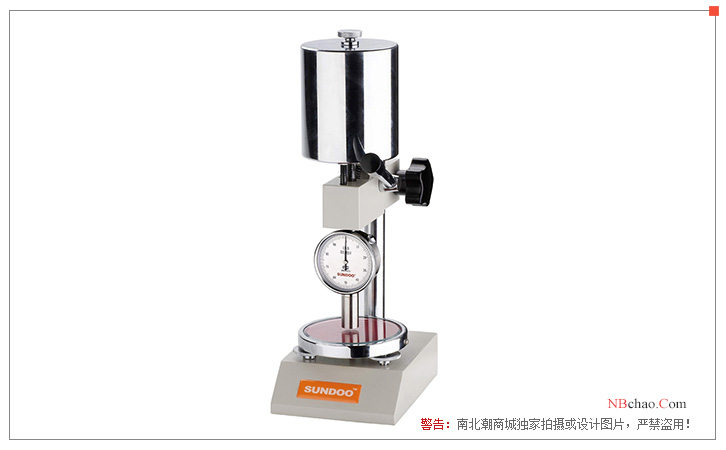

SLX-D Shore Hardness Tester test bench display

Precautions

1. There should be no vibration on the test bench of the SLX-D Shore Hardness Tester, and the Hardness Tester is pressed against the sample at a maximum speed of 3.2mm/s.

2. The adjustment of the requirements for the test sample should be carried out according to the corresponding standard of the sample.

3. GB/T531.1-2008 stipulates that the total mass of the weight of the spring test force and the Shore Hardness Tester is about 5kg for Type D.

Packing list：Hardness rack x1, weight x1, manual x1, warranty card x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
